Boeing 707 - BACT12 AW, BACT12 AY, and BACT13 K, BACT13 L, BACT13 T Copalum Terminal Part Numbers

B. BACT12AW, BACT12AY, and BACT13K, BACT13L, BACT13T Copalum Terminal Part Numbers
Table 3
BACT() COPALUM TERMINAL LUG PART NUMBERS
Boeing Part
Number
Configuration
Number of Stud
Holes
Reference
Supplier
Figure Table
BACT12AW
Dual Hole, 90 Degree,
Bent Tongue
2 Figure 7 Table 4 Tyco/AMP
BACT12AY
Dual Hole, Ring
Tongue, Flag
2 Figure 8 Table 4 Tyco/AMP
BACT13K Ring Tongue 1 Figure 9 Table 5 Tyco/AMP
BACT13L
Dual Hole, Ring
Tongue
2 Figure 10 Table 6 Tyco/AMP
BACT13T
Dual Hole, Ring
Tongue, Breakaway
2 Figure 11 Table 7 Tyco/AMP

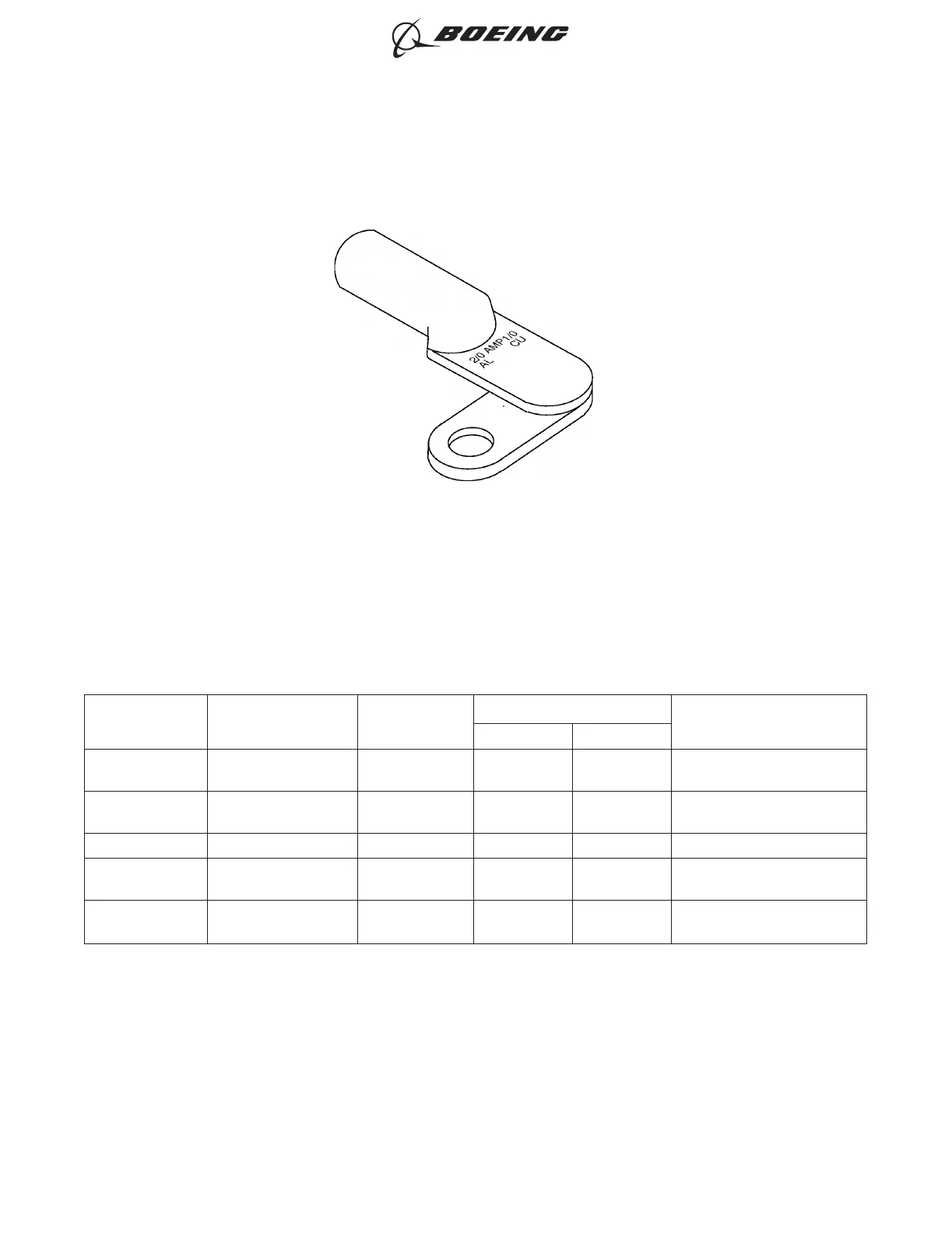

2449229 S00061545642_V1
AMP COPALUM FLAG TERMINAL
Figure 6
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 8
Oct 15/2015D6-54446
