B. Kit Groups P1N1, P2N1, P3N1 or P4N1 - One Class 1 Cable to Two Class 1 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 8.
Table 10
CONNECTIONS
Wire Connetion Wire Connected to
A1 Splice B1 and C1
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
NOTE: The shield material has fused ends that hold the ends of the strands of the shield
together.
(2) If the splice kit has seal inserts and different size solder sleeves:
(a) Put these components on Cable A in this sequence:
• The outer sleeve
• A seal insert, if a build-up sleeve is not specified for the cable
• The small solder sleeve
• The shield material
• The large solder sleeve.
Make sure that:

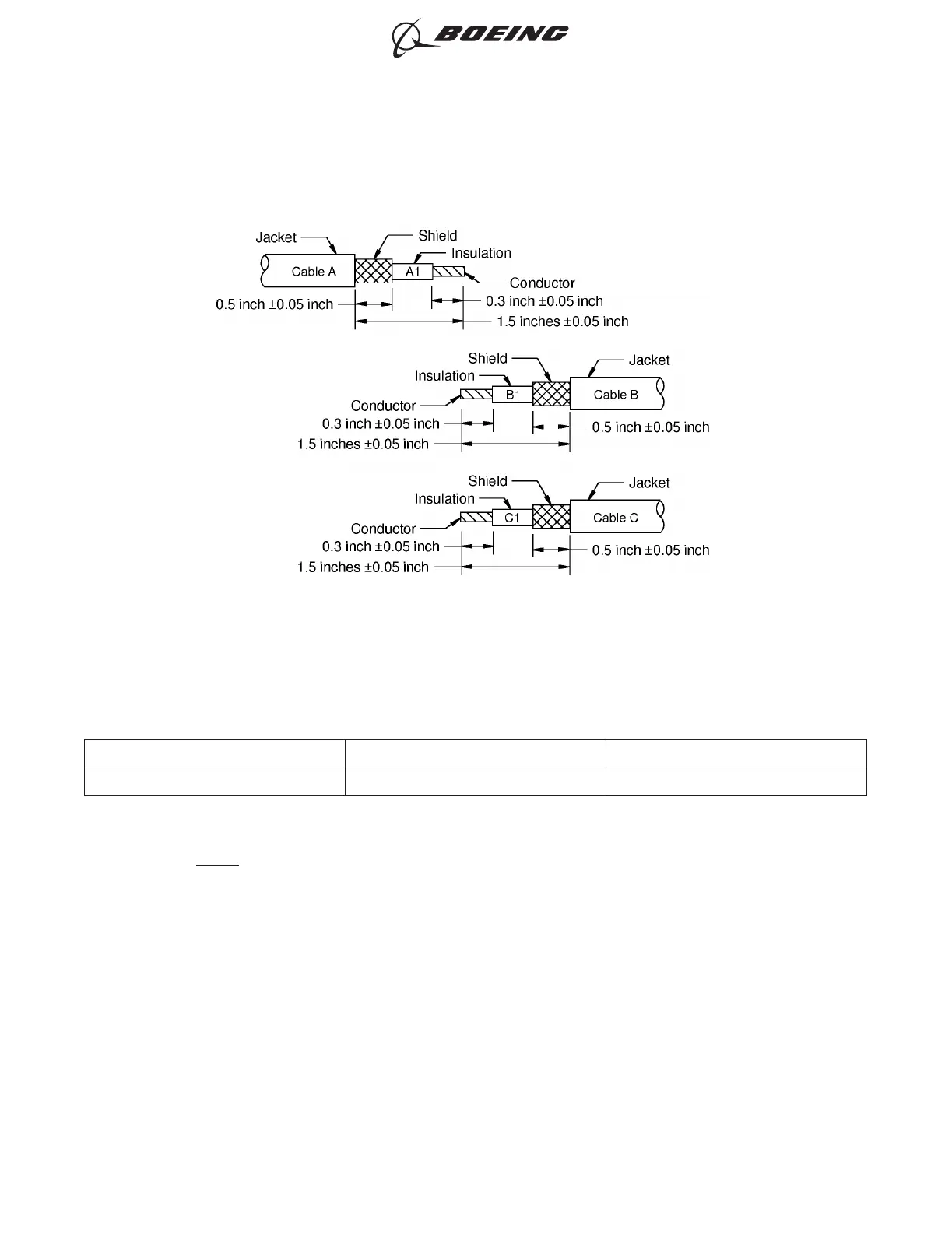

ONE CLASS 1 CABLE TO TWO CLASS 1 CABLES
Figure 8
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 78
Jun 15/2021D6-54446
