Boeing 707 - BACT12 AR Restrictive Entry Terminal Lugs

Table 6 SUPPLIER PART NUMBERS FOR BACT12AL TERMINAL LUGS (Continued)
Boeing Standard Part Number Supplier
BACT12AL18
331457 Tyco/AMP
RF9721 Thomas & Betts
BACT12AL19
1-331457-0 Tyco/AMP
RF9731 Thomas & Betts
BACT12AL2
331458 Tyco/AMP
690-52622-1 Thomas & Betts
BACT12AL3
1-331458-0 Tyco/AMP
RD9361 Thomas & Betts
BACT12AL4
1-331458-1 Tyco/AMP
RD9711 Thomas & Betts
BACT12AL5
331459 Tyco/AMP
RD9721 Thomas & Betts
BACT12AL6
1-331459-0 Tyco/AMP
RD9731 Thomas & Betts
BACT12AL9
331460 Tyco/AMP
690-52622-2 Thomas & Betts
D. BACT12AR Restrictive Entry Terminal Lugs
Refer to Paragraph 2.F. for the procedure to assemble these terminals.
BACT12AR terminal lugs have a wire insulation grip.
One BACT12AR terminal lug can be used to terminate only one wire.
An AWG 26 through AWG 10 wire can be terminated with a BACT12AR terminal lug.
NOTE: A BACT12AC terminal lug is a satisfactory alternative to a BACT12AR terminal lug for AWG 12
and smaller wire. Refer also to Table 9.
2449331 S00061545417_V1

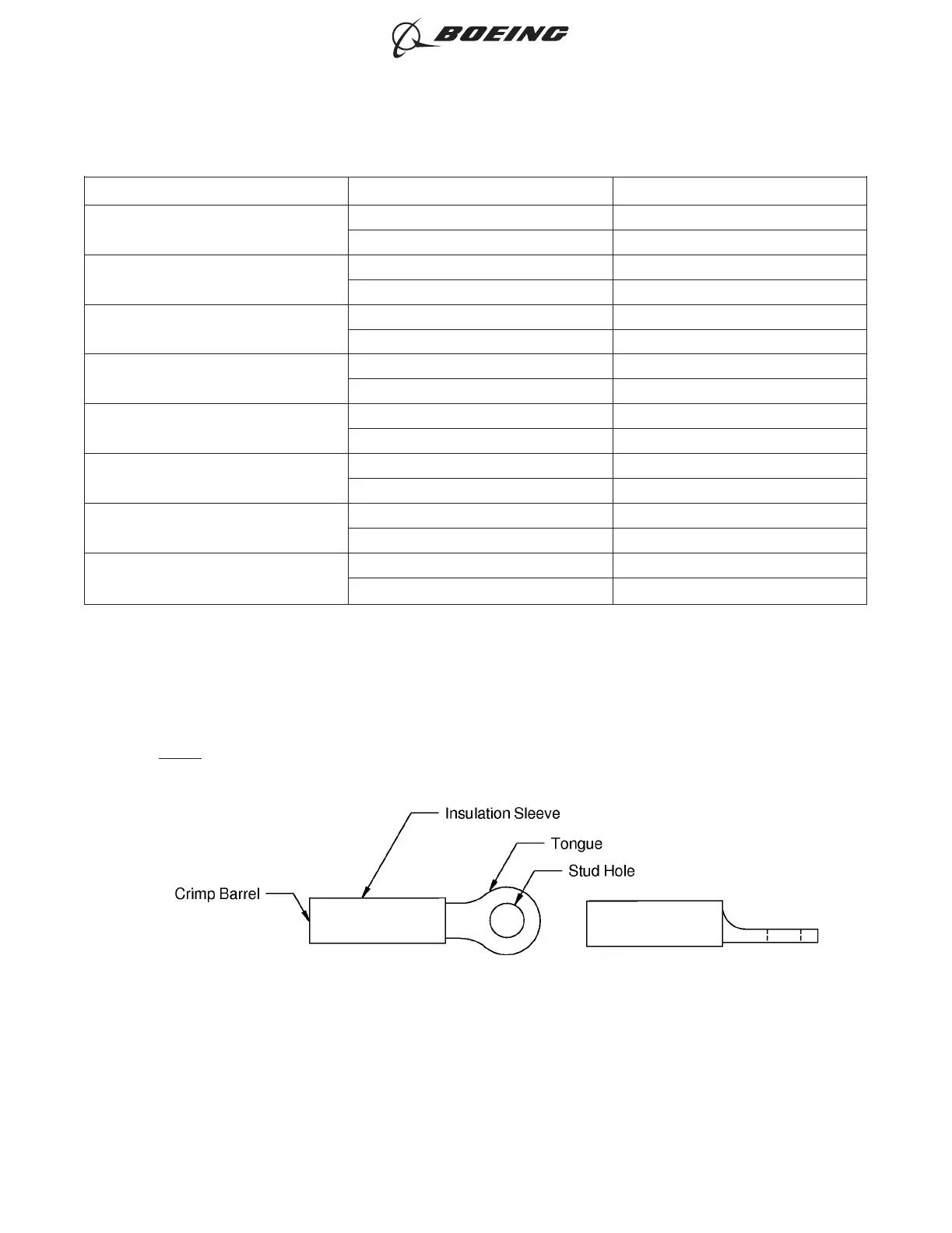

TYPICAL BACT12AR TERMINAL LUG
Figure 4
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 14
Oct 15/2015D6-54446
