E. Sealed Splice Configurations for Shielded Wire and Cable for High Temperature - Solder Sleeve
Splice Kit - One Class 2 Shielded Cable to Two Class 2 Shielded Cables
Refer to Paragraph 16.A. first to start this procedure.
Refer to Figure 304.
(1) Prepare the end of each cable. Refer to Figure 305.

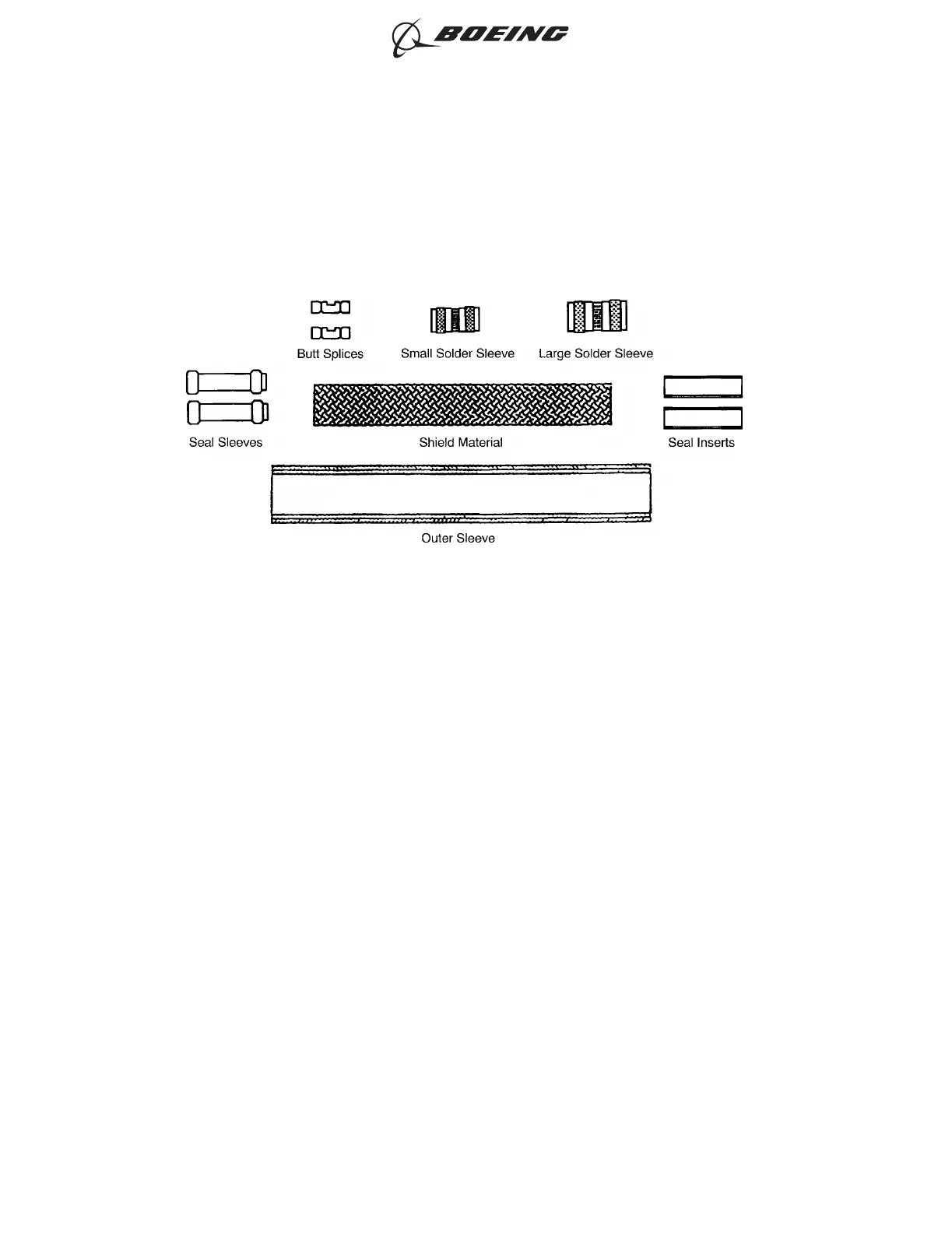

COMPONENTS OF THE RAYCHEM D-150-0253 SOLDER SLEEVE SPLICE KIT
Figure 304
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 346
Jun 15/2021D6-54446
