(7) Put a seal sleeve on Wire C1.
I. Kit Groups P1N2, P2N2 or P3N2 - One Class 2 Cable to One Class 2 Cable and One Class 1
Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 15.

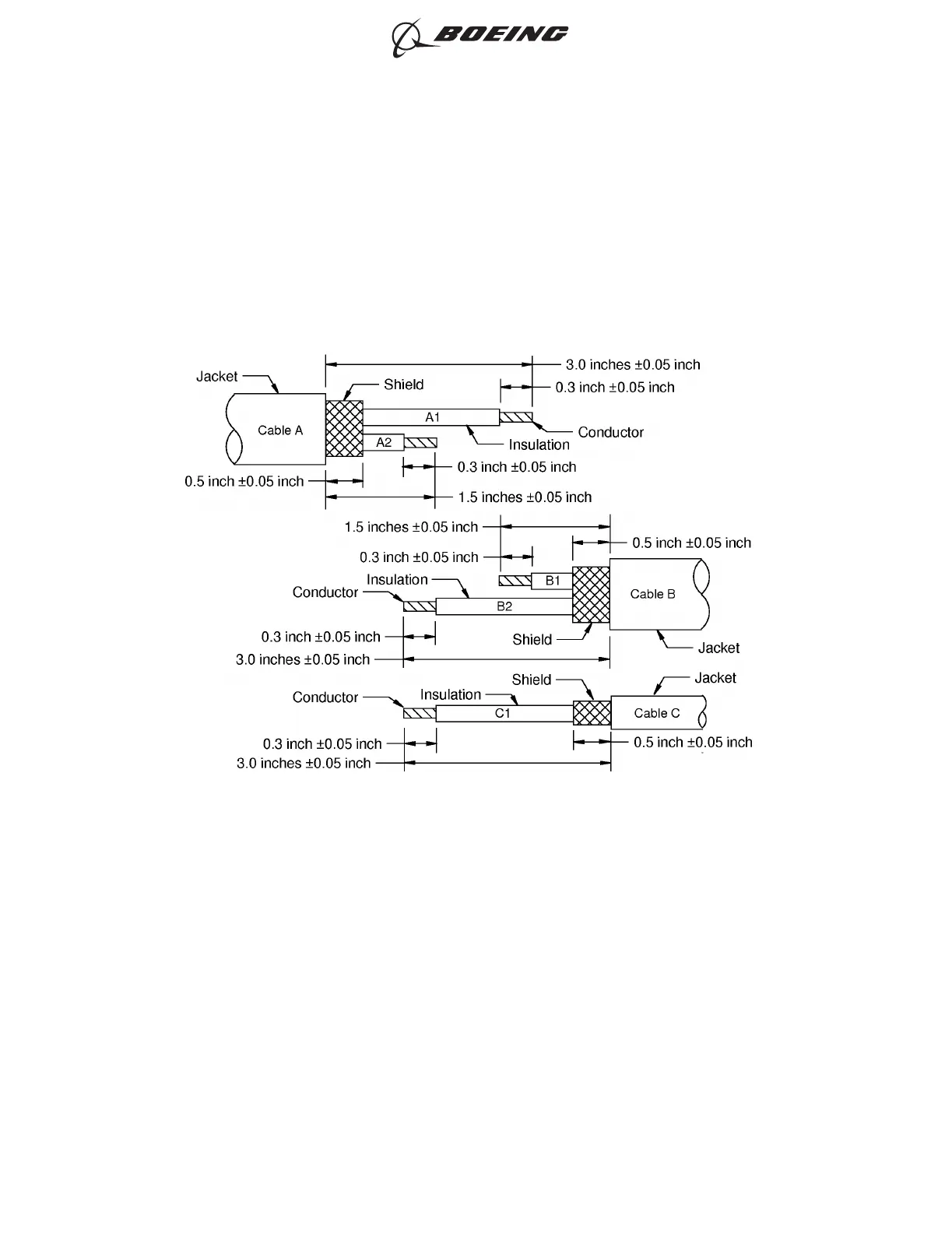

ONE CLASS 2 CABLE TO ONE CLASS 2 CABLE AND ONE CLASS 1 CABLE
Figure 15
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 93
Jun 15/2021D6-54446
