Boeing 707 - Sealed Splice Kits for Unshielded Wire and Unshielded Cable

Table 18 SLEEVE PART NUMBERS FOR BUTT SPLICES (Continued)
Splice
Sleeve
Maximum Number of
Wires for the Seal of
the End
Number of Holes
in the Wire Seal
Part Number Color Stripe Supplier
NAS1387-5
2 1 D-436-73 - Tyco/Raychem
5 4 D-436-40 Yellow Tyco/Raychem
5 5 D-436-39 Red Tyco/Raychem
NAS1387-6
2 1 D-436-73 - Tyco/Raychem
1 1 DWP-125 - Tyco/Raychem
4 4 D-436-40 Yellow Tyco/Raychem
5 5 D-436-39 Red Tyco/Raychem
E. Sealed Splice Kits for Unshielded Wire and Unshielded Cable
2447101 S00061545447_V1

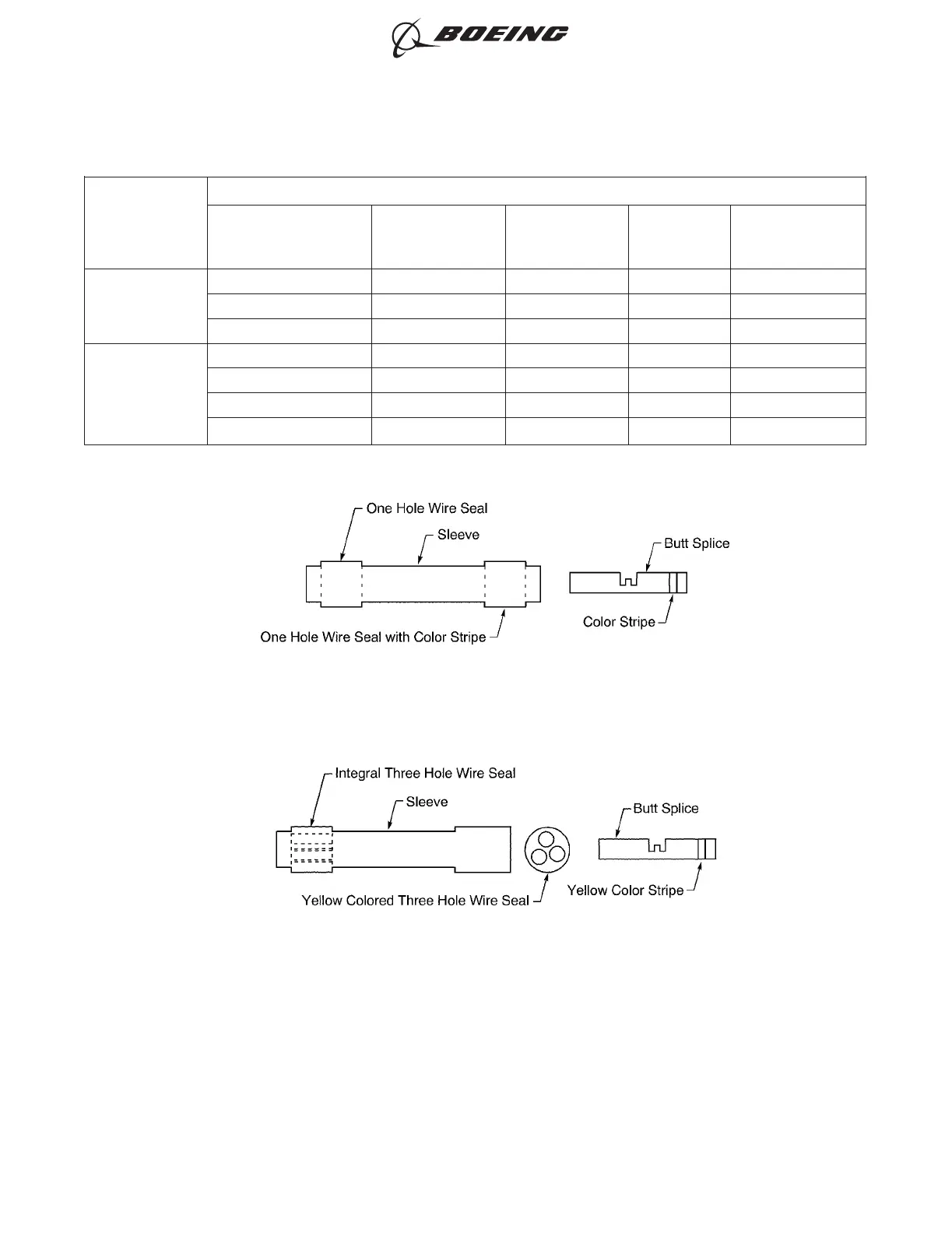

SEALED SPLICE KIT WITH A BUTT SPLICE AND A 1 HOLE WIRE SEAL
Figure 4
2447102 S00061545448_V1
SEALED SPLICE KIT WITH A BUTT SPLICE AND A 3 HOLE WIRE SEAL
Figure 5
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 21
Feb 15/2021D6-54446
