Boeing 707 - Assembly of a Heat Shrinkable End Cap with a Coax Cable; Assembly of a Heat Shrinkable End Cap with a Wire; Assembly of Heat Shrinkable End Caps

CAUTION
DO NOT APPLY MORE THAN THE NECESSARY PRESSURE TO HOLD THE
CAP IN POSITION. DAMAGE TO THE END CAP CAN OCCUR.
(8) Put the end cap on the wire.
Make sure that the end of the wire is against the closed end of the end cap.
(9) Crimp the end cap.
(10) Remove the remaining sealant.
(11) Hold the wire tight and lightly pull the end cap.
(12) If the end cap does not stay on the end of the wire, do Step 3.B.(5) through Step 3.B.(11) again.
4. ASSEMBLY OF HEAT SHRINKABLE END CAPS
A. Assembly of a Heat Shrinkable End Cap with a Wire
(1) Make a selection of a heat shrinkable end cap from Table 4.
Make sure that the cap is the smallest size that can move easily on the wire.
(2) Put the end cap on the wire.
Make sure that the end of the wire is against the closed end of the end cap.
(3) Shrink the end cap into position. Refer to Subject 20-10-14.
B. Assembly of a Heat Shrinkable End Cap with a Coax Cable
(1) Make a selection of a heat shrinkable end cap from Table 4.
Make sure that the cap is the smallest size that can move easily on the cable.
(2) If it is necessary, cut the cable to make the end perpendicular to the longitudinal axis of the cable.
(3) Prepare the cable. Refer to Figure 3.
(a) Remove 0.45 inch ±0.05 inch of the outer jacket.
(b) Fold the shield back against the outer jacket.
2446955 S00061545691_V1

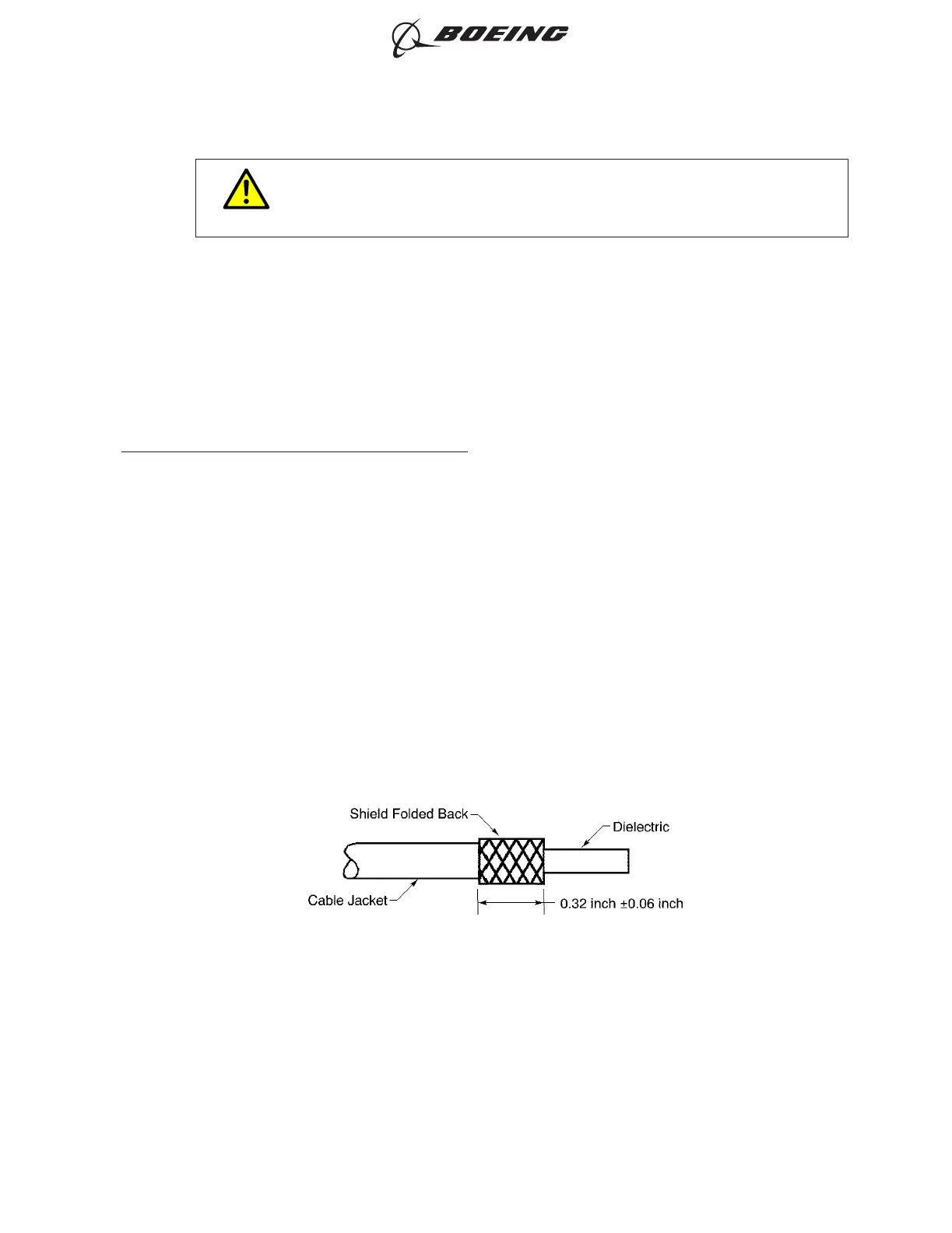

COAX CABLE PREPARATION
