Boeing 707 - Two Class 2 Shielded Cables to Three Class 2 Shielded Cables

Table 121 SPLICE KITS FOR TWO CLASS 2 SHIELDED CABLES TO THREE CLASS 2 SHIELDED
CABLES (Continued)
Jacket Maximum
O.D.
Shield Minimum
O.D.
Conductor CAU Range Solder Shield Splice Kit
Minimum Maximum Part Number Supplier
0.34 0.19 43 138 D-150-0273 Tyco/Raychem
2443656 S00061545578_V1

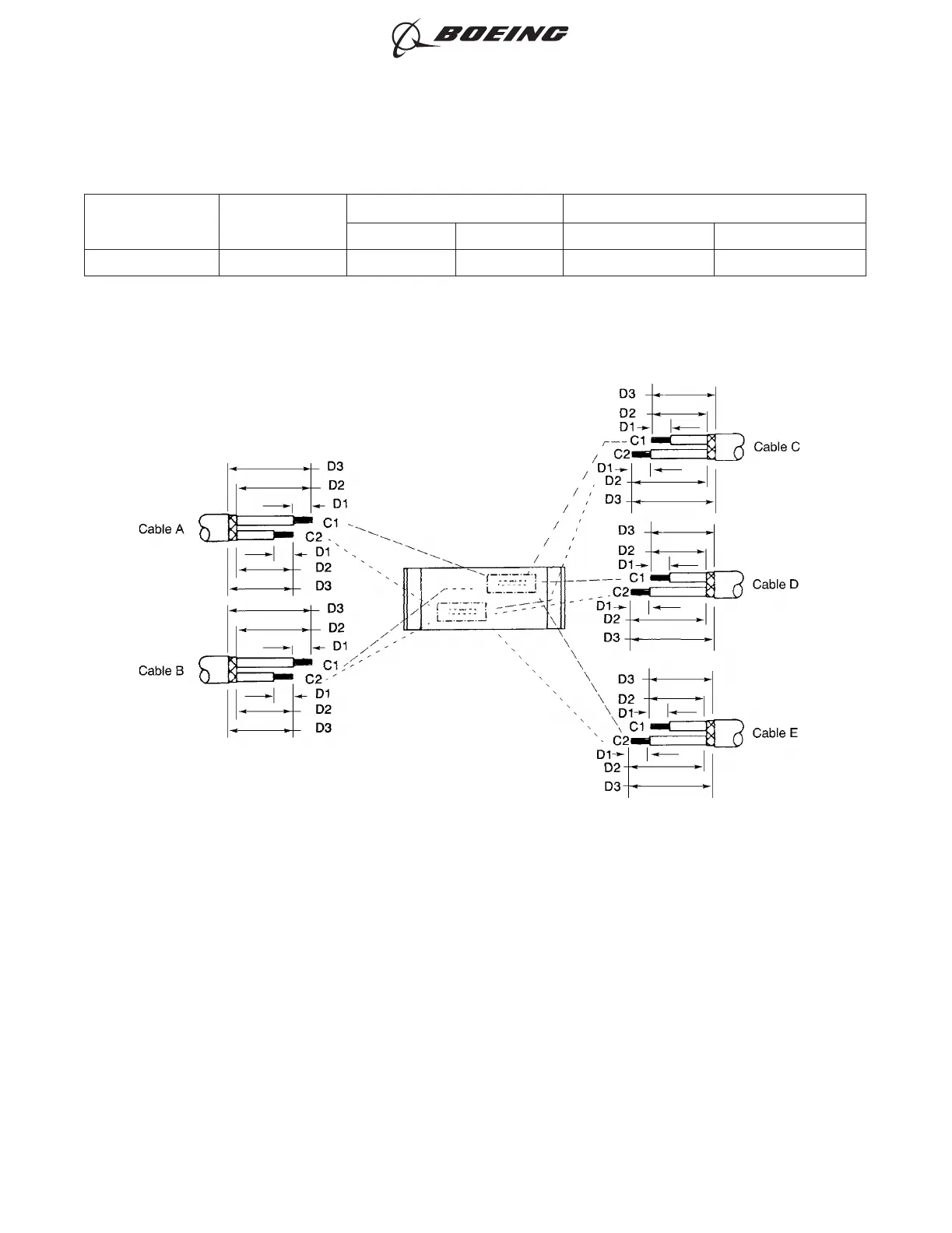

TWO CLASS 2 SHIELDED CABLES TO THREE CLASS 2 SHIELDED CABLES
Figure 284
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 311
Jun 15/2021D6-54446
