Boeing 707 - Splice Kit Component Part Numbers

Table 2 WIRES ON EACH SIDE OF THE SPLICE ASSEMBLY AND THE APPLICABLE SPLICE KIT
(Continued)
Conductor
Splice
Quantity
Wiring on One Side of Splice
Assembly
Wiring on Other Side of Splice
Assembly
Splice Kit
3
BMS13-60T52C03G020
BMS13-60T52C03G020 BACS52P2N3
BMS13-60T52C03G020
3
BMS13-60T52C03G020 BMS13-60T52C03G020
BACS52P2N3
BMS13-60T52C03G020 BMS13-60T52C03G020
3 BMS13-60T52C03G022 BMS13-60T52C03G020 BACS52P2N3
3 BMS13-78T05C03G012 BMS13-60T52C03G016 BACS52P3N3L
3 BMS13-78T05C03G012 BMS13-78T05C03G016 BACS52P3N3L
3 BMS13-78T05C03G014 BMS13-78T05C03G016 BACS52P3N3L
3 BMS13-78T05C03G016 BMS13-60T52C03G020 D-150-0356
3 BMS13-78T05C03G016 BMS13-78T05C03G012 BACS52P3N3L
3 BMS13-78T05C03G016 BMS13-78T05C03G014 BACS52P3N3L
3 BMS13-78T05C03G018 BMS13-60T52C03G020 D-150-0356
4 BMS13-60T49C04G020 BMS13-78T06C04G018 D-150-0355
4 BMS13-78T06C04G018 BMS13-60T49C04G020 D-150-0355
B. Splice Kit Component Part Numbers
2449568 S00061545728_V1

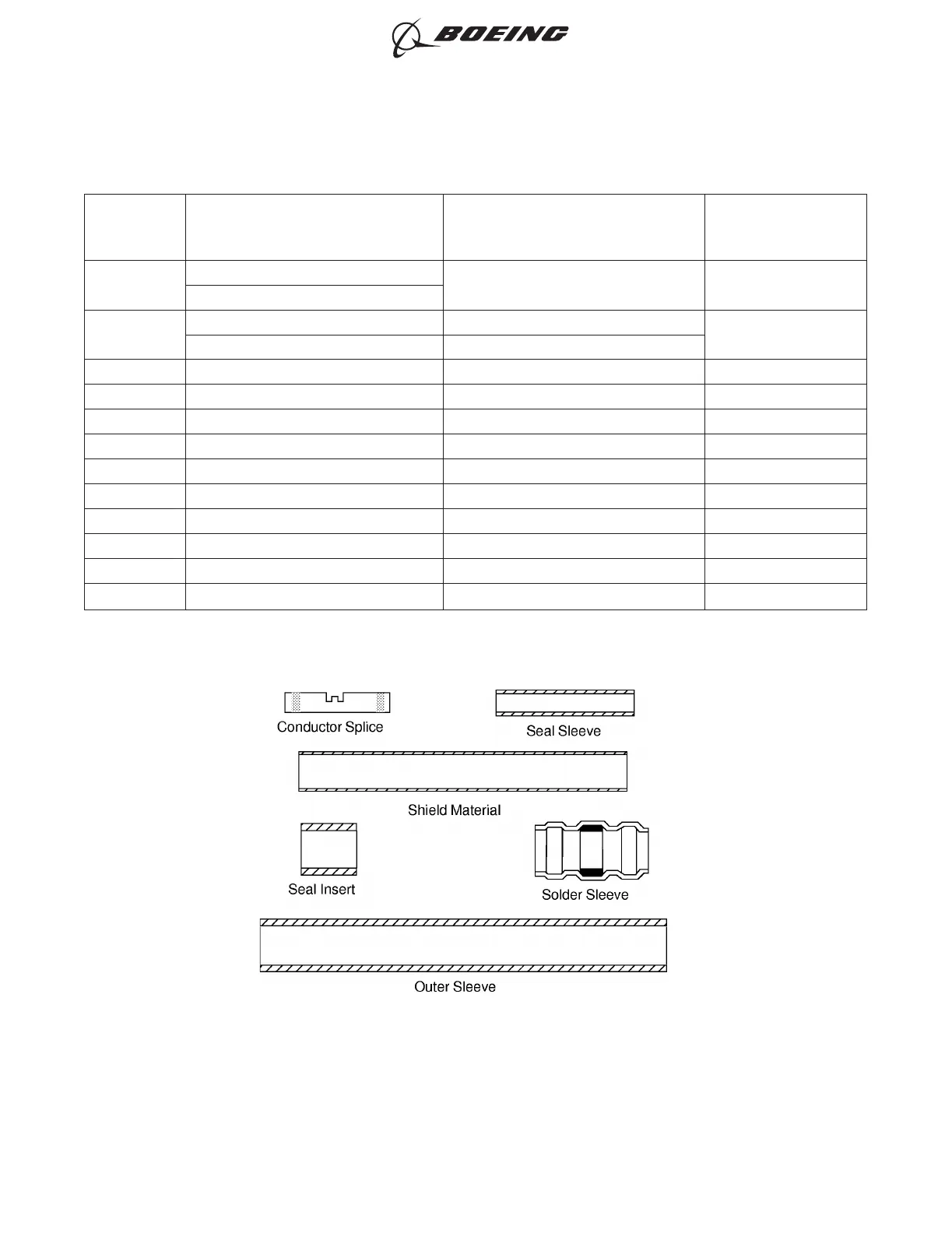

SPLICE KIT COMPONENTS
Figure 2
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
