K. Extension of the Terminal Lug Assembly Insulation - Special Configuration
This procedure is applicable only when it is specified.
Table 25
ASSEMBLY COMPONENTS
Component Type Part Number
Tape Silicone, Type I, 20 mil A-A-59163-1I0020-0.500
(1) Put two layers of tape on the tongue of the terminal lug.
Refer to:
• Figure 27 for the position of the tape on the bottom surface of the tongue
• Figure 28 for the position of the tape on the top surface of the lug.
Make sure that the forward end of the tape is 1.14 inches to 1.16 inches from the end of the
tongue.

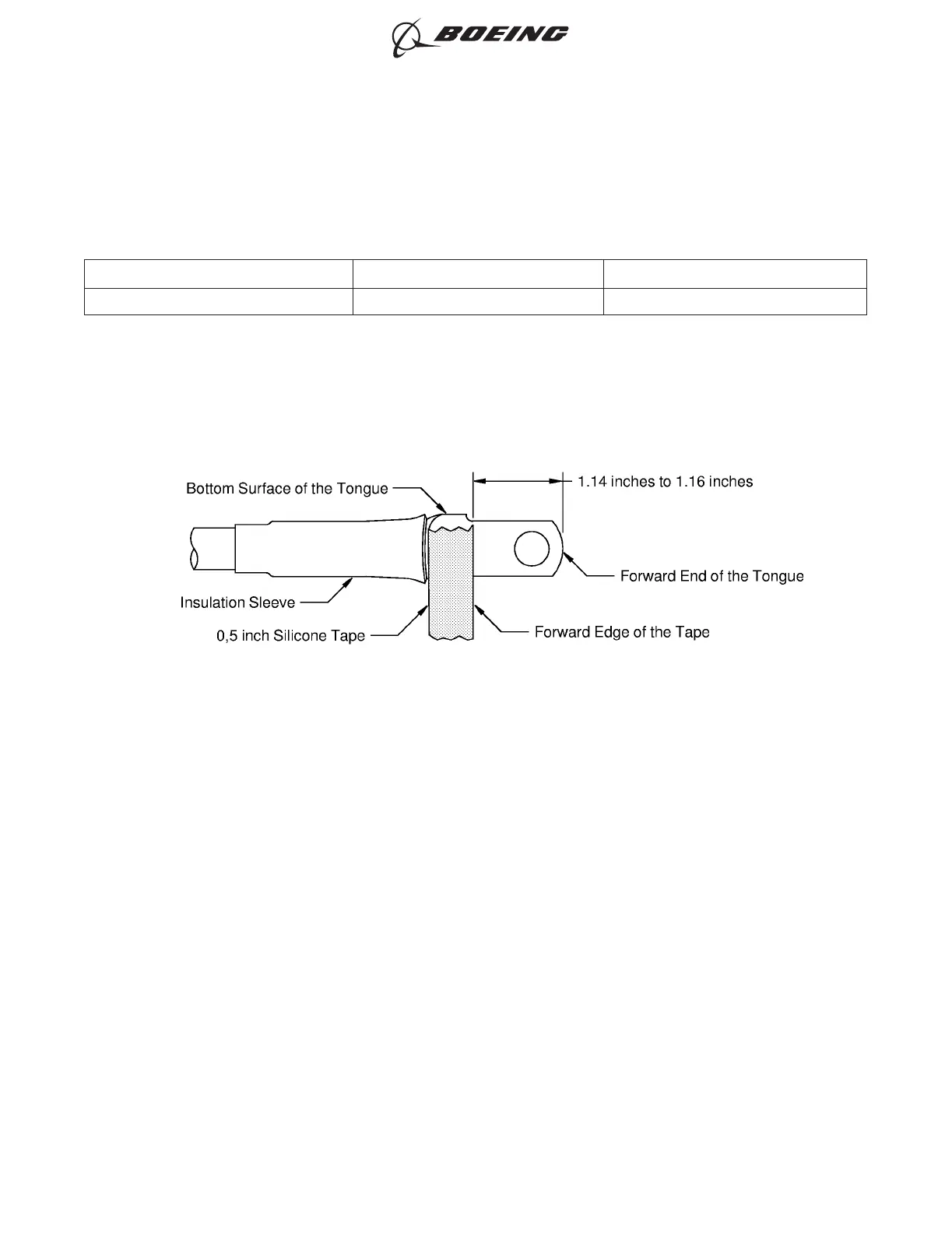

POSITION OF THE TAPE ON THE BOTTOM SURFACE OF THE TONGUE
Figure 27
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 36
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
