Boeing 707 - Closed End Splices; Splice Part Numbers and Description

3. SPLICE PART NUMBERS AND DESCRIPTION
A. Closed End Splices
Table 5
PART NUMBERS OF SEALED CLOSED END SPLICE KITS
CAU Range
Maximum
Number of Wires
Part Number
Number of
Holes in Wire
Seal
Supplier
Minimum Maximum
8 27
2 D-436-58 1 Tyco/Raychem
5 D-436-60 5 Tyco/Raychem
19 67
2 D-436-59 1 Tyco/Raychem
5 D-436-61 5 Tyco/Raychem
19 67 6 D-436-99 3 TD
43 138 4 D-436-0129 4 Tyco/Raychem
2445801 S00061545444_V1

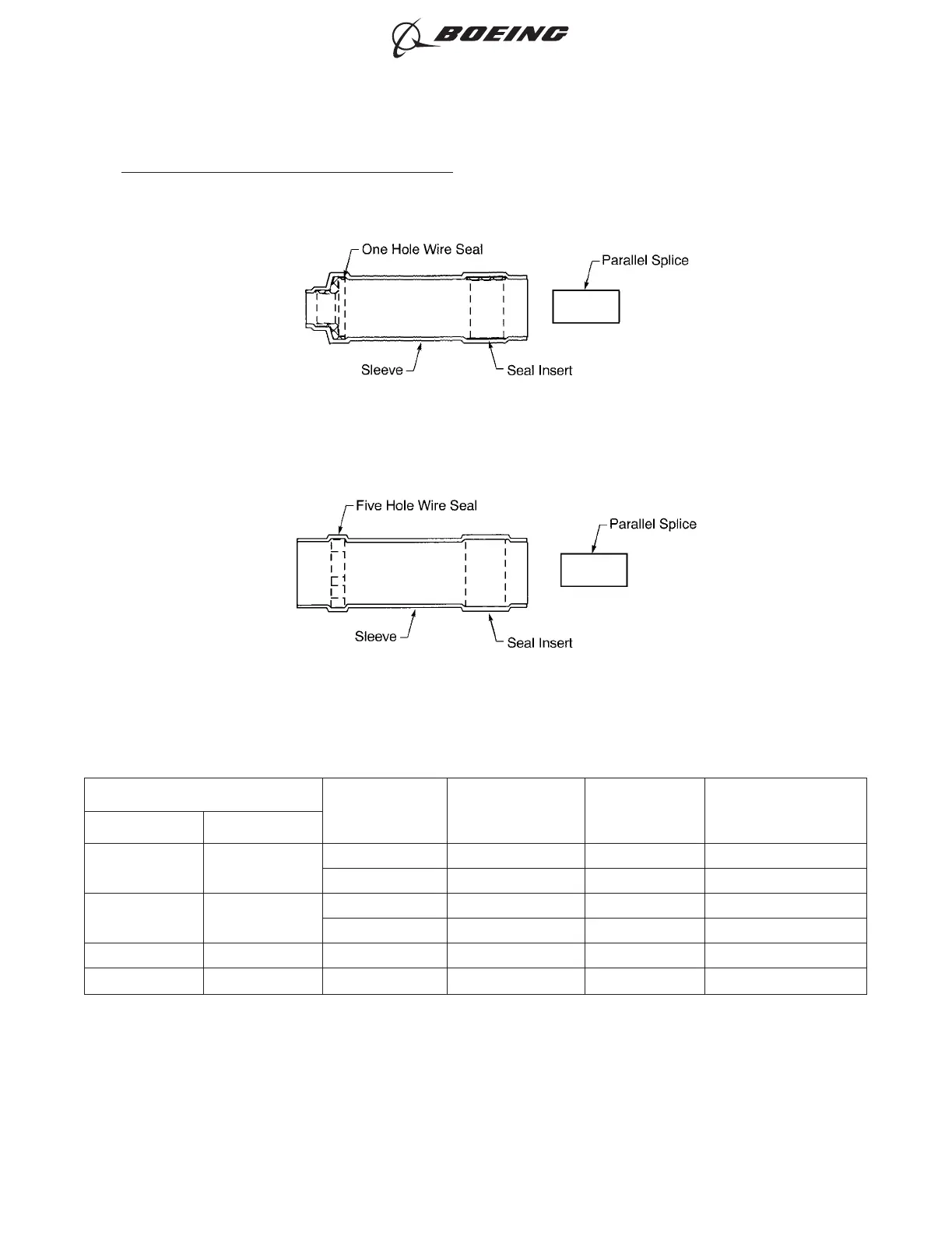

CLOSED END SPLICE KIT WITH A 1 HOLE WIRE SEAL
Figure 1
2445802 S00061545445_V1
CLOSED END SPLICE KIT WITH A 5 HOLE WIRE SEAL
Figure 2
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 14
Oct 15/2017D6-54446
