Boeing 707 - Installation of Ultra Fast Type Terminal Lugs; Installation of the 60789-2 Receptacle Terminal Lug

E. Installation of Ultra Fast Type Terminal Lugs
(1) Align the engaging end of the terminal lug assembly and the terminal lug tab. Refer to Figure 22.
(2) Push the terminal lug forward until the engaging end is against the stop of the terminal lug tab.
Make sure that the terminal lug is not loose on the tab.
F. Installation of the 60789-2 Receptacle Terminal Lug
Table 9
TERMINAL LUG INSTALLATION TOOLS
Installation Tool Supplier
452383-1 AMP
Table 10
WIRING INSTALLATION COMPONENTS
Component Type Specification
Sleeve Heat Shrinkable M23053/5
(1) Make a selection of a receptacle terminal lug installation tool from Table 9.
(2) Make a selection of a heat shrinkable sleeve. Refer to Table 10.
(3) Put a 0.6 inch length of the heat shrinkable sleeve on the wire.
(4) Put the installation tool on the wire between the sleeve and the crimp barrel of the terminal lug.
2449209 S00061545392_V1

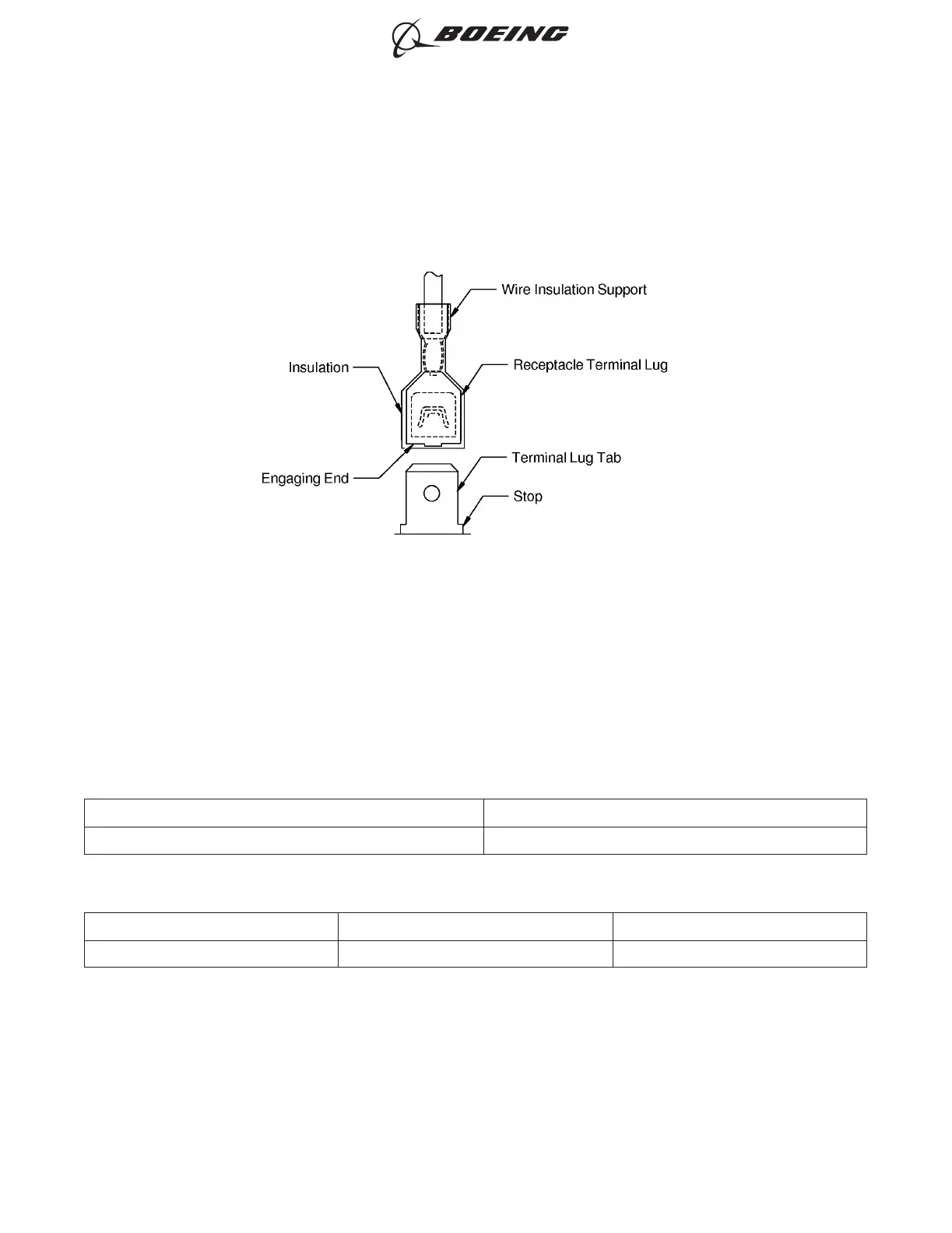

ALIGNMENT OF THE TERMINAL LUG AND THE TAB
Figure 22
ELECTRICAL CONNECTION OF EQUIPMENT AND INSTALLATION OF TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-00
Page 24
Jun 15/2018D6-54446
