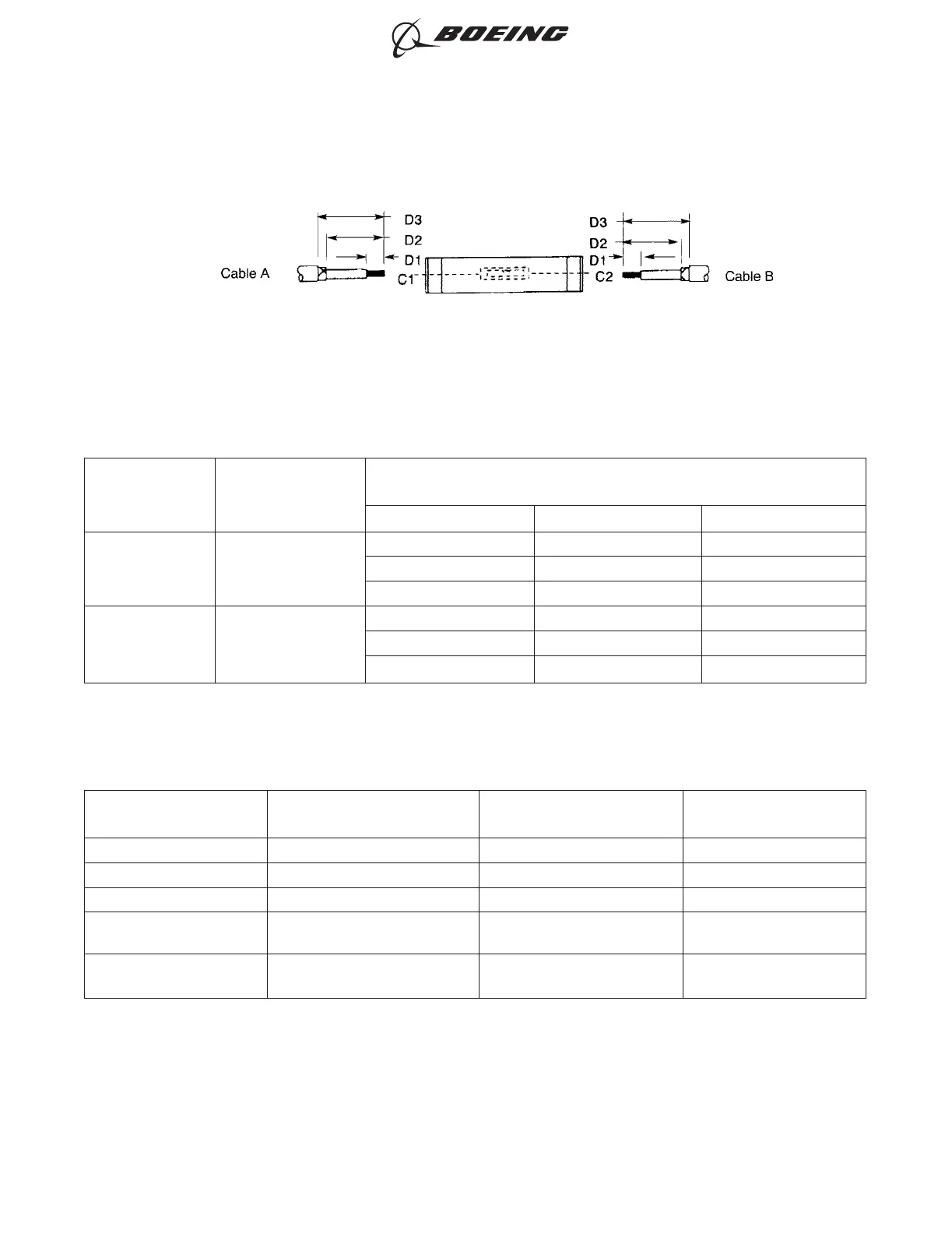

Table 107
CABLE TRIM DIMENSIONS
Cable Conductor
Trim Dimension
(inch)
Dimension Target Tolerance
A C1
D1 0.28 ±0.02
D2 0.70 ±0.02
D3 1.08 ±0.02
B C2
D1 0.28 ±0.02
D2 0.70 ±0.02
D3 1.08 ±0.02
C. Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - One 10
AWG Shielded Wire to One 16 AWG Shielded Wire Used on Pass Thru Bulkheads
Table 108
NECESSARY MATERIALS
Part Number Description
Quantity or Length
Necessary
Supplier
D-150-0272 Splice Kit 1 Raychem
BACS13CT3N Solder sleeve 2 Boeing
BAC3108-2C Shield overbraid 2.5 inches ±0.1 inch Boeing
M23053/5-108-4
1/2 inch diameter heat
shrinkable sleeve
4.0 inches ±0.1 inch An available source
M23053/12-102-C
1/4 inch diameter heat
shrinkable sleeve
2.0 inches ±0.1 inch An available source
(1) Prepare the end of each wire Refer to Figure 266.
Make sure that the 18 AWG filler wire is the same wire type as the 16 AWG wire.
ONE SHIELDED WIRE TO ONE SHIELDED WIRE
Figure 265
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 295
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
