E. Installation of a Terminal on a Circuit Breaker
Refer to Figure 7.
NOTE: When a terminal, with a hole that is larger than the hole of the circuit breaker terminal, is
attached to a circuit breaker:
• An AN960 pressure washer is installed between the terminal and the lock washer
• The AN960 pressure washer has a hole that is the same size as the hole of the circuit
breaker terminal; for example, an AN960-8 pressure washer is used when a size 10 terminal
is attached to size 8 circuit breaker terminal.

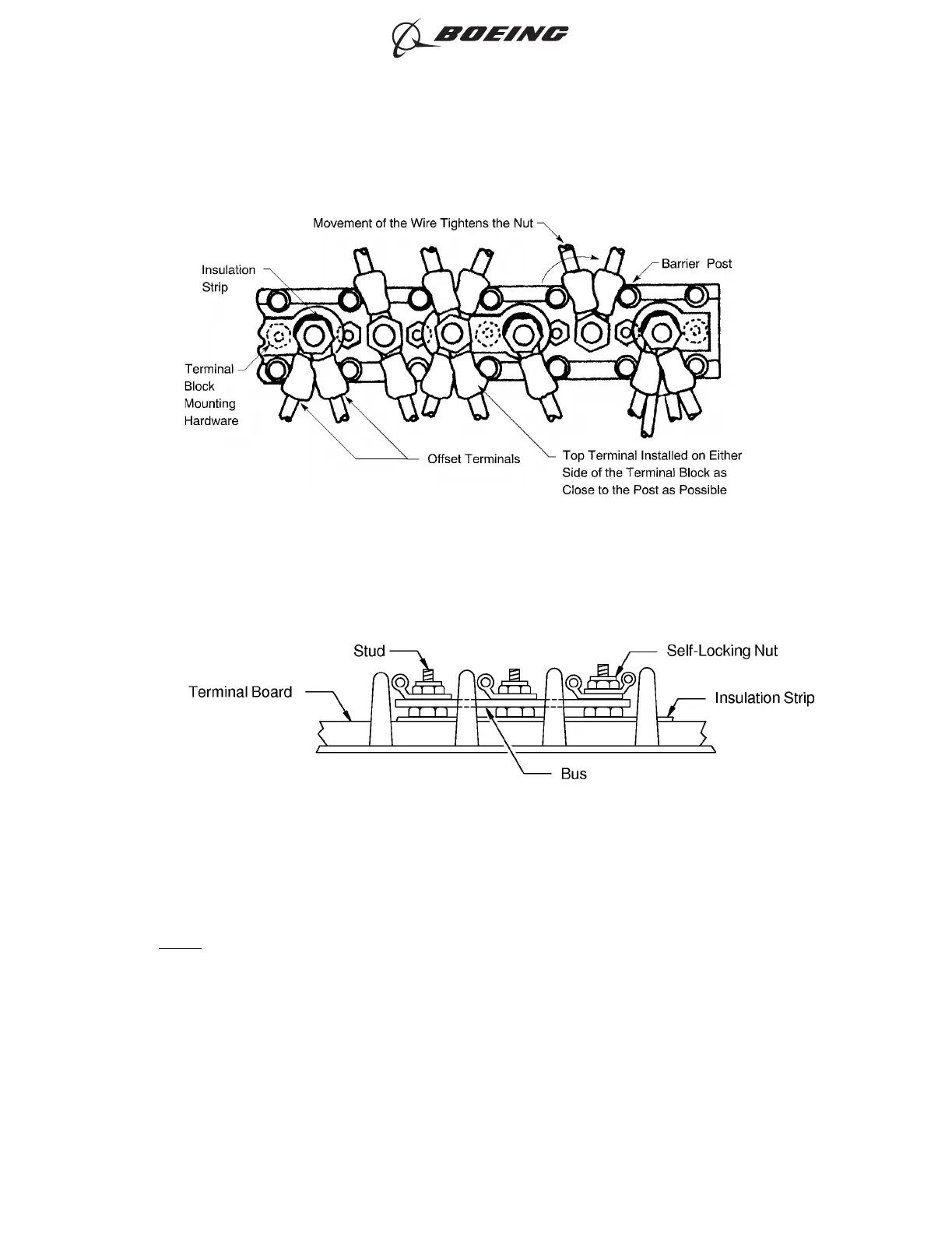

CONFIGURATION OF TERMINALS ON AN MS27212 TERMINAL BLOCK
Figure 5
BUS CONFIGURATION OF A TERMINAL BOARD
Figure 6
ELECTRICAL CONNECTION OF EQUIPMENT AND INSTALLATION OF TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-00
Page 8
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
