Boeing 707 - Page 7

2449211 S00061545366_V1

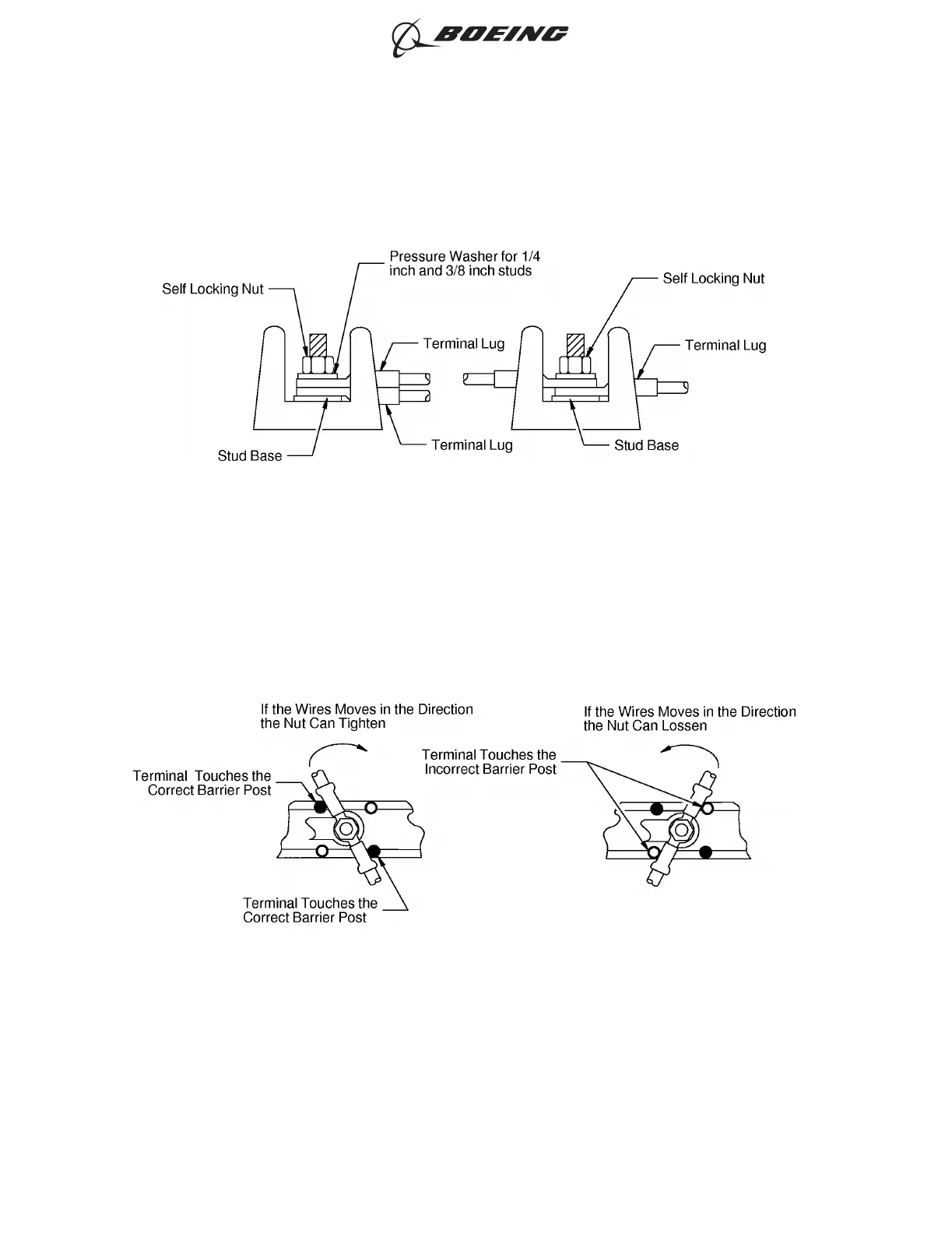

TERMINALS INSTALLED ON A TERMINAL BLOCK
Figure 3
2449212 S00061545367_V1
POSITIONS OF TERMINLA LUGS ON THE BARRIER POSTS
Figure 4
ELECTRICAL CONNECTION OF EQUIPMENT AND INSTALLATION OF TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-00
Page 7
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
