Make sure that the seal material that comes out of the ends of the sleeve does not have rough
edges.
K. Sealed Splice Configurations for Unshielded Wires and Cables - One Cable to One Cable - Tape,
Ties
For the conditions that are applicable for:
• The repair of a wire or a cable with a splice, refer to Subject 20-10-13
• The selection of the correct sealed splice configuration, refer to Paragraph 1.C.
Refer to Figure 88.
(1) Prepare the cable.
Refer to:
• Figure 89
• Subject 20-00-15 for the outer jacket removal procedures.
Make sure that:
• The distance from the end of the outer jacket to the center of the nearest sealed splice is
1.75 inches ±0.25 inch
• The distance from the center of a sealed splice on one wire to the center of the nearest
sealed splice on a different wire is 2.38 inches ±0.25 inch.

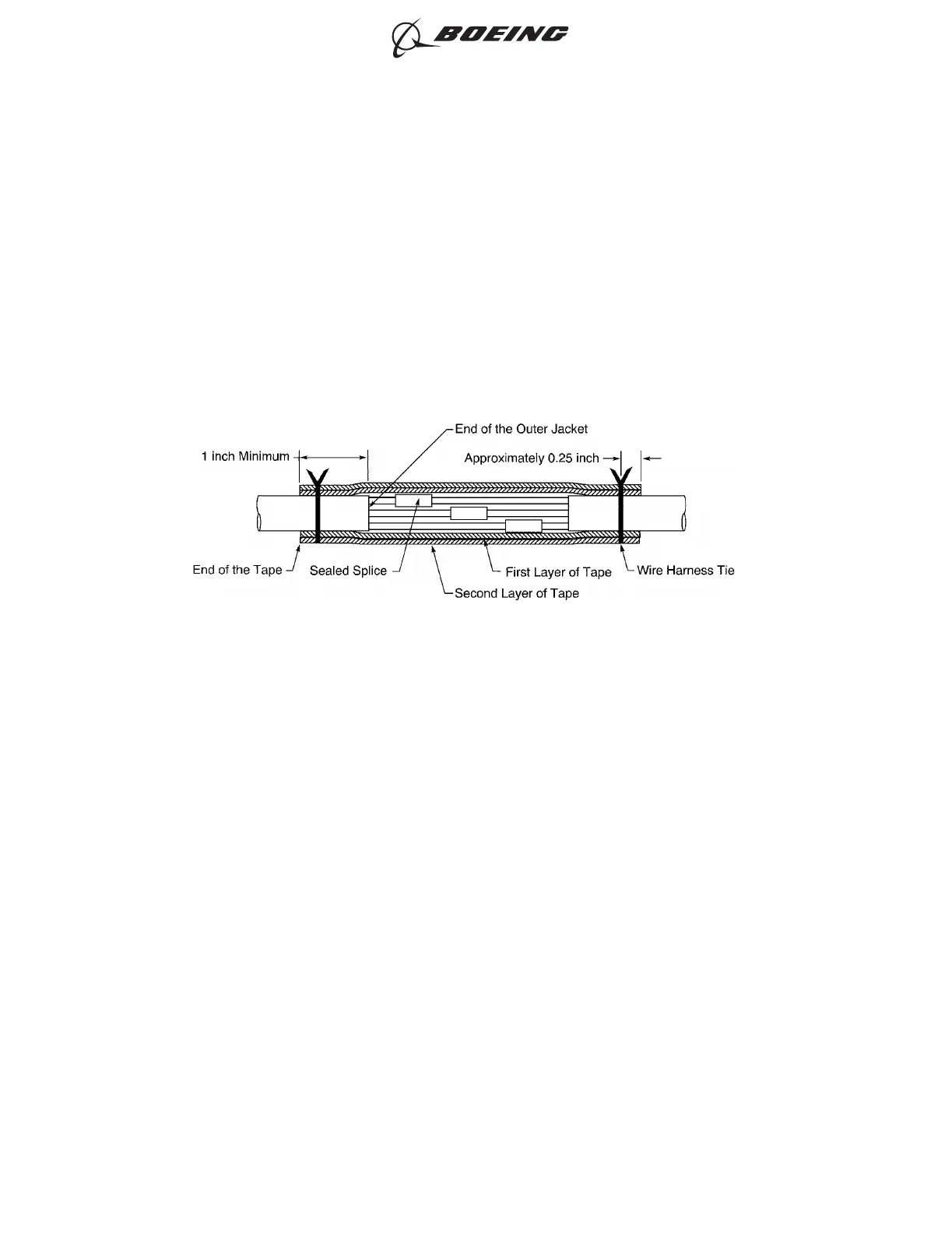

CONFIGURATION OF THE CABLE SPLICE ASSEMBLY
Figure 88
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 113
Feb 15/2021D6-54446
