P. Kit Group P3N2 - One Class 2 Cable and One Class 1 Cable to One Class 2 Cable and One Class
1 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..

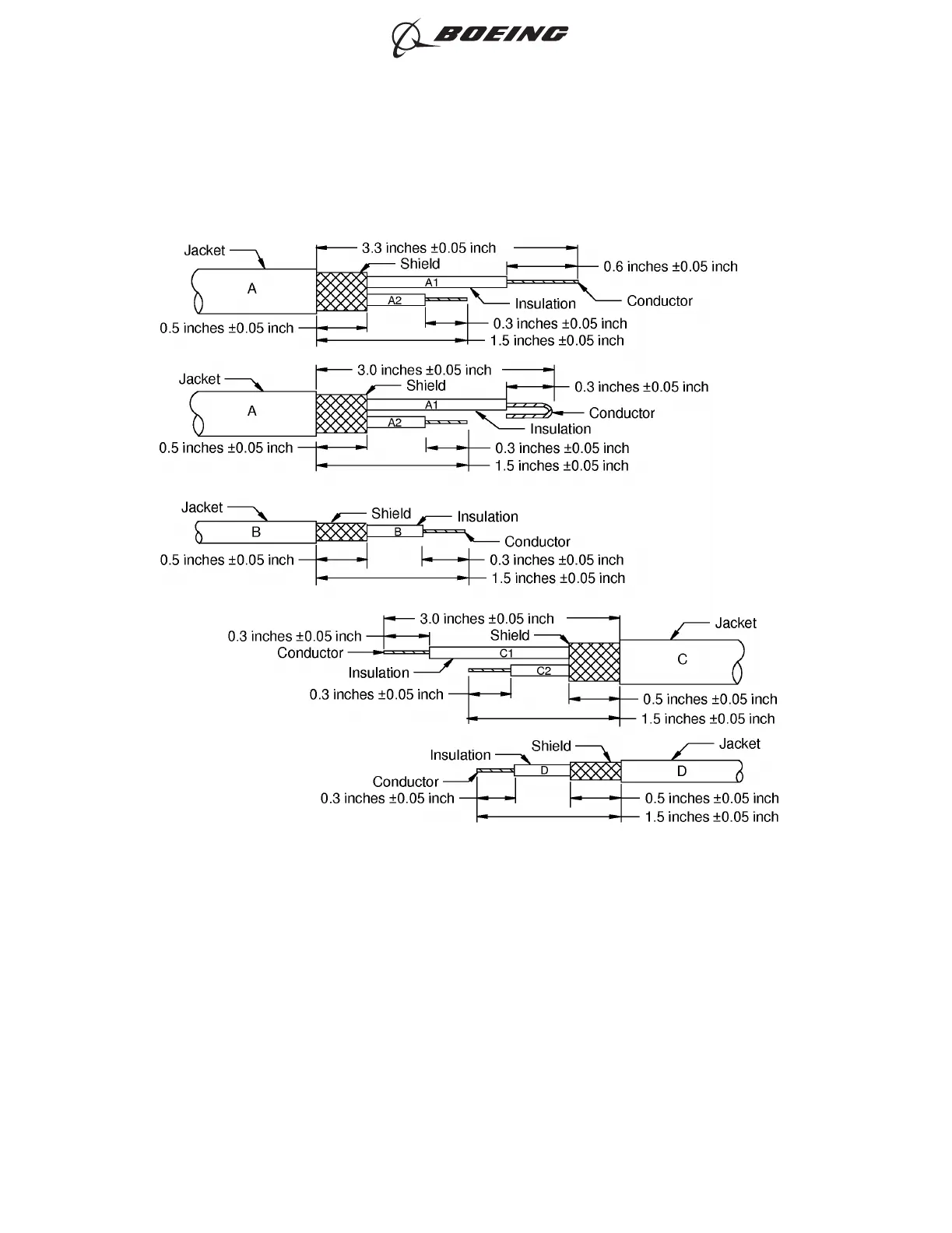

Refer to Figure 45
ONE CLASS 2 CABLE AND ONE CLASS 1 CABLE TO ONE CLASS 2 CABLE AND ONE CLASS 1 CABLE
Figure 45
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 169
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
