B. Internal Conductor Splice for a Shielded Wire or Cable - One Wire to One Wire - Tape
Refer to Figure 121.
(1) Make a selection of a butt splice from Table 12 or Table 14.
Make sure that the splice has the smallest CAU range that can accept the total CAU of the
conductor.
Refer to Paragraph 1.D. for the procedure to calculate the CAU of the conductor.
(2) Find the crimp barrel size of the splice from Table 12 or Table 14.
(3) Make a selection of a crimp tool from:
• Table 43 for BACT12C() splices
• Table 44 for NAS1387-() splices
• Table 45 for BACS52K() splices
• Table 45 for Raychem D-609-0() splices.
(4) Make a selection of a Temperature Grade B or higher insulation tape from Table 52.
(5) Remove the necessary length of insulation from the end of each wire.
Refer to:
• Figure 122
• Table 92 for the insulation removal length
• Subject 20-00-15 for the insulation removal procedures.

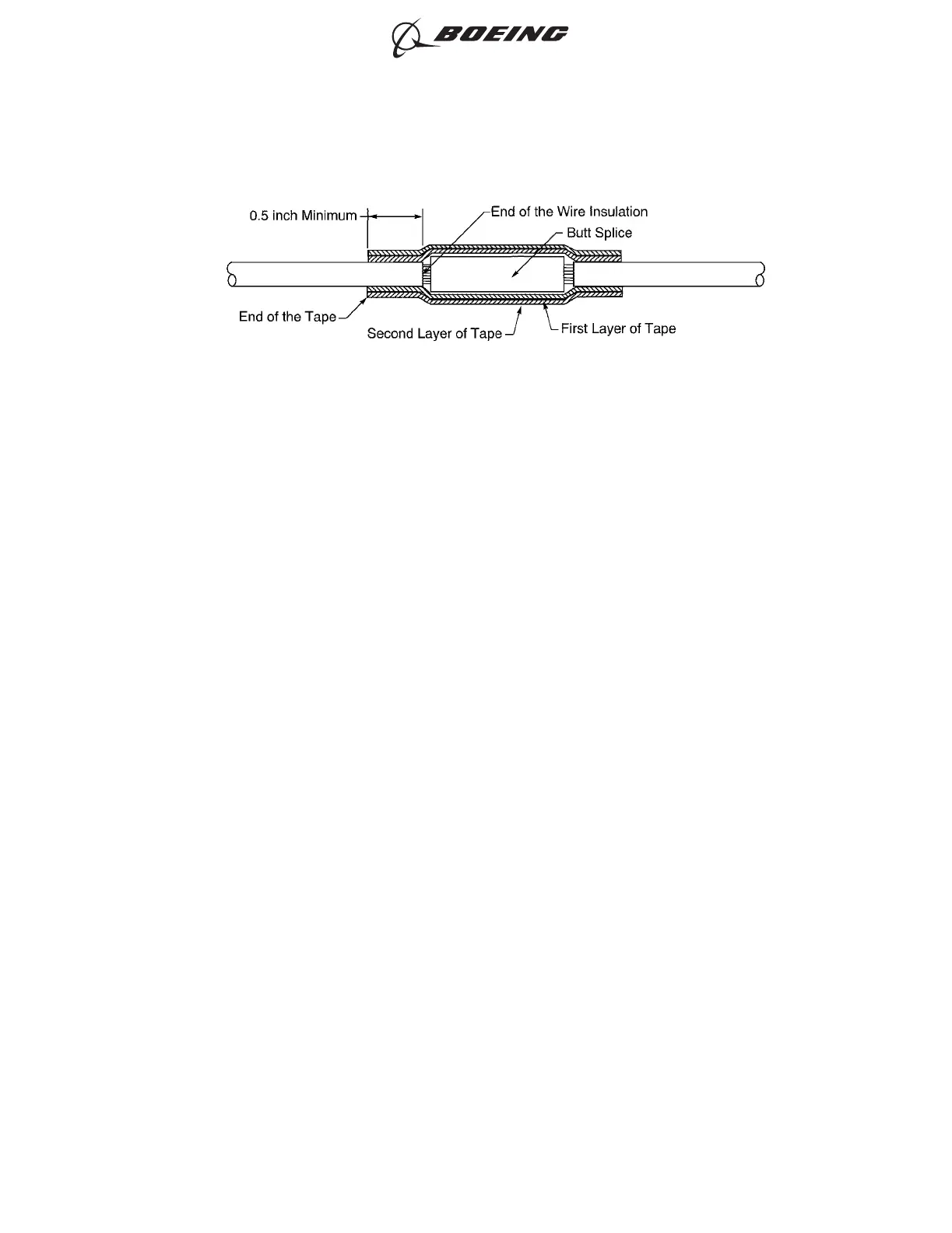

CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 121
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 149
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
