Boeing 707 - Conductor Splice Crimp Tools; RSK Shield-Kons; Tools and Materials

J. RSK Shield-Kons
Table 36
PART NUMBERS OF RSK SHIELD-KONS
Temperature
Grade
Part Number
Shield Diameter
(inch)
Color Plating Supplier
Minimum Maximum
B
RSK101 0.050 0.090 Red Tin Thomas & Betts
RSK201 0.090 0.145 Blue Tin Thomas & Betts
RSK301 0.144 0.200 Yellow Tin Thomas & Betts
RSK401 0.200 0.300 Green Tin Thomas & Betts
D
SK501HT 0.301 0.325 - Nickel Thomas & Betts
SK601HT 0.401 0.425 - Nickel Thomas & Betts
NOTE: SK501HT and SK601HT are no longer manufactured.
4. TOOLS AND MATERIALS
A. Conductor Splice Crimp Tools
Table 37
CRIMP TOOLS FOR INSULATED CLOSED END SPLICES
Crimp Barrel
Size
Crimp Tool
Basic Unit Die
Part Number Supplier Part Number Supplier
22-14
45216 Tyco/AMP - -
46110 Tyco/AMP 45218 Tyco/AMP
2447105 S00061545450_V1

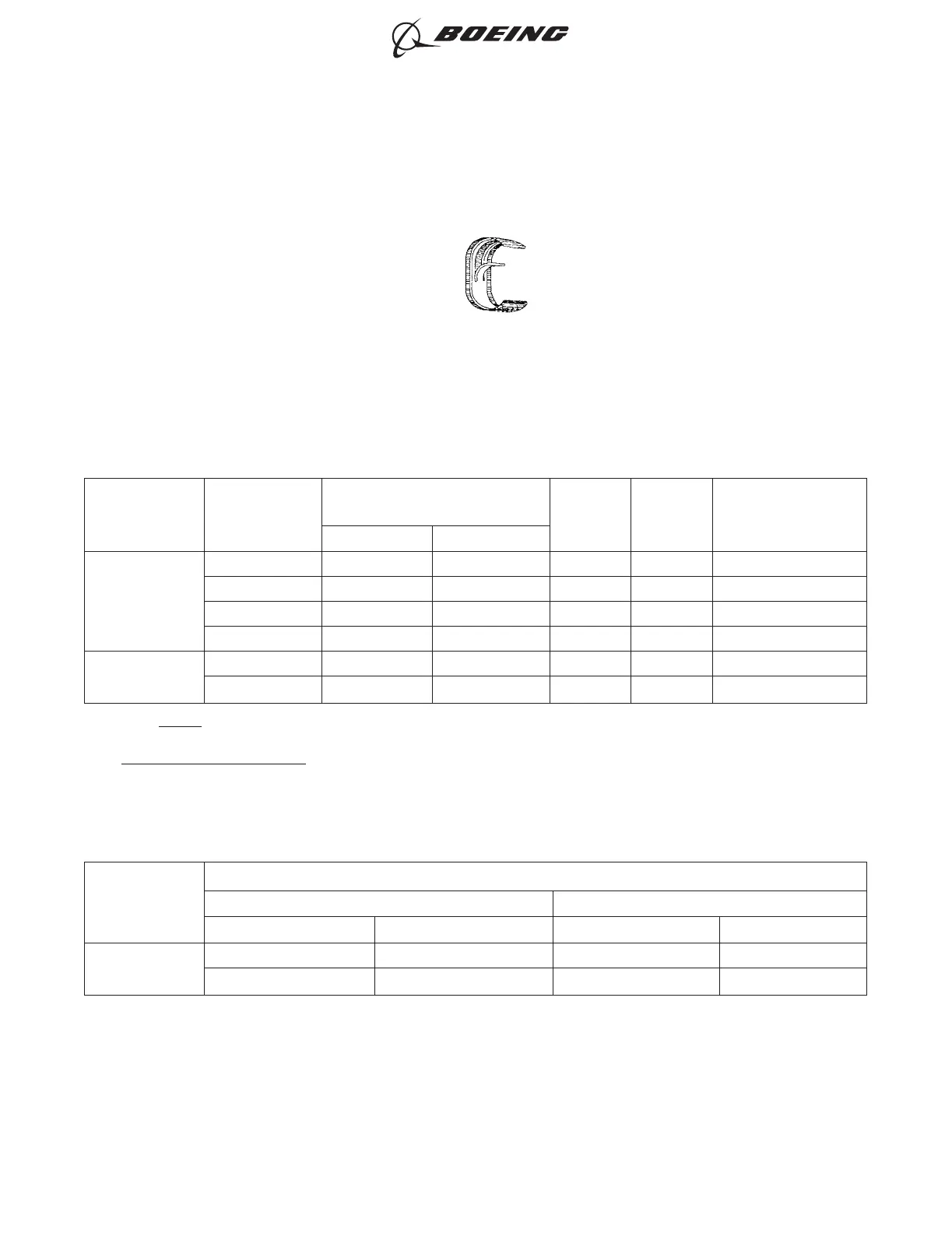

RSK SHIELD-KON
Figure 8
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 32
Feb 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
