Boeing 707 - Class 2 Cable and One Class 1 Cable

M. Kit Groups P1N2, P2N2 or P3N2 - One Class 2 Cable and One Class 1 Cable to One Class 2
Cable and One Class 1 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..

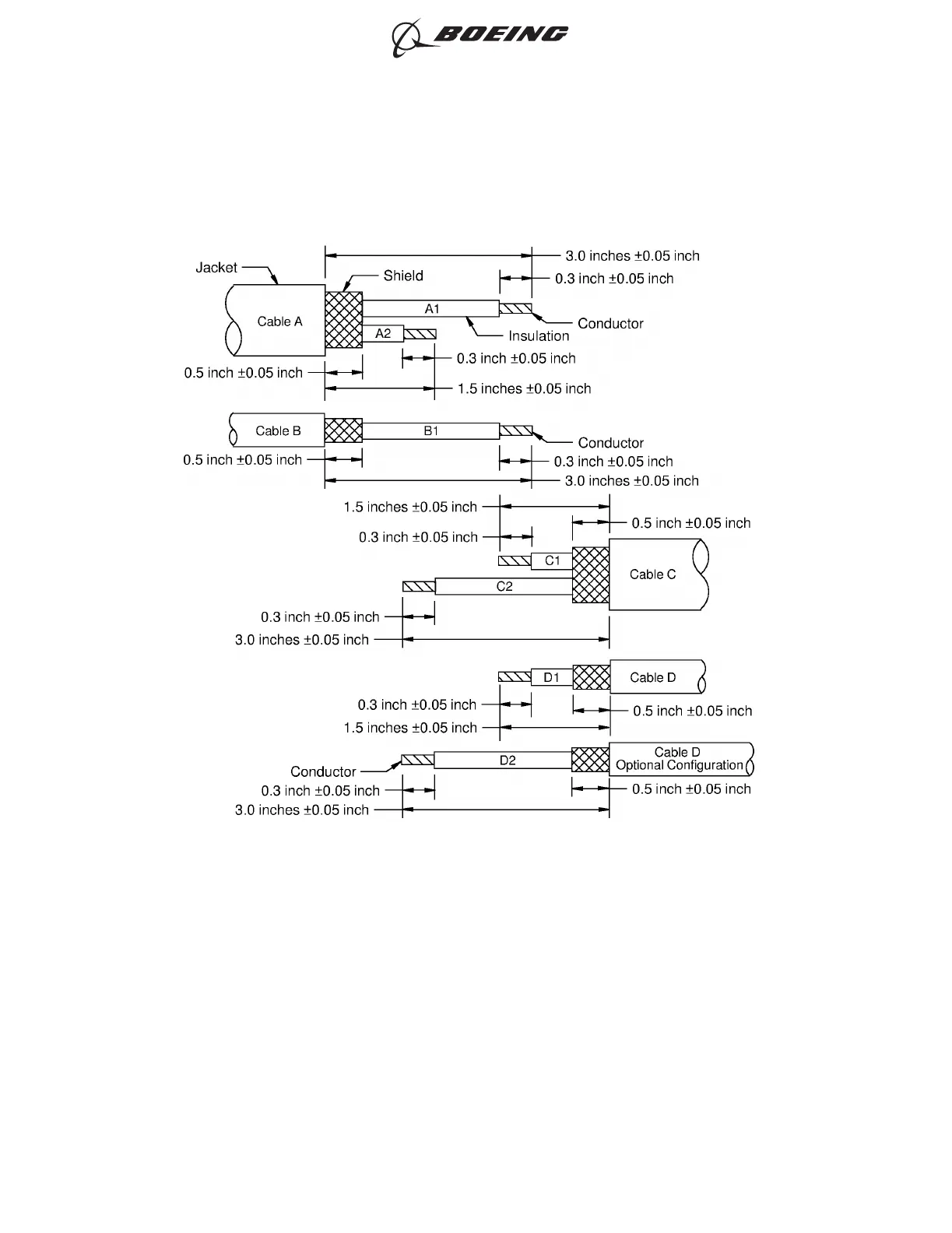

Refer to Figure 19.
2449585 S00061545746_V1
ONE CLASS 2 CABLE AND ONE CLASS 1 CABLE TO ONE CLASS 2 CABLE AND ONE CLASS 1 CABLE
Figure 19
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 105
