Boeing 707 - BACT12 AL General Purpose Terminal Lugs

Table 4 SUPPLIER PART NUMBERS FOR BACT12AC TERMINAL LUGS (Continued)
Boeing Standard Part Number Supplier
BACT12AC6
320561 Tyco/AMP
BB-823-06 ETC
R2442SN Hollingsworth
BACT12AC60
329150 Tyco/AMP
YAEV28-G5 Burndy
BACT12AC61
324114 Tyco/AMP
YAEVAC-L5 Burndy
BACT12AC62
53041 Tyco/AMP
YAEV8C-L14 Burndy
BACT12AC7
51864 Tyco/AMP
BB-837-06 ETC
R1901SN Hollingsworth
BACT12AC8
51864-2 Tyco/AMP
BB-839-10 ETC
R1903SN Hollingsworth
BACT12AC9
328998 Tyco/AMP
BB-825-56 ETC
R1907SN Hollingsworth
C. BACT12AL General Purpose Terminal Lugs
Refer to Paragraph 2.E. for the procedure to assemble these terminals.
BACT12AL terminal lugs:
• Are insulated
• Have no wire insulation grip.
2449330 S00061545416_V1

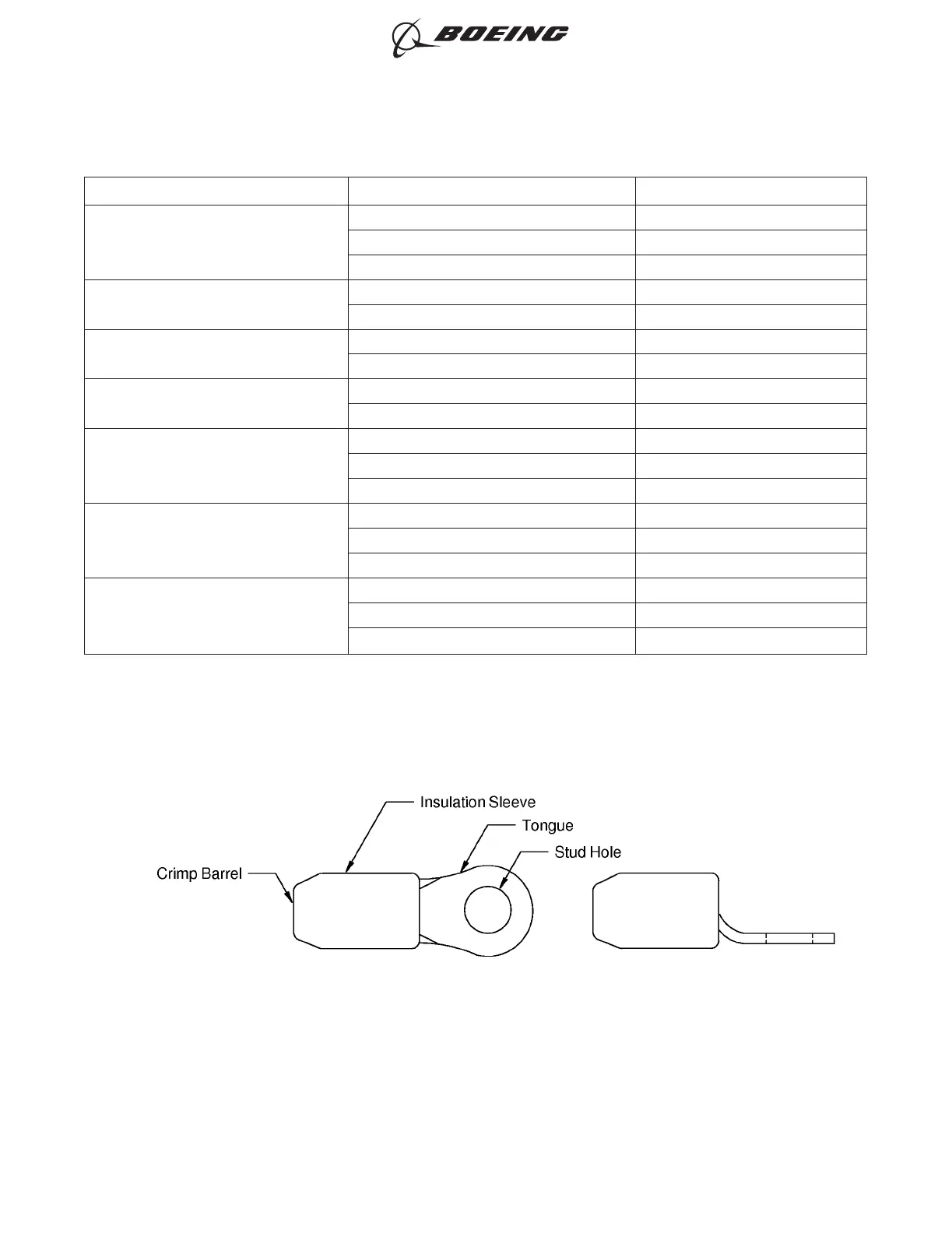

TYPICAL BACT12AL TERMINAL
