Make sure that the small end of the small solder sleeve is put on the cable first
(3) Put the other solder sleeve on Cable B.
Make sure that the small end of the solder sleeve is put on the cable first.
(4) Put a seal sleeve on Wire A1.
U. Kit Group T2( ) 4 - One Class 4 Cable to One Class 4 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 27.
Table 29
CONNECTIONS
Wire Connection Wire Connected to
A1 Splice B1
A2 Splice B2
A3 Splice B3
A4 Splice B4
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
NOTE: The shield material has fused ends that hold the ends of the strands of the shield
together.
(2) If the splice kit has seal inserts and different size solder sleeves:

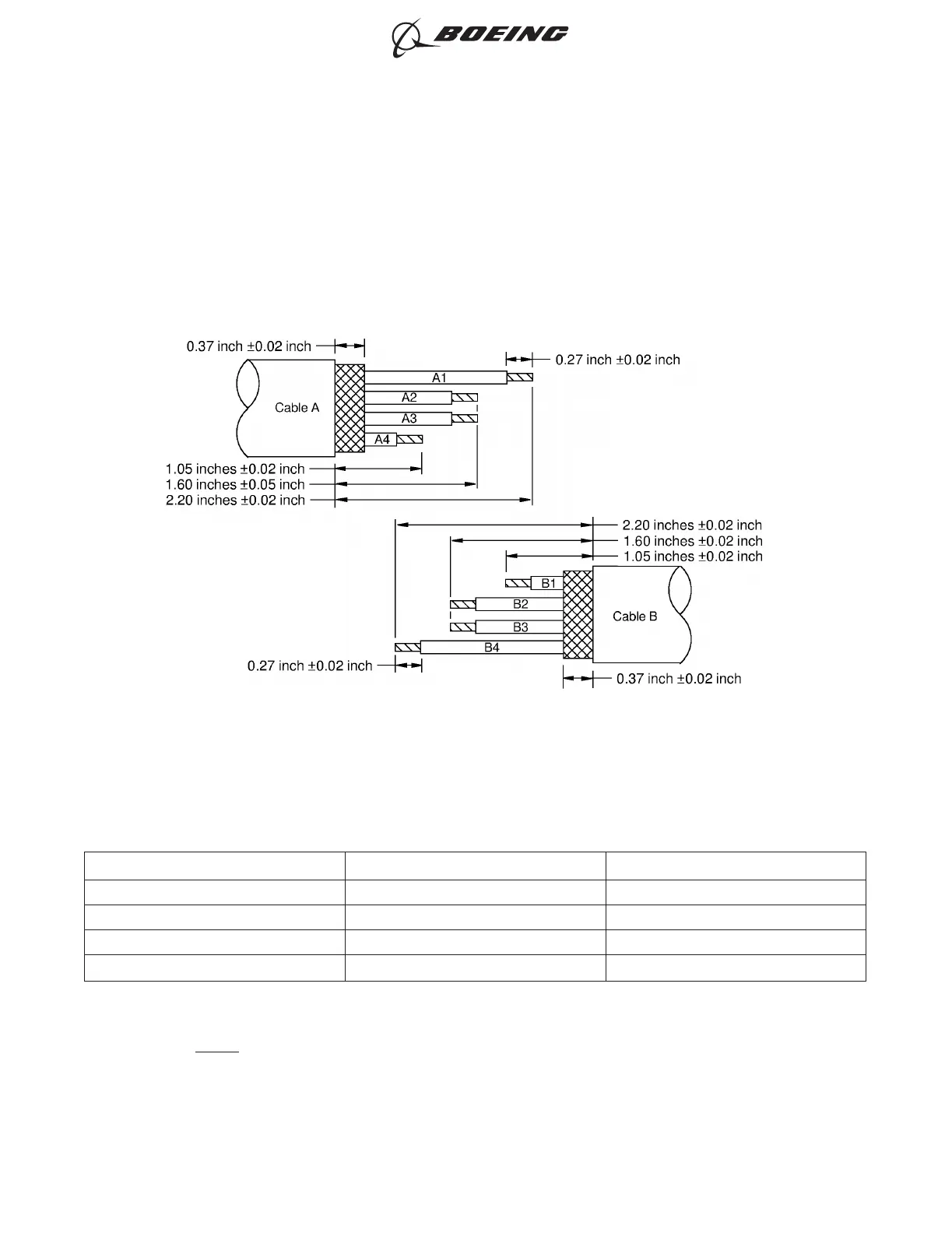

ONE CLASS 4 CABLE TO ONE CLASS 4 CABLE
Figure 27
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 71
Jun 15/2021D6-54446
