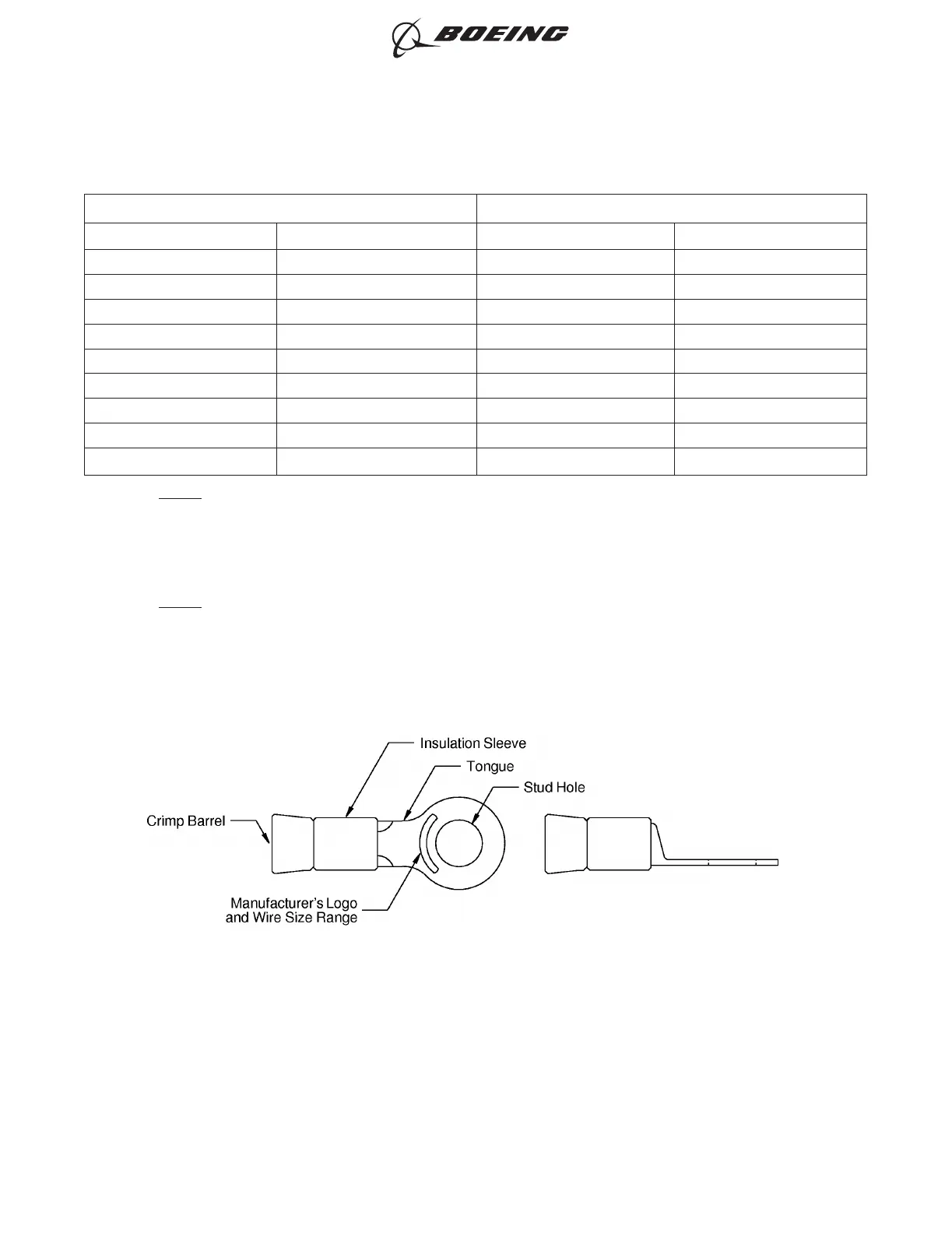

Table 9
ATERNATIVE BACT12AR TERMINAL LUGS
Specified Terminal Lug Alternative Terminal Lug
Part Number Supplier Part Number Supplier
BACT12AR241 Boeing BACT12AC44 Boeing
BACT12AR242 Boeing BACT12AC45 Boeing
BACT12AR243 Boeing BACT12AC46 Boeing
BACT12AR244 Boeing BACT12AC47 Boeing
BACT12AR245 Boeing BACT12AC47 Boeing
BACT12AR246 Boeing BACT12AC44 Boeing
BACT12AR247 Boeing BACT12AC45 Boeing
BACT12AR248 Boeing BACT12AC46 Boeing
BACT12AR249 Boeing BACT12AC47 Boeing
NOTE: Refer to Paragraph 1.B. for the BACT12AC part numbers.
E. BACT12AV Solid Nickel High Temperature Terminal Lugs
Refer to Paragraph 2.I. for the procedure to assemble these terminals.
These terminal lugs do not have a wire insulation grip.
NOTE: A solid nickel terminal lug from Table 10 is a satisfactory alternative to a BACT12M terminal
lug.
TYPICAL BACT12AV TERMINAL LUG
Figure 5
