D. Kit Groups P1N1, P2N1, P3N1 or P4N1 - One Class 2 Cable to One Class 3 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 10.
Table 12
CONNECTIONS
Wires Connection Wires Connected to
A1 and A2 Splice B1, B2 and B3
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
(2) If the splice kit has seal inserts and different size solder sleeves:
(a) Put these components on Cable A in this sequence:
• The outer sleeve
• A seal insert, if a build-up sleeve is not specified for the cable
• The small solder sleeve
• The shield material
• The large solder sleeve.
Make sure that:
• The small end of the small solder sleeve is put on the cable first
• The large end of the large solder sleeve is put on the cable first.

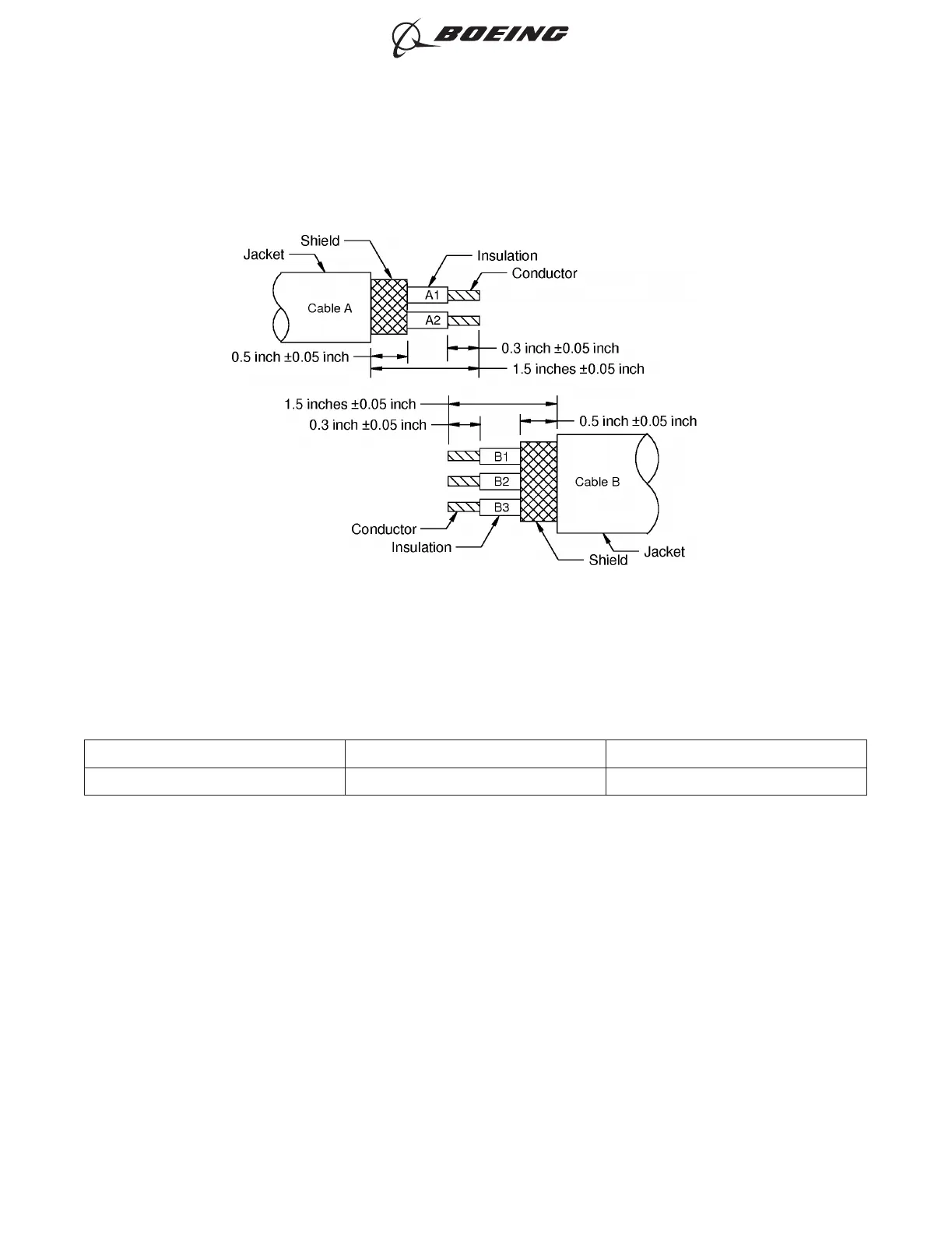

ONE CLASS 2 CABLE TO ONE CLASS 3 CABLE
Figure 10
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 82
Jun 15/2021D6-54446
