Boeing 707 - Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - Three Shielded Wires to Three Shielded Wires

Table 110
CABLE TRIM DIMENSIONS
Cable Conductor
Trim Dimension
(inch)
Dimension Target Tolerance
A C1
D1 0.28
±0.02D2 0.70
D3 1.08
B C1
D1 0.28
±0.02D2 0.70
D3 1.08
C C1 D1 0.28 ±0.02
E. Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - Three
Shielded Wires to Three Shielded Wires
Table 111
SPLICE KITS FOR THREE SHIELDED WIRES TO THREE SHIELDED WIRES
Jacket Maximum
O.D.
Shield Minimum
O.D.
Conductor CAU Range Solder Shield Splice Kit
Minimum Maximum Part Number Supplier
0.18 0.10 19 67 D-150-0285 Tyco/Raychem
2445813 S00061545574_V1

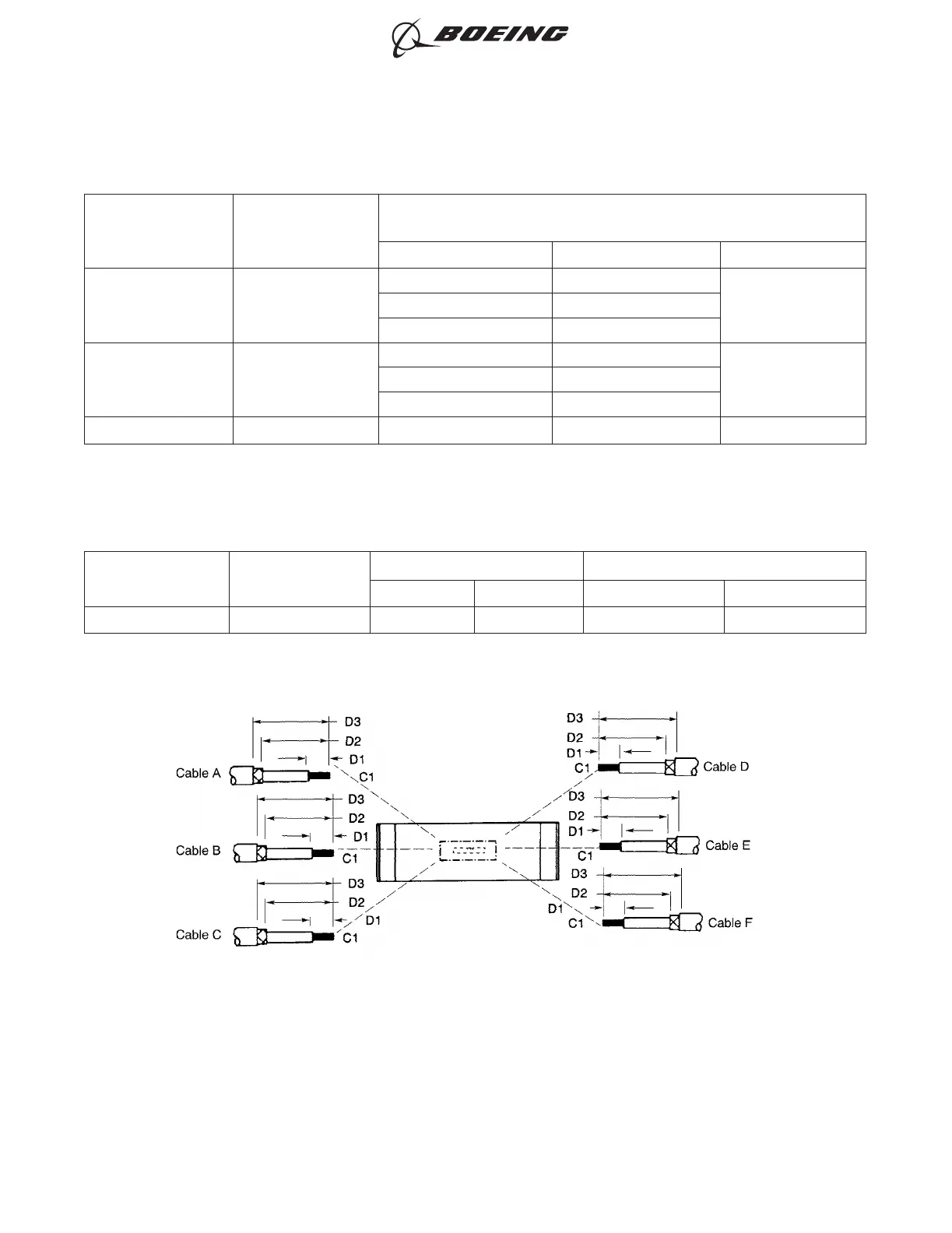

THREE SHIELDED WIRES TO THREE SHIELDED WIRES
Figure 279
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 303
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
