• The small end of the small solder sleeve is put on the cable first
• The large end of the large solder sleeve is put on the cable first.
(5) If the splice kit does not have seal inserts and the solder sleeves are the same size
(a) Put these splice assembly components on Cable A in this sequence:
• The outer sleeve
• A solder sleeve
• The shield material.
Make sure that the small end of the solder sleeve is put on the cable first.
(b) Put the other solder sleeve on Cable B and Cable C.
Make sure that the small end of the solder sleeve is put on the cables first.
(6) Put a seal sleeve on Wire A1.
(7) Put Wire B2 and Wire C2 together.
(8) Put a seal sleeve on the Wire B2 and Wire C2 pair.
F. Kit Groups P1N2, P2N2 or P3N2 - One Class 2 Cable to One Class 2 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 35
B
B1
B2
1.5 ±0.05 INCHES
JACKET
SHIELD
CONDUCTOR
INSULATION
3.0 ±0.05 INCHES
0.3 ±0.05 INCH
0.3 ±0.05 INCH
0.5 ±0.05 INCH
A
A1
A2
3.3 ±0.05 INCHES
0.6 ±0.05 INCH
1.8 ±0.05 INCHES
0.5 ±0.05 INCH
0.6 ±0.05 INCH
A
A1
A2
JACKET
SHIELD
3.0 ±0.05 INCHES
CONDUCTOR
INSULATION
0.3 ±0.05 INCH
1.5 ±0.05 INCHES
0.5 ±0.05 INCH
0.3 ±0.05 INCH
2449598 S00061545762_V2

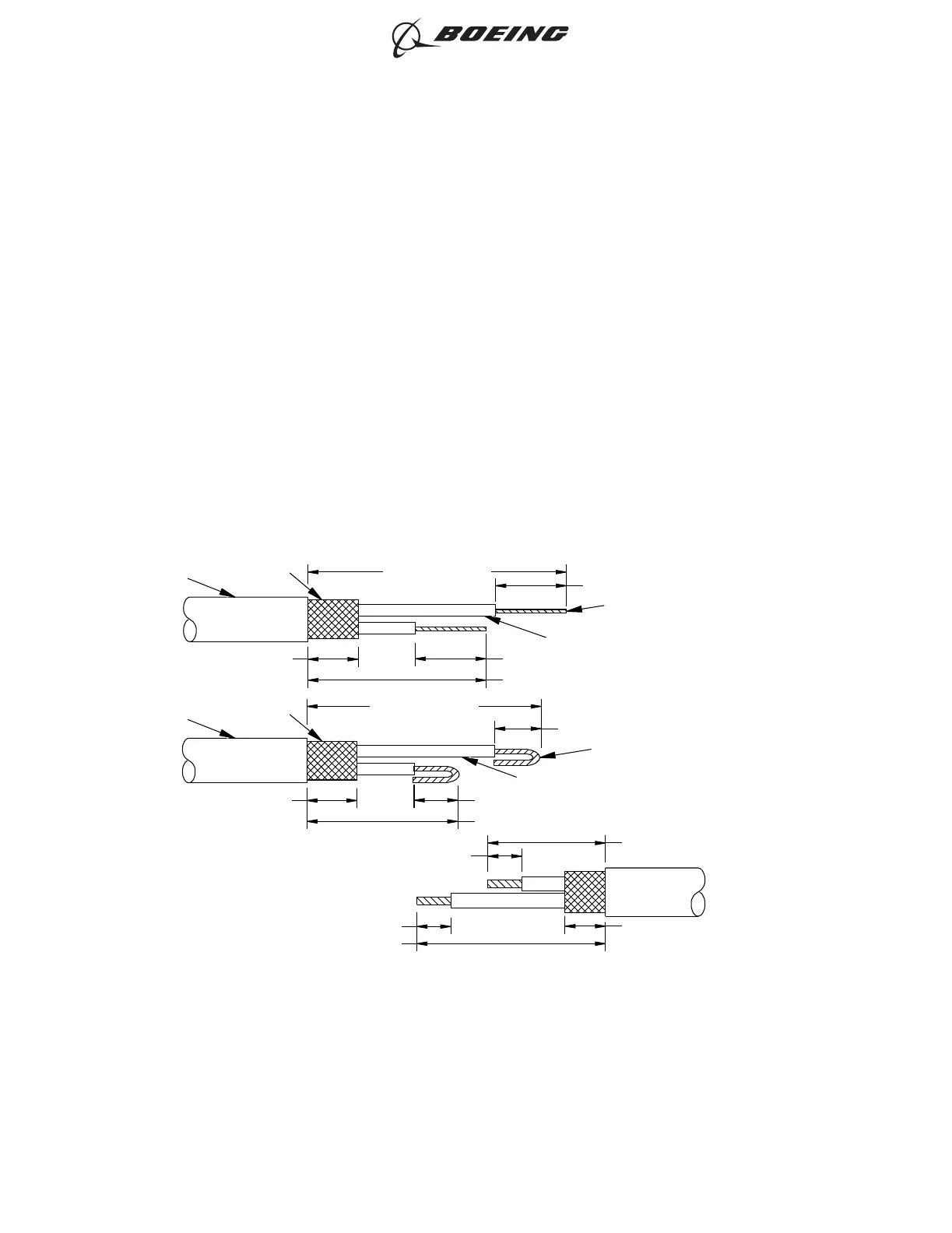

ONE CLASS 2 CABLE TO ONE CLASS 2 CABLE
Figure 35
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 140
Feb 15/2022D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
