Boeing 707 - Kit Groups T1( )1, T2( )1, T3( )1 or T4( )1 - Two Class 1 Cables to Two Class 1 Cables

E. Kit Groups T1( )1, T2( )1, T3( )1 or T4( )1 - Two Class 1 Cables to Two Class 1 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
The combined diameter of Cable A and Cable B must be equal to or less than the combined diameter
of Cable C and Cable D
Refer to Figure 11.
2449830 S00061545781_V1

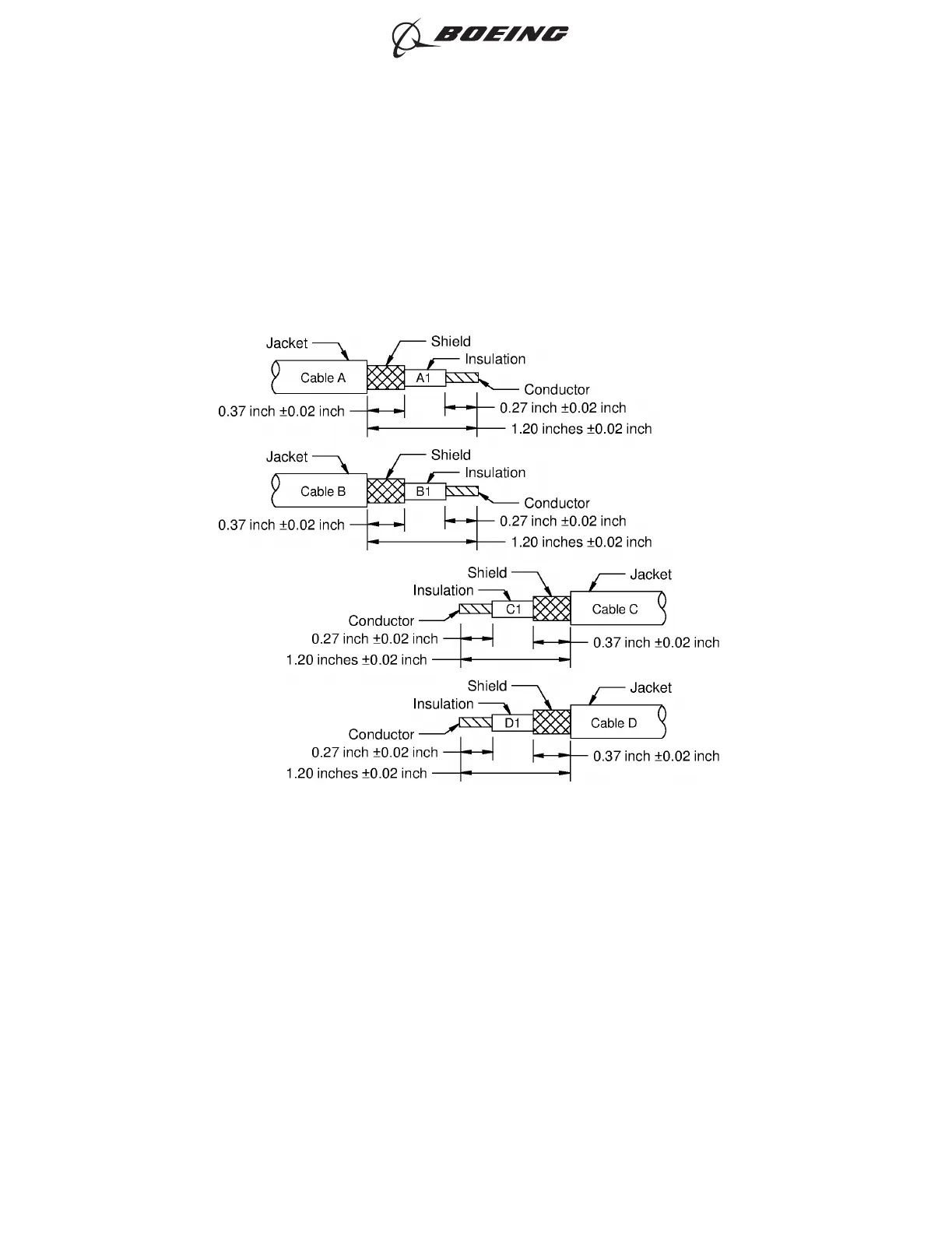

TWO CLASS 1 CABLES TO TWO CLASS 1 CABLES
Figure 11
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 30
Oct 15/2020D6-54446
