J. Insulation of the Splice - AMP 277156-1 Splices with AWG 8 Wire
(1) Make a selection of an insulation tape from Table 7.
(2) Make a selection of a solvent from Table 7.
(3) With a clean wiper and solvent, clean the splice and a minimum of two inches of the wire from
each end of the splice.
(4) Dry the clean area with a clean wiper.
(5) Wind two layers of tape on the splice. Refer to Figure 21.
(a) Start the first layer of tape a minimum of 2 inches from the end of the splice.
(b) Wind the tape on the splice and a minimum of 2 inches farther than the other end of the
splice.
Make sure that each edge of the tape makes a 50 percent overlap with the tape below it.
(c) Start the second layer a tape where the first layer of tape stops.
(d) Wind the tape on the first layer of tape in the direction of the start of the first layer of tape.
Make sure that:
• Each edge of the tape makes a 50 percent overlap with the tape below it
• The second layer of tape is wound in the opposite direction of the first layer of tape
• The second layer of tape stops where the first layer of tape starts.
K. Insulation of the Splice - BACS52N Splices and Splices with other Wire Size Combinations
Table 19
AMP SPLICES THAT MUST HAVE LAYERS OF BUILDUP TAPE
Splice
Wire Size
(AWG)
Layers of Buildup Tape
Splice End A Splice End B
277157-1
8 8 Three Layers
8 6 Three Layers
6 6 Three Layers

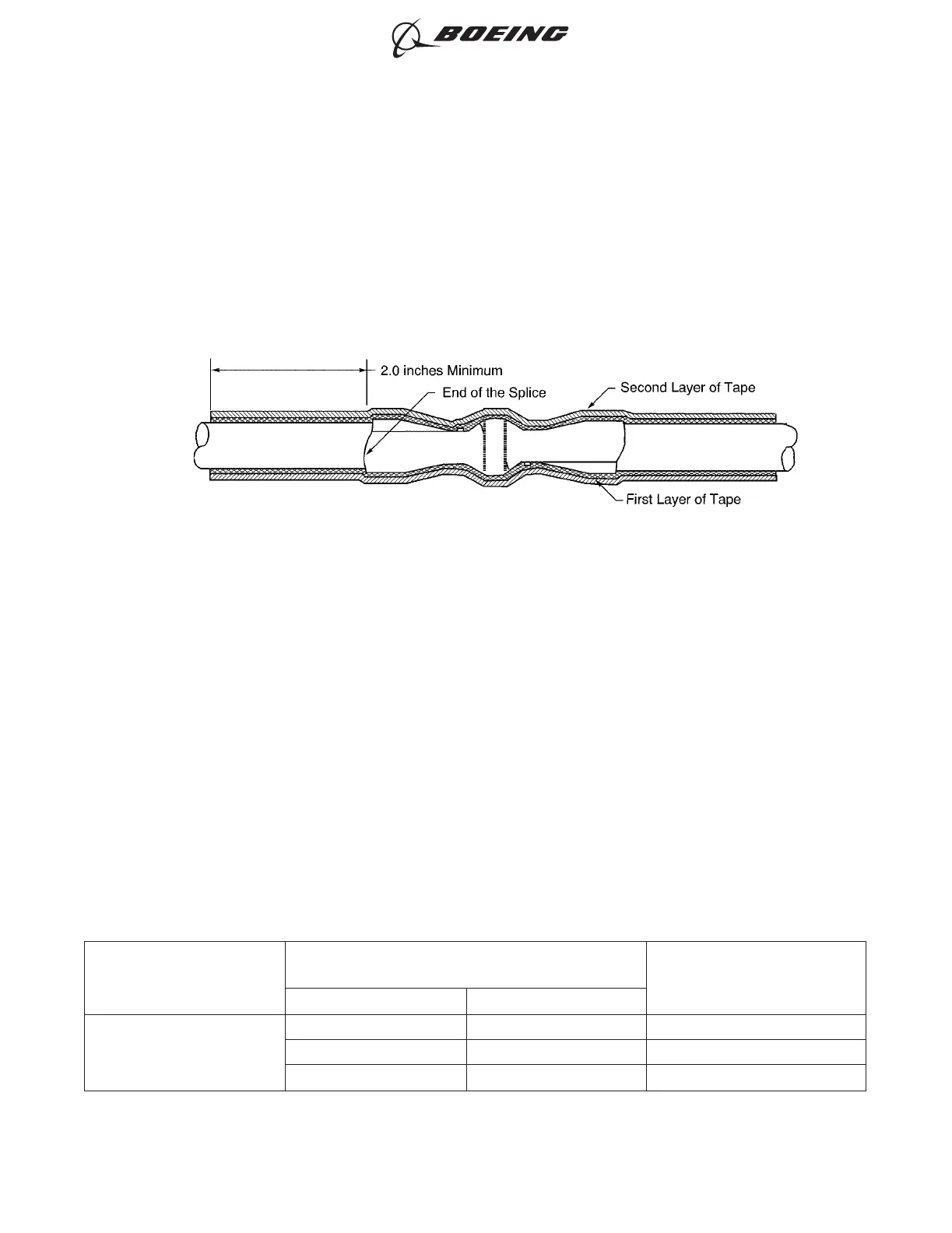

CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 21
ASSEMBLY AND REPAIR OF THE AMP AND BACS52N COPALUM SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-13
Page 31
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
