Table 137
SPLICE KITS FOR ONE CLASS 4 SHIELDED CABLE TO ONE CLASS 4 SHIELDED CABLE
Jacket Maximum
O.D.
Shield Minimum
O.D.
Conductor CAU Range Solder Shield Splice Kit
Minimum Maximum Part Number Supplier
0.18 0.10 3 15 D-150-0179 Tyco/Raychem

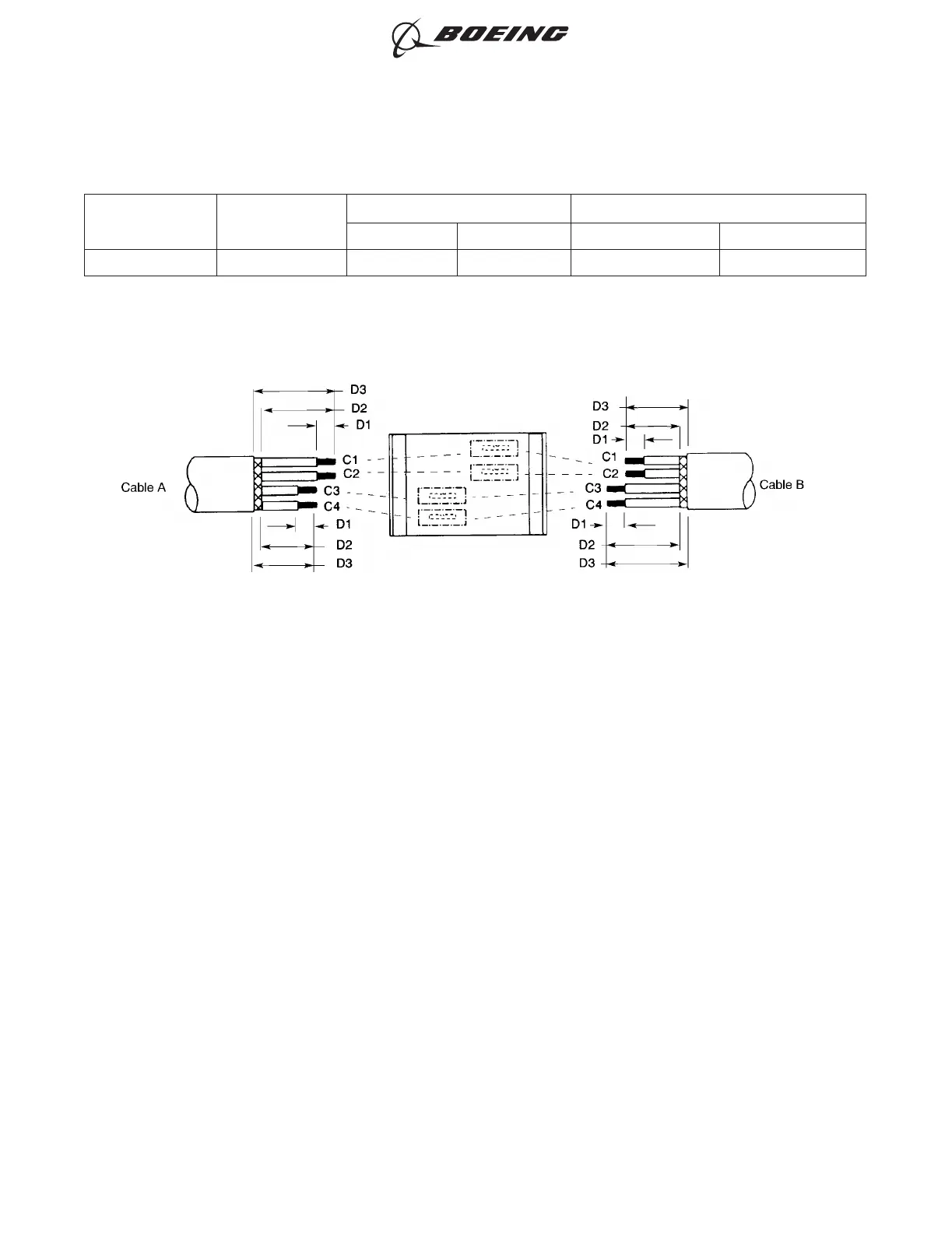

ONE CLASS 4 SHIELDED CABLE TO ONE CLASS 4 SHIELDED CABLE
Figure 293
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 329
Jun 15/2021D6-54446
