Boeing 707 - Kit Groups T1( )2, T2( )2, T3( )2 or T4( )2 - One Class 2 Cable to One Class 2 Cable

G. Kit Groups T1( )2, T2( )2, T3( )2 or T4( )2 - One Class 2 Cable to One Class 2 Cable
For the conditions that are applicable for this procedure, refer to Paragraph 2.B.
Refer to Figure 13.
Table 15
CONNECTIONS
Wire Connection Wire Connected to
A1 Splice B1
A2 Splice B2
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
NOTE: The shield material has fused ends that hold the ends of the strands of the shield
together.
(2) If the splice kit has seal inserts and different size solder sleeves:
(a) Put these components on Cable A in this sequence:
• The outer sleeve
• A seal insert, if a build-up sleeve is not specified for the cable
• The small solder sleeve
• The shield material
• The large solder sleeve.
2449832 S00061545783_V1

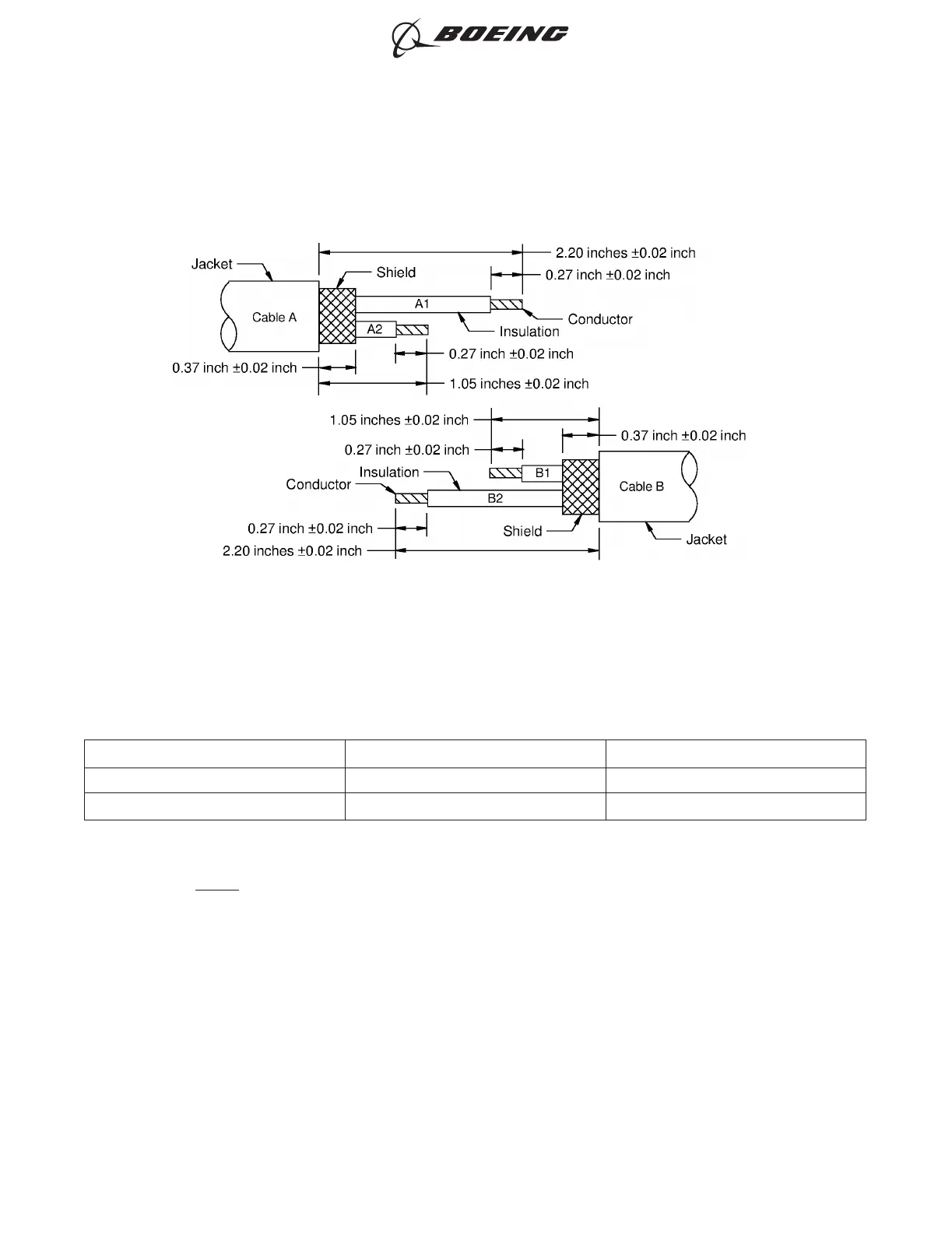

ONE CLASS 2 CABLE TO ONE CLASS 2 CABLE
Figure 13
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 35
Jun 15/2021D6-54446
