D. Kit Group P1N2, P2N2 or P3N2 - One Class 2 Cable to Two Class 1 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..

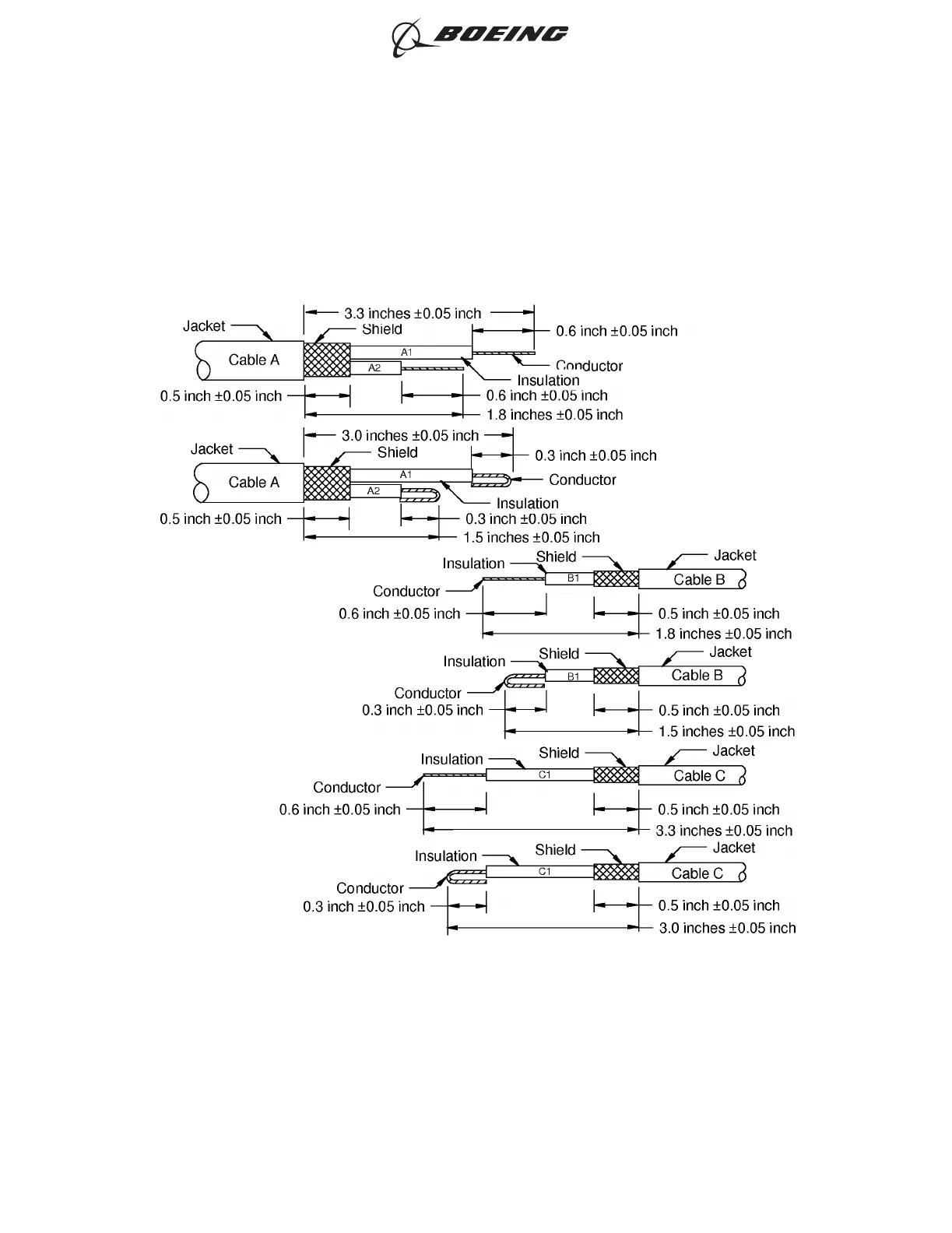

ONE CLASS 2 CABLE TO TWO CLASS 1 CABLES
Figure 33
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 135
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
