D. Sealed Splice Configurations for Unshielded Wires and Cables - One Wire to Two Wires - Tape,
Ties
For the conditions that are applicable for:
• The repair of a wire or a cable with a splice, refer to Subject 20-10-13
• The selection of the correct sealed splice configuration, refer to Paragraph 1.C.
Refer to Figure 49.
(1) Make a selection of a butt splice from Table 12 or Table 14.
Make sure that the splice has the smallest CAU range that can accept the total CAU of the
conductor.
Refer to Paragraph 1.D. for the procedure to calculate the CAU of the conductor.

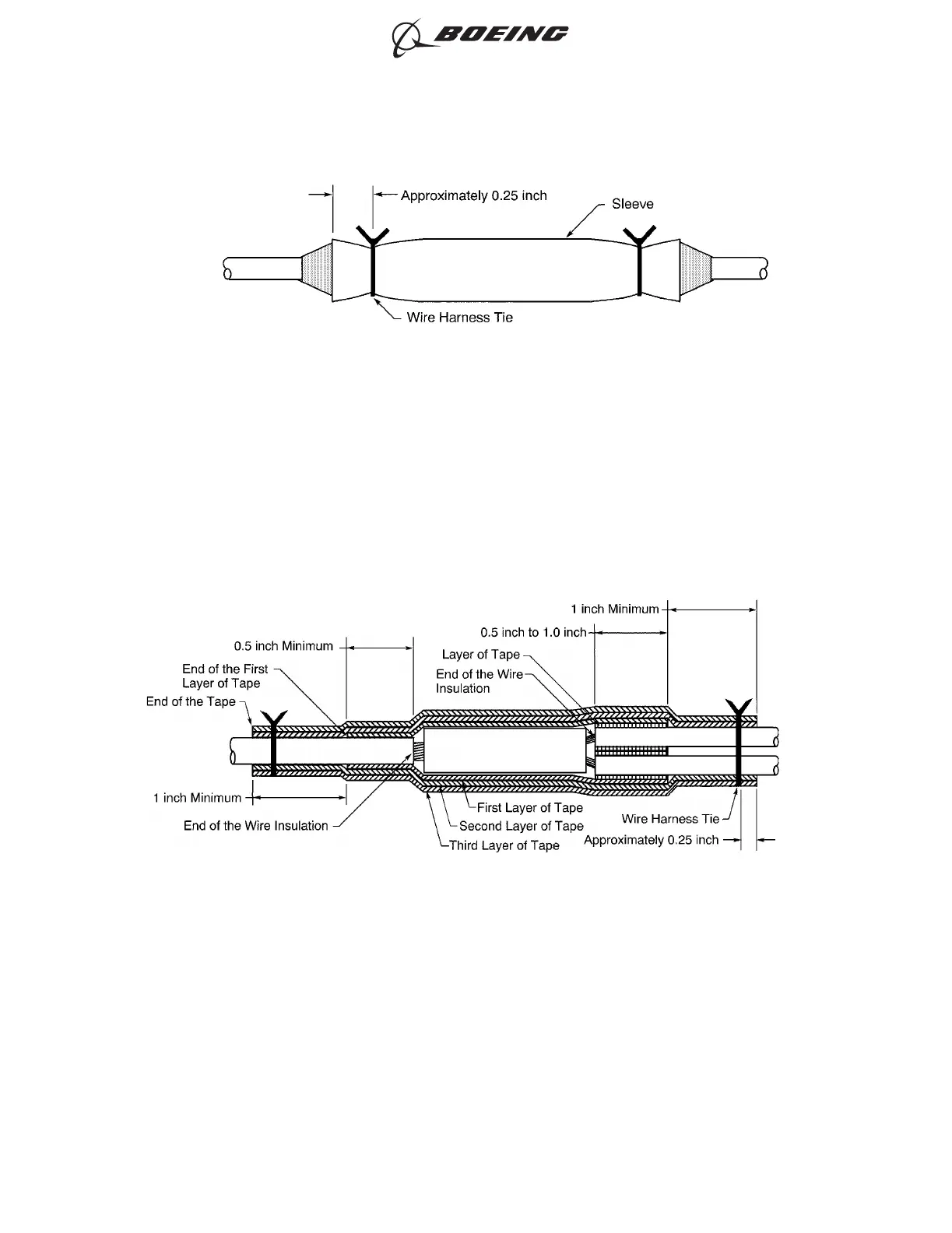

POSITION OF THE WIRE HARNESS TIES ON THE SLEEVE
Figure 48
CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 49
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 88
Feb 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
