(12) Slowly push the sleeve until the center of the sleeve is aligned with the center of the butt splice.
(13) Apply pressure with the fingers to the sleeve to push the air bubbles out.
(14) Assemble a lacing tape wire harness tie on each end of the splice assembly approximately 0.25
inch from the end of the sleeve.
Refer to:
• Subject 20-10-11 for the procedure to assemble a wire harness tie
• Figure 48 for the position of the wire harness ties.
Make sure that the Temperature Grade of the lacing tape is Temperature Grade B or higher.

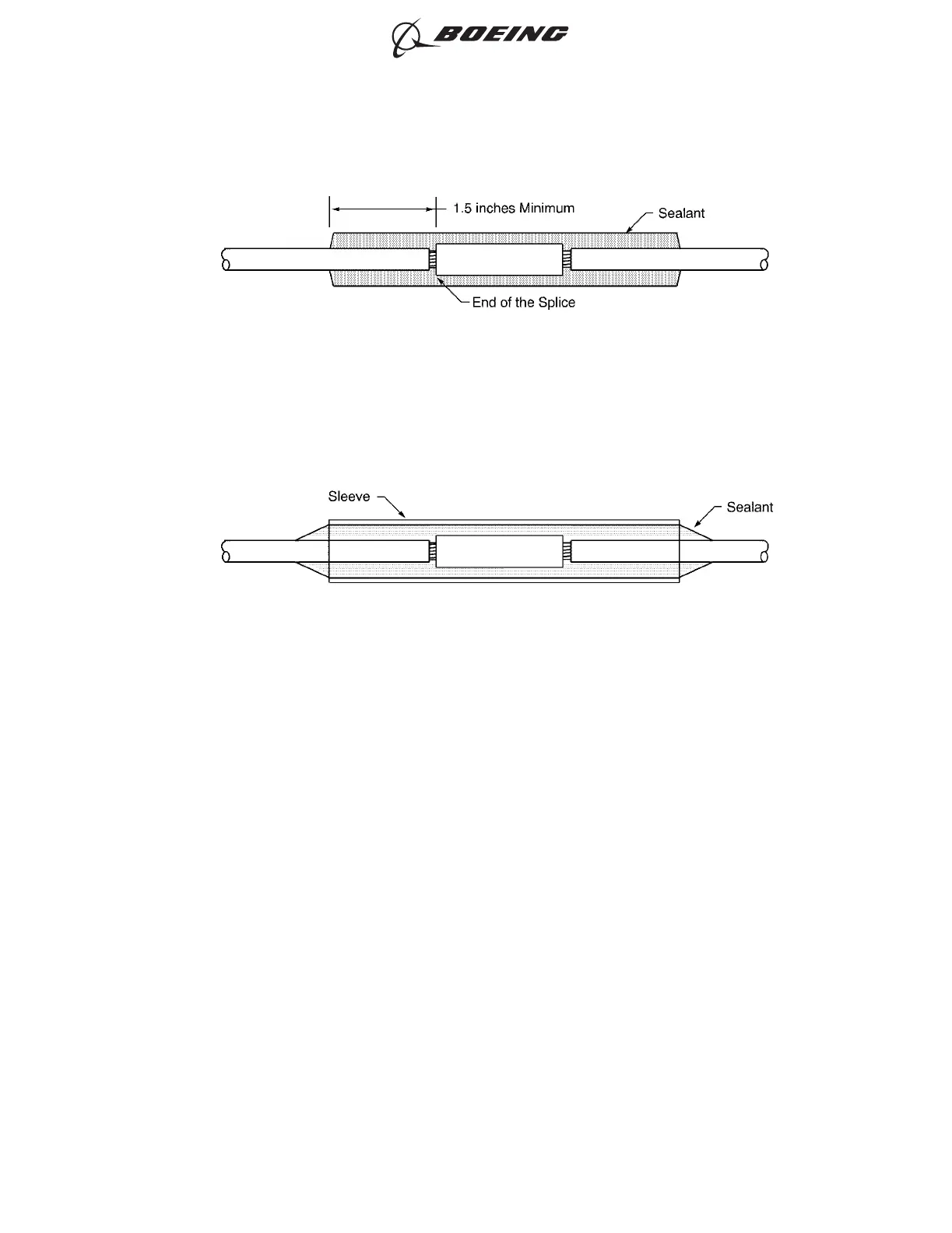

CONFIGURATION OF THE SEALANT ON THE SPLICE
Figure 46
POSITION OF THE SLEEVE ON THE SEALANT
Figure 47
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 87
Feb 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
