Boeing 707 - One Class 3 Shielded Cable to One Class 3 Shielded Cable

Table 128
CABLE TRIM DIMENSIONS
Cable Conductor
Trim Dimension
(inch)
Dimension Target Tolerance
A
C1
D1 0.28
±0.02D2 1.92
D3 2.20
C2
D1 0.28
±0.02D2 0.77
D3 1.05
C3
D1 0.28
±0.02D2 0.77
D3 1.05
2445820 S00061545581_V1

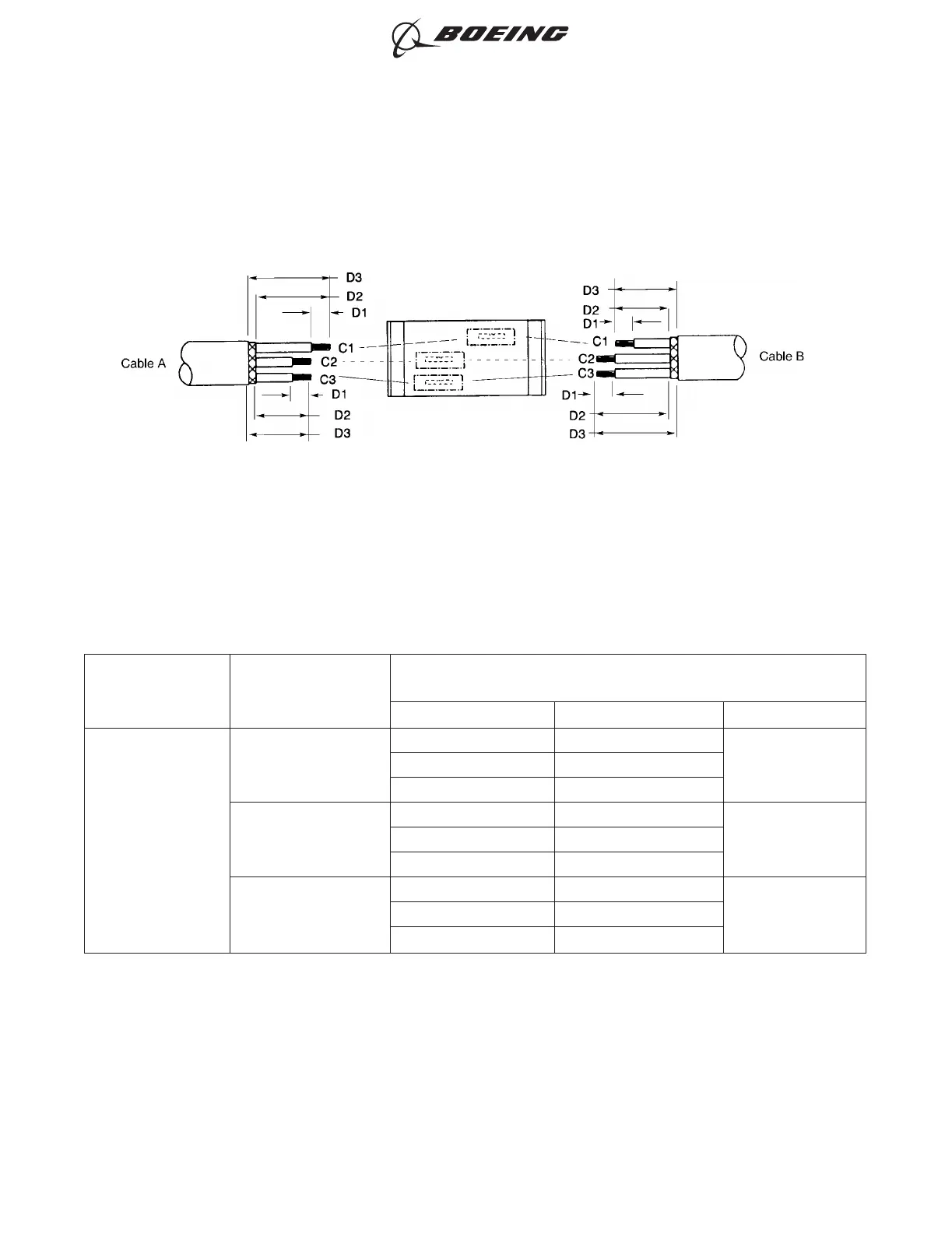

ONE CLASS 3 SHIELDED CABLE TO ONE CLASS 3 SHIELDED CABLE
Figure 287
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 317
Jun 15/2021D6-54446
