J. M7928/1 Terminal Lugs
Refer to Paragraph 2.M. for the procedure to assemble these terminals.
M7928/1 terminal lugs have a wire insulation grip.
M7928/1 terminal lugs are available from AMP (Tyco).
Table 22
M7928/1 TERMINAL LUG PART NUMBERS
Crimp Barrel Size
(Wire Size)
(AWG)
CAU Range
Stud Hole Size Part Number Supplier
Minimum Maximum
26 2 3
2 M7928/1-1
QPL
4 M7928/1-2
6 M7928/1-3
8 M7928/1-4
10 M7928/1-5
24 4 5
2 M7928/1-6
QPL
4 M7928/1-7
6 M7928/1-8
8 M7928/1-9
10 M7928/1-10

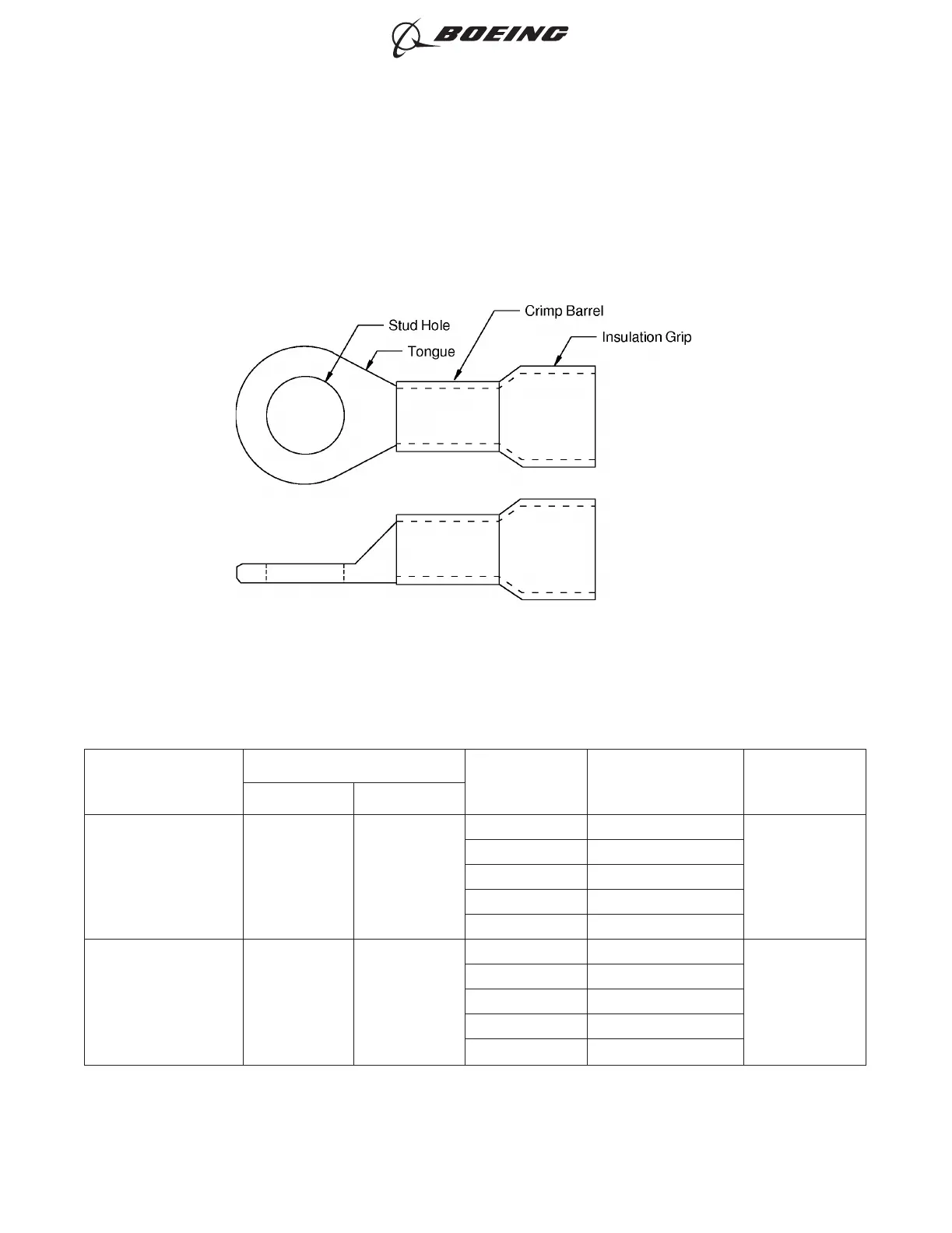

TYPICAL M7928/1 TERMINAL LUG
Figure 10
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 31
Feb 15/2016D6-54446
