Boeing 707 - Two Class 3 Shielded Cables to Two Class 3 Shielded Cables

Table 134
CABLE TRIM DIMENSIONS
Cable Conductor
Trim Dimension
(inch)
Dimension Target Tolerance
A
C1
D1 0.28
±0.02D2 1.92
D3 2.20
C2
D1 0.28
±0.02D2 0.77
D3 1.05
C3
D1 0.28
±0.02D2 0.77
D3 1.05
2445822 S00061545584_V1

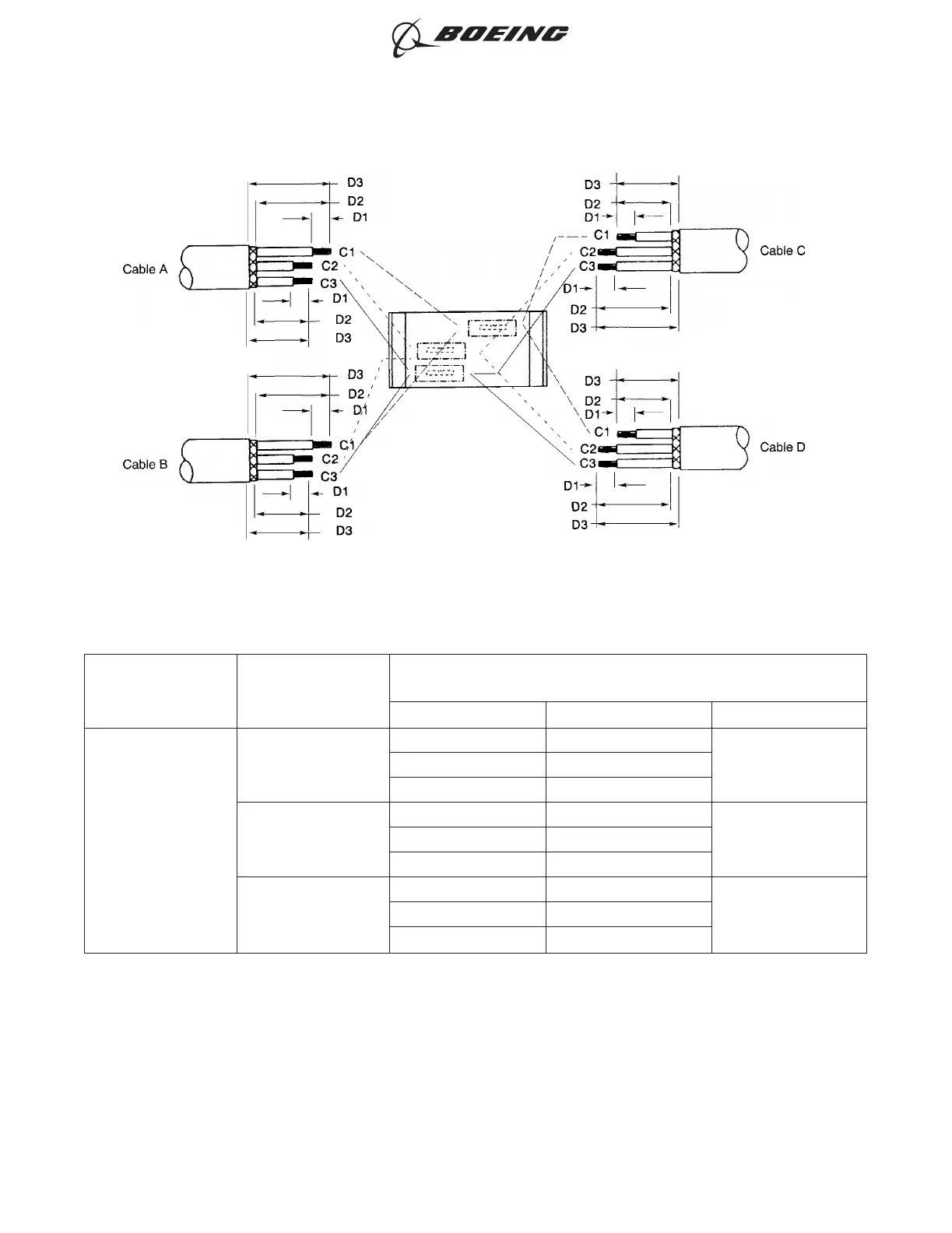

TWO CLASS 3 SHIELDED CABLES TO TWO CLASS 3 SHIELDED CABLES
Figure 290
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 324
Jun 15/2021D6-54446
