(b) Put the other solder sleeve on Cable B.
Make sure that the small end of the solder sleeve is put on the cable first.
(6) Put a seal sleeve on Wire A1.
(7) Put a seal sleeve on Wire B2.
H. Kit Groups P1N2, P2N2 or P3N2 - One Class 2 Cable to Two Class 1 Cables
Refer to Figure 14.
Table 16
CONNECTIONS
Wire Connection Wire Connected to
A1 Splice B1
A2 Splice C1
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
NOTE: The shield material has fused ends that hold the ends of the strands of the shield
together.
(2) If the splice kit has seal inserts and different size solder sleeves:
(a) Put these components on Cable A in this sequence:
• The outer sleeve
1.5 ±0.05 INCHES
A2
C1
CABLE A
CABLE B
CABLE C
CONDUCTOR
INSULATION
SHIELD JACKET
JACKET
CONDUCTOR
INSULATION
SHIELD
JACKET
SHIELD
A1
B1
CONDUCTOR
INSULATION
3.0 ±0.05 INCHES
0.3 ±0.05 INCH
0.3 ±0.05 INCH
0.5 ±0.05 INCH
1.5 ±0.05 INCHES
0.3 ±0.05 INCH
0.5 ±0.05 INCH
0.5 ±0.05 INCH
0.3 ±0.05 INCH
3.0 ±0.05 INCHES
2449580 S00061545741_V2

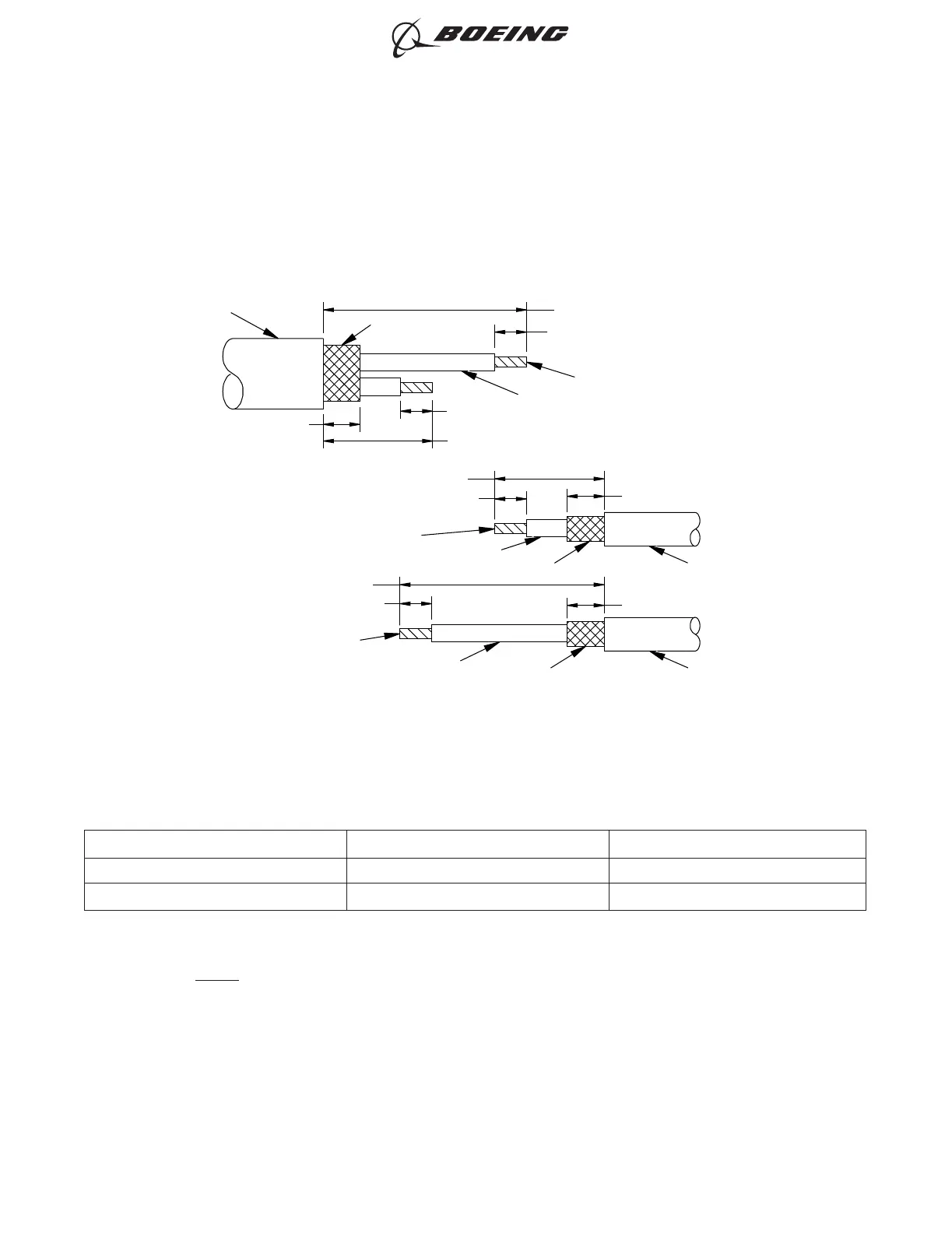

ONE CLASS 2 CABLE TO TWO CLASS 1 CABLES
Figure 14
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 91
Feb 15/2022D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
