I. Sealed Splice Configurations for Unshielded Wires and Cables for High Temperature - One
Cable to One Cable - Tape, Sleeve
For the conditions that are applicable for:
• The repair of a wire or a cable with a splice, refer to Subject 20-10-13
• The selection of the correct sealed splice configuration, refer to Paragraph 1.C.
Refer to Figure 119.
(1) Prepare the cable.
Refer to:
• Figure 120
• Subject 20-00-15 for the outer jacket removal procedures.
Make sure that:
• The distance from the end of the outer jacket to the center of the nearest sealed splice is
1.75 inches ±0.25 inch
• The distance from the center of a sealed splice on one wire to the center of the nearest
sealed splice on another wire is 2.38 inches ±0.25 inch.

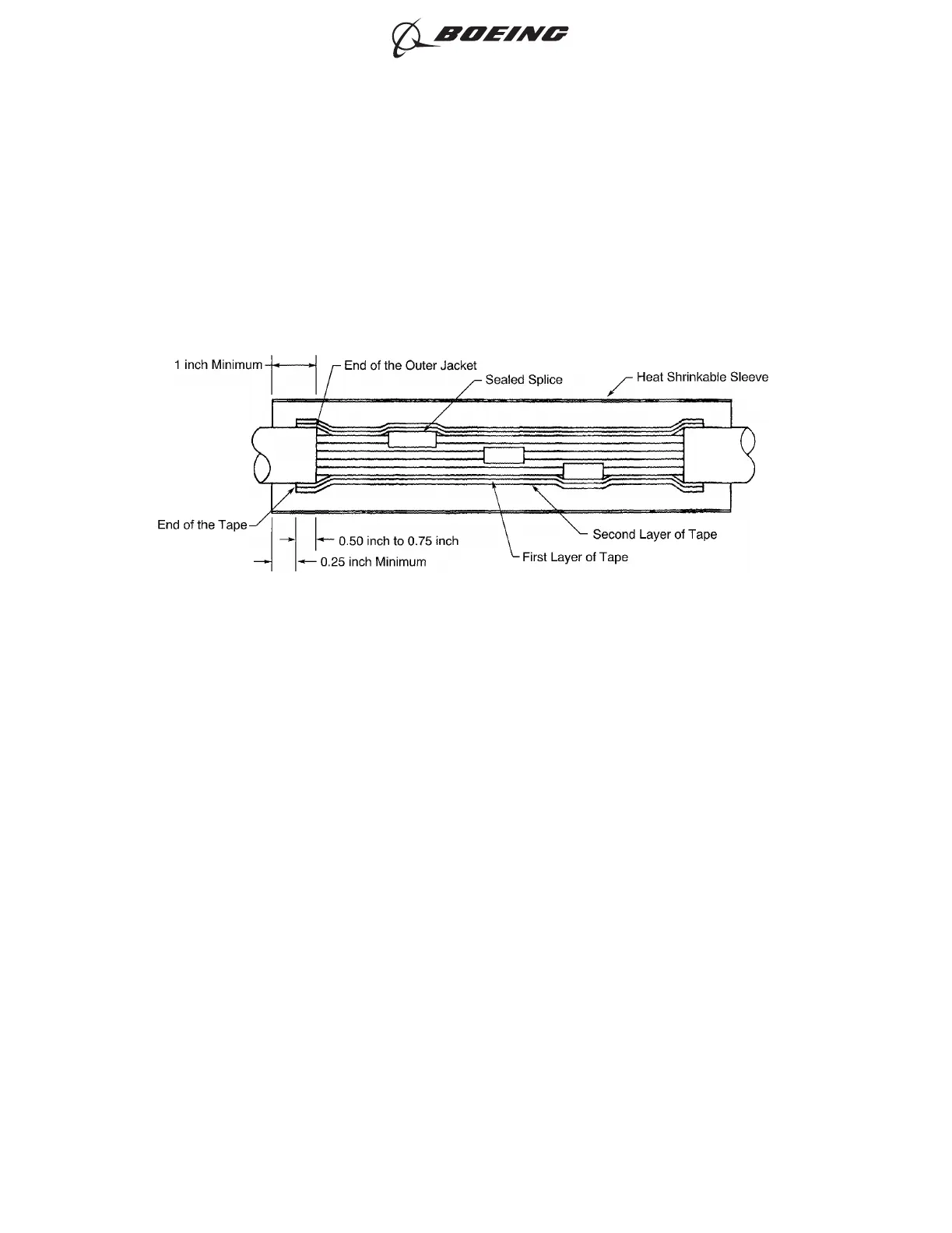

CONFIGURATION OF THE CABLE SPLICE ASSEMBLY
Figure 119
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 146
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
