(3) If it is specified, increase the diameter of the wire. Refer to Table 5 and Subject 20-30-22.
(4) Make a selection of a crimp tool from Table 5.
(5) Put the terminal in the crimp tool.
(6) Lightly apply pressure to hold the terminal in the tool.
Make sure that the shape of these parts of the terminal are not changed:
• The insulation barrel
• The wire barrel.
(7) Put the wire in the terminal so that:
• The end of the wire is aligned with the forward end of the wire barrel
• The end of the insulation is aligned with the forward end of the insulation barrel.
Refer to Figure 1.
(8) Crimp the terminal.
(9) Install a terminal housing on these terminals:
• The 42640-2 terminal for the Speaker Terminal wires
• The 61873-1 terminal for the Passenger Information Signal section of the PSU.
B. Terminal Insulation
(1) Install insulation on these terminals for the Passenger Address Speaker terminals:
• The 42628-2
• The 42888-1
• The 61048-1.
Refer to Figure 3.

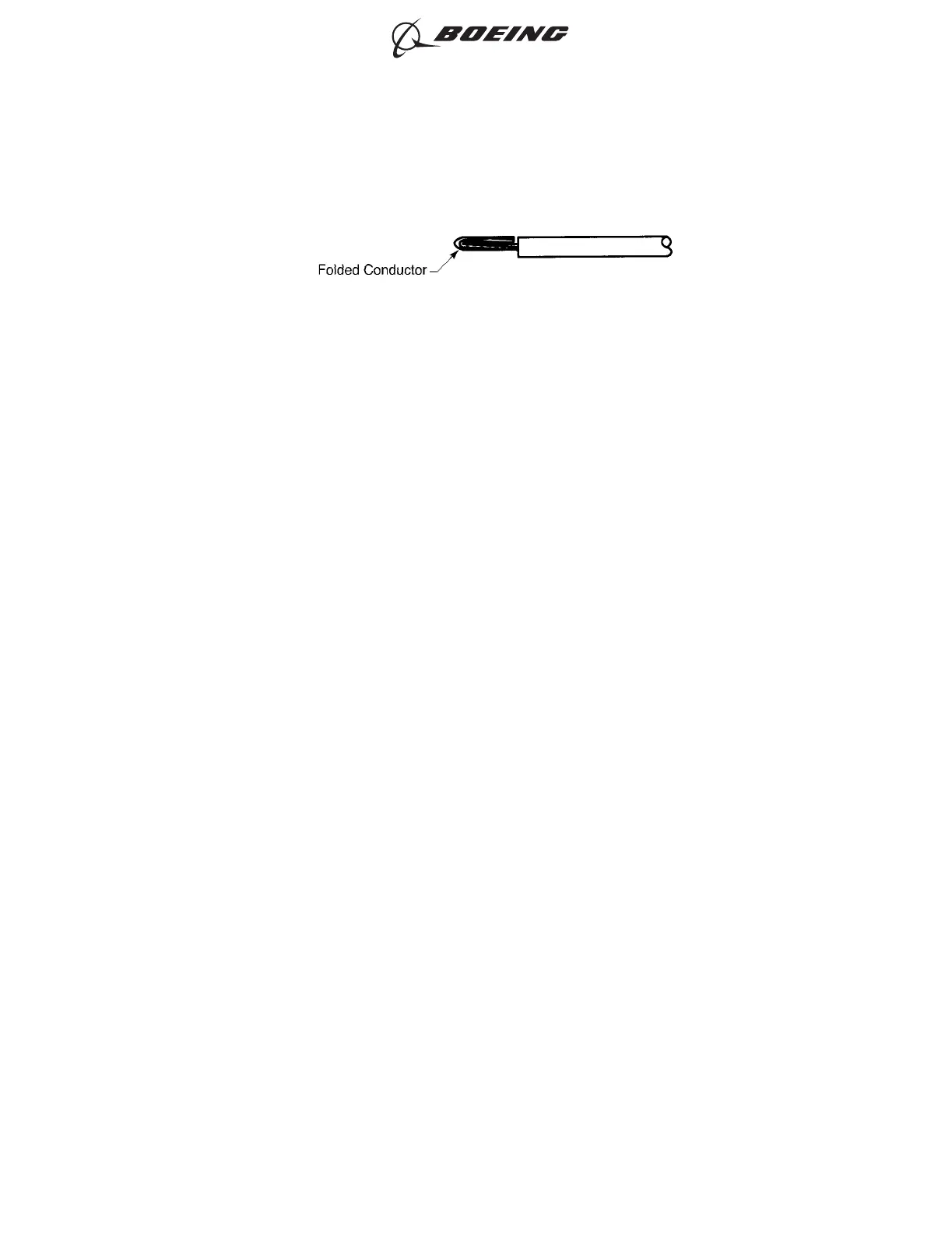

CONDUCTOR FOLDED BACK
Figure 2
ASSEMBLY OF AMP (TYCO) FASTON TERMINALS
