Boeing 707 - Sealed Splice Configurations for Unshielded Wires and Cables - One Wire to One Wire - Tape, Ties

Table 66 SEALED SPLICE ASSEMBLY CONFIGURATIONS (Continued)
One End of
Splice
Assembly
Other End of
Splice
Assembly
CAU Range
Applicable
Condition
Splice Assembly
Minimum Maximum Configuration Procedure
Two Wires Two Wires 3 457
Fuel Vapor Tape, Ties Paragraph 7.E.
No Fuel Vapor Tape, Ties Paragraph 7.E.
One or Two
Wires
One or Two
Wires
3 67 No Fuel Vapor Splice Kit Paragraph 7.G.
3 457 No Fuel Vapor Sleeve Paragraph 7.H.
One to Five
Wires
One to Five
Wires
3 457 No Fuel Vapor
Sleeve - 3 to 5
Hole Wire Seal
Paragraph 7.J.
19 67 No Fuel Vapor
Splice Kit - 3 Hole
Wire Seal
Paragraph 7.I.
One Cable One Cable 3 457
Fuel Vapor Tape, Ties Paragraph 7.K.
No Fuel Vapor
Tape, Ties Paragraph 7.K.
Tape, Sleeve Paragraph 7.L.
B. Sealed Splice Configurations for Unshielded Wires and Cables - One Wire to One Wire - Tape,
Ties
For the conditions that are applicable for:
• The repair of a wire or a cable with a splice, refer to Subject 20-10-13
• The selection of the correct sealed splice configuration, refer to Paragraph 1.C.

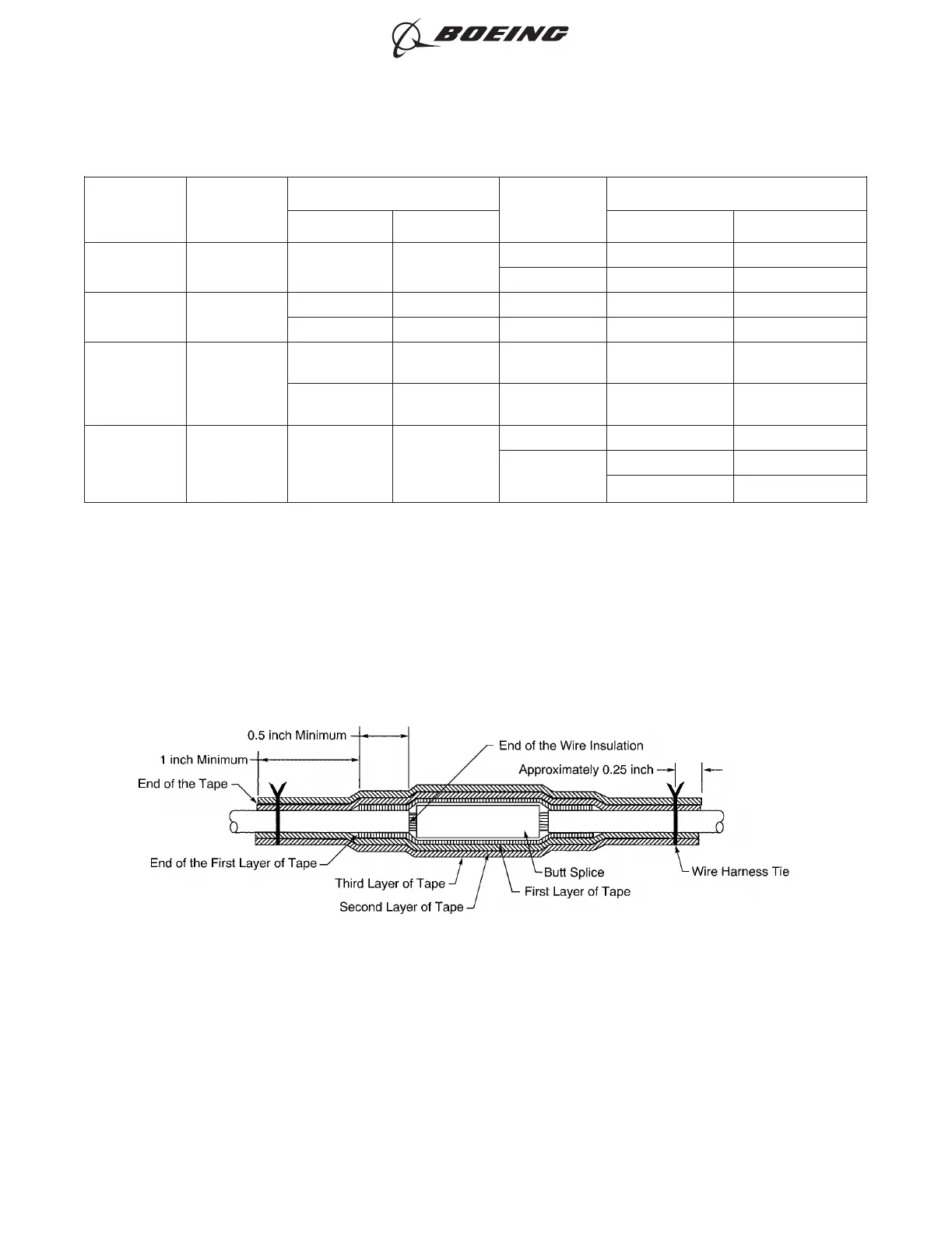

Refer to Figure 39.
2447125 S00061545469_V1
CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 39
ASSEMBLY OF SPLICES
