(c) Remove the necessary length of the shield to make the distance from the end of the shield
to end of the outer jacket equal to 0.32 inch ±0.06 inch.
CAUTION
DO NOT CUT AGAINST THE OUTER JACKET WITH A KNIFE. DAMAGE
TO THE JACKET CAN OCCUR.
(4) Put the end cap on the cable. Refer to Figure 4.
Make sure that the end of the cable is against the closed end of the end cap.
(5) Shrink the end cap in position. Refer to Subject 20-10-14.
5. APPROVED TOOL SUPPLIERS
A. Crimp Tools
Table 10
CRIMP TOOL SUPPLIERS
Crimp Tool Supplier
46063 AMP
58573-1 AMP
59239-4 AMP
59250 AMP
69260-1 AMP
69272-1 AMP
DCT4-101 Daniels
MR8-49 Burndy
WA27XE-EP Daniels

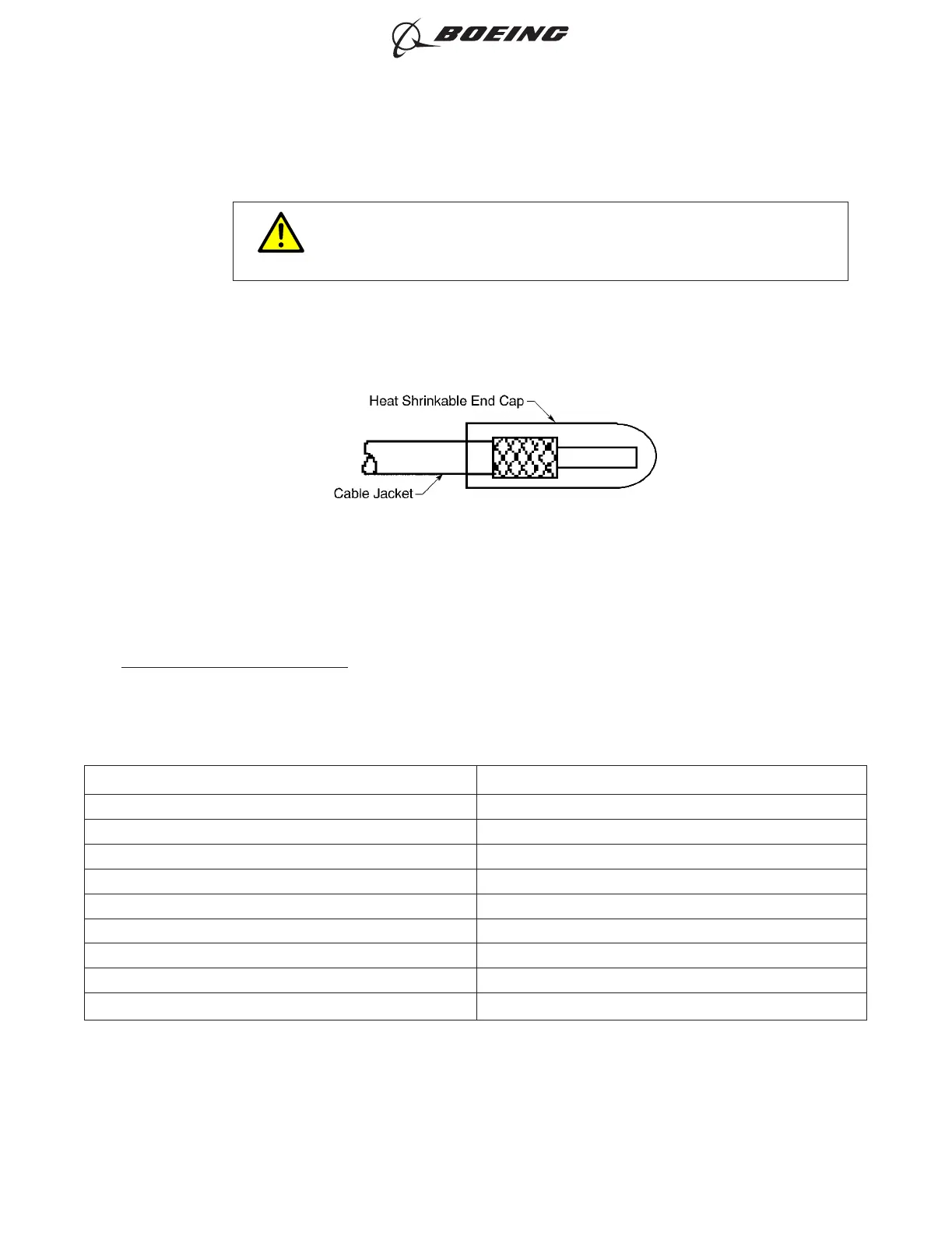

POSITION OF THE HEAT SHRINKABLE END CAP ON THE COAX CABLE
Figure 4
ASSEMBLY OF END CAPS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-16
Page 10
Oct 15/2017D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
