Boeing 707 - Sealed Splice Configurations for Shielded Wire and Cable for High Temperature - Solder Sleeve Splice Kit - One Shielded Wire to One Shielded Wire

(8) Make a selection of a crimp tool from Table 45.
Refer to Table 142 for the crimp barrel size of the conductor splice.
(9) Make a selection of a high temperature type, hot air gun from Table 49.
(10) Assemble the splice. Refer to Table 143 for the procedure.
B. Sealed Splice Configurations for Shielded Wire and Cable for High Temperature - Solder Sleeve
Splice Kit - One Shielded Wire to One Shielded Wire
Refer to Paragraph 16.A. first to start this procedure.
Refer to Figure 298.
(1) Prepare the end of each cable. Refer to Figure 299.
2445825 S00061545588_V1

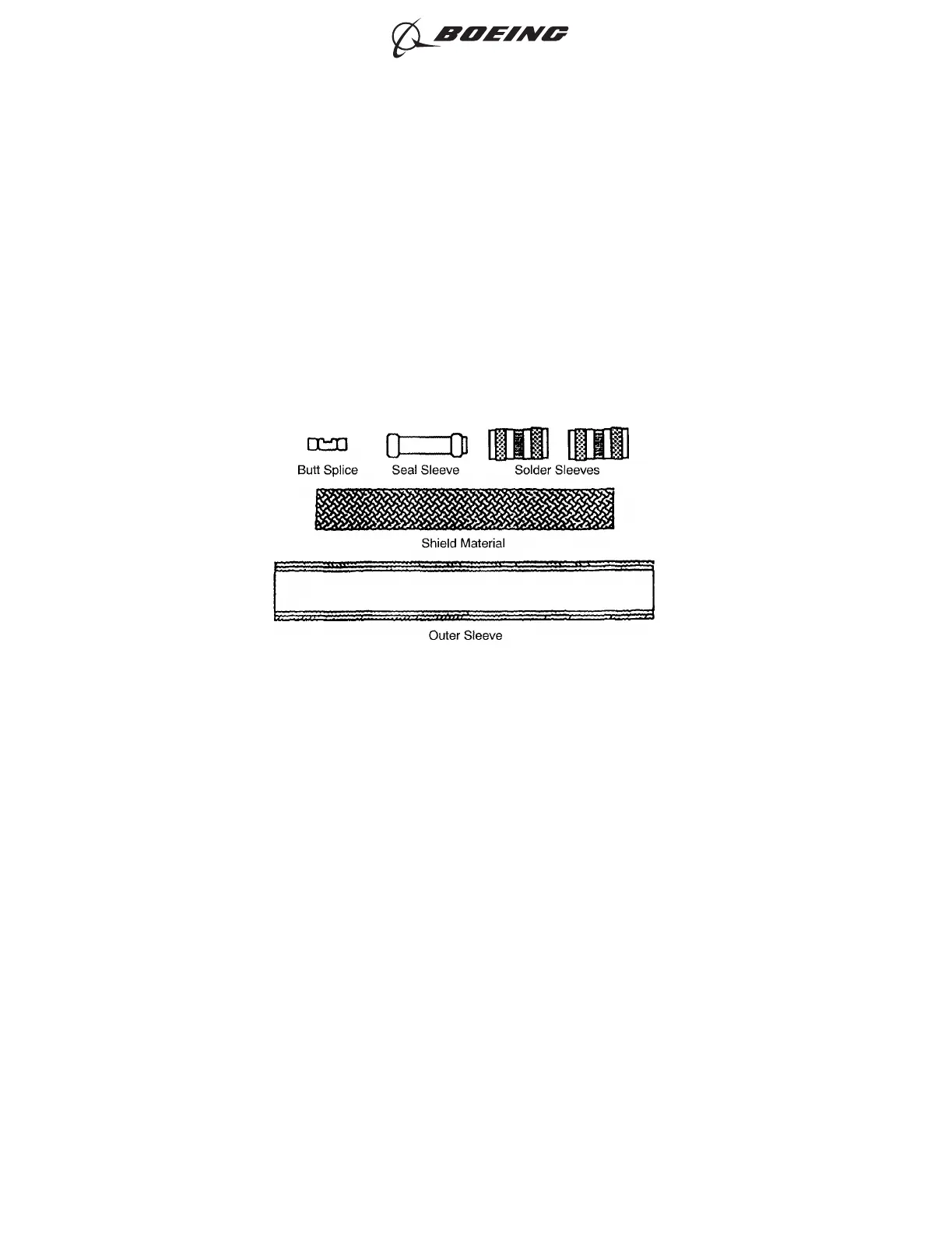

COMPONENTS OF THE RAYCHEM D-150-0250 SOLDER SLEEVE SPLICE KIT
Figure 298
ASSEMBLY OF SPLICES
