Boeing 707 - Two Class 2 Shielded Cables to Two Class 2 Shielded Cables

I. Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - Two Class
2 Shielded Cables to Two Class 2 Shielded Cables
Table 119
SPLICE KITS FOR TWO CLASS 2 SHIELDED CABLES TO TWO CLASS 2 SHIELDED CABLES
Jacket Maximum
O.D.
Shield Minimum
O.D.
Conductor CAU Range Solder Shield Splice Kit
Minimum Maximum Part Number Supplier
0.18 0.10 8 27 D-150-0175 Tyco/Raychem
0.22 0.14 19 67 D-150-0176 Tyco/Raychem
0.34 0.19 43 138 D-150-0273 Tyco/Raychem
2445817 S00061545577_V1

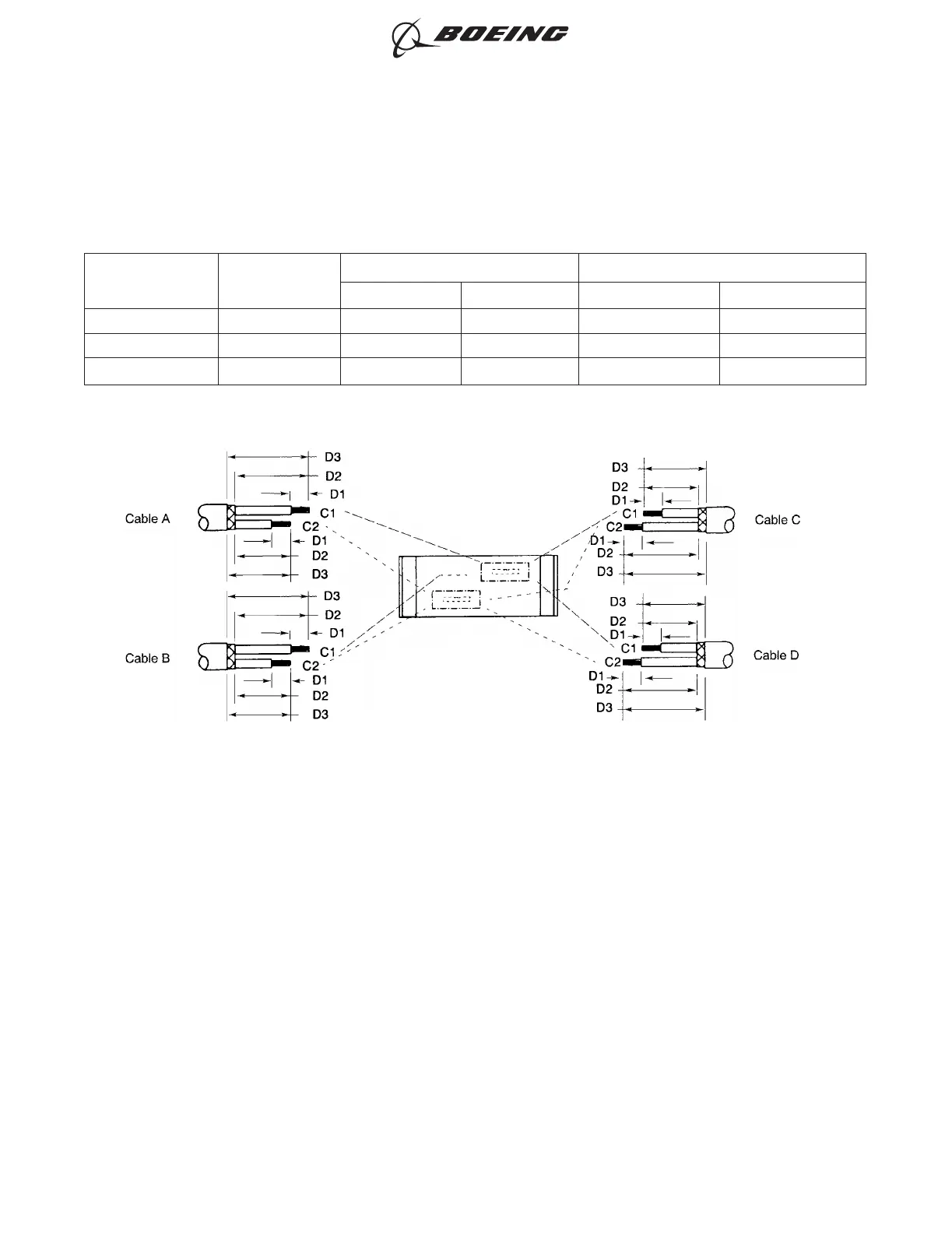

TWO CLASS 2 SHIELDED CABLES TO TWO CLASS 2 SHIELDED CABLES
Figure 283
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 309
Jun 15/2021D6-54446
