C. Assembly with a BACA14AN() Splice Adapter
(1) To make a selection of a splice adapter from Table 5, add the CAU of the conductor to the CAU of
the adapter.
Make sure that the total CAU is within the minimum and maximum CAU of the crimp barrel.
(2) Put the wire into the adapter so that the end of the insulation is against the bottom of the
insulation grip support of the adapter. Refer to Figure 4.
(3) Assemble the terminal or splice. Refer to the applicable Subject for the assembly.
Make sure that the end of the adapter is against the bottom of the crimp barrel. Refer to Figure 4.
D. Assembly with a Filler Wire Stub
CAUTION
ONLY ONE FILLER WIRE STUB CAN BE USED TO INCREASE THE CAU OF A
CONDUCTOR.
(1) Make a selection of a filler wire that will give the necessary CAU for the crimp barrel when the
CAU of the filler wire is added to the CAU of the conductor.
(2) Assemble the terminal or splice.
Refer to:

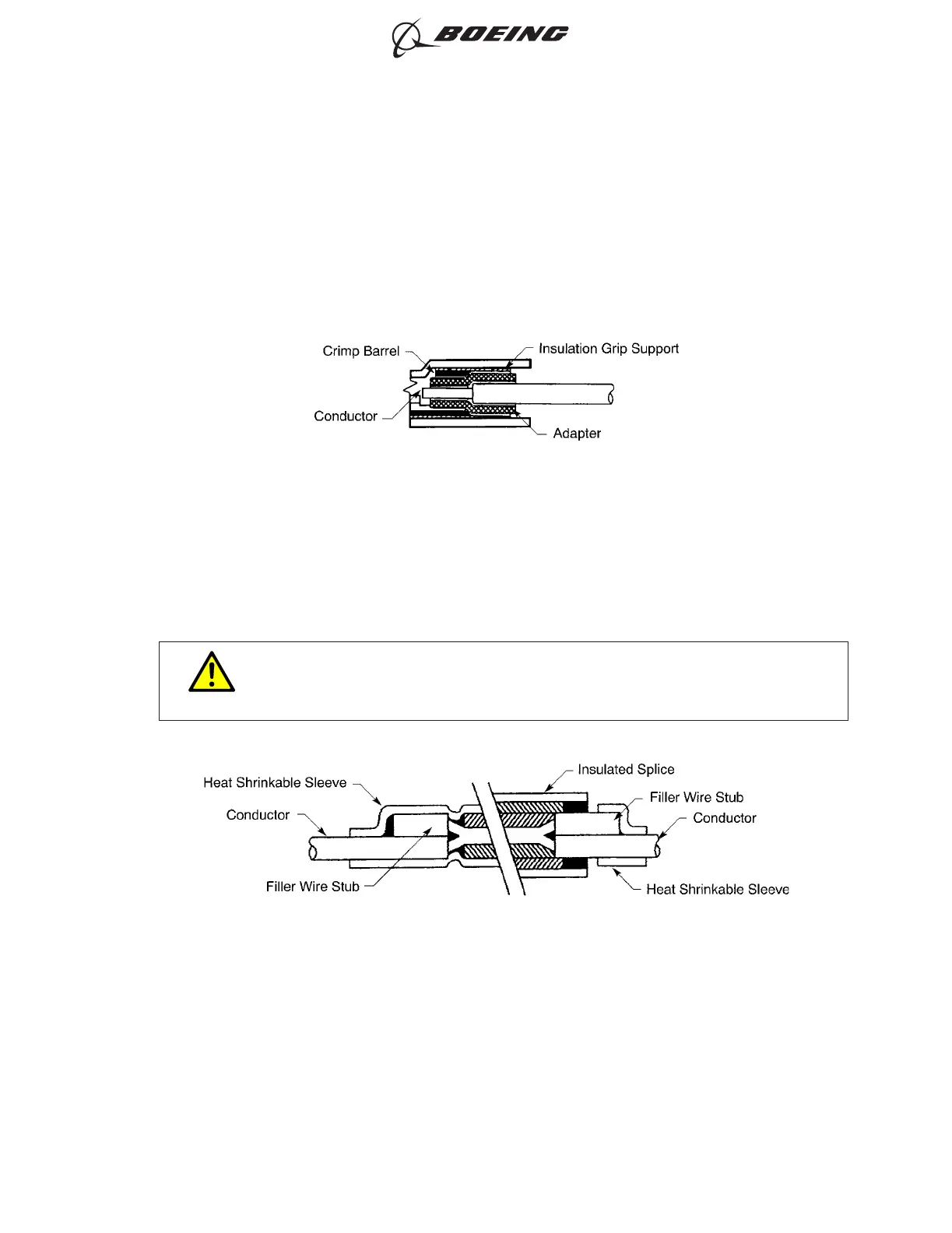

POSITION OF THE WIRE AND SPLICE ADAPTER IN THE CRIMP BARREL
Figure 4
CONFIGURATION OF AN ASSEMBLY WITH FILLER WIRE STUBS
Figure 5
ASSEMBLY OF TERMINALS AND SPLICES UNDER SPECIAL CONDITIONS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-22
Page 10
Oct 15/2017D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
