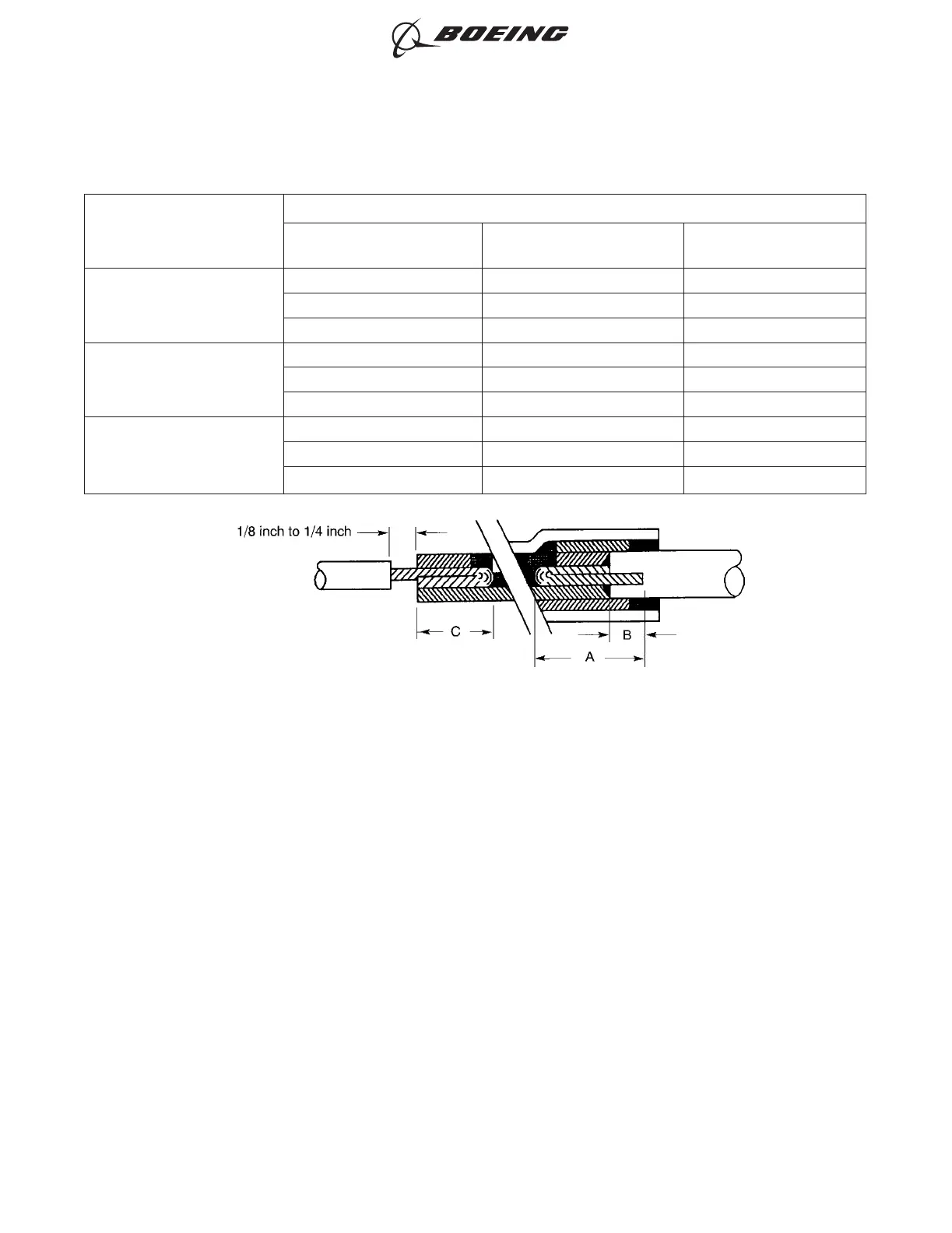

Table 7
CONDITIONS FOR A CONDUCTOR THAT IS FOLDED BACK
Crimp Barrel Size
Length
Dimension
Minimum
(inch)
Maximum
(inch)
22-18
A 15/32 17/32
B 7/32 9/32
C 7/32 9/32
16-14
A 7/16 1/2
B 3/16 1/4
C 7/32 9/32
12-10
A 21/32 23/32
B 1/4 5/16
C 3/8 7/16
(1) Remove the necessary length of insulation from the end of the wire so that the conductor can be
folded back.
Refer to Figure 3 and Table 7.
(2) Fold the conductor back on itself.
(3) Assemble the terminal or splice.
Refer to the applicable Subject for the assembly.
DIMENSIONS FOR A CONDUCTOR THAT IS FOLDED BACK
Figure 3
ASSEMBLY OF TERMINALS AND SPLICES UNDER SPECIAL CONDITIONS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-22
Page 9
Oct 15/2015D6-54446
