F. Kit Group T1( )2 - One Class 2 Cable and One Class 1 Cable to Two Class 1 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B.

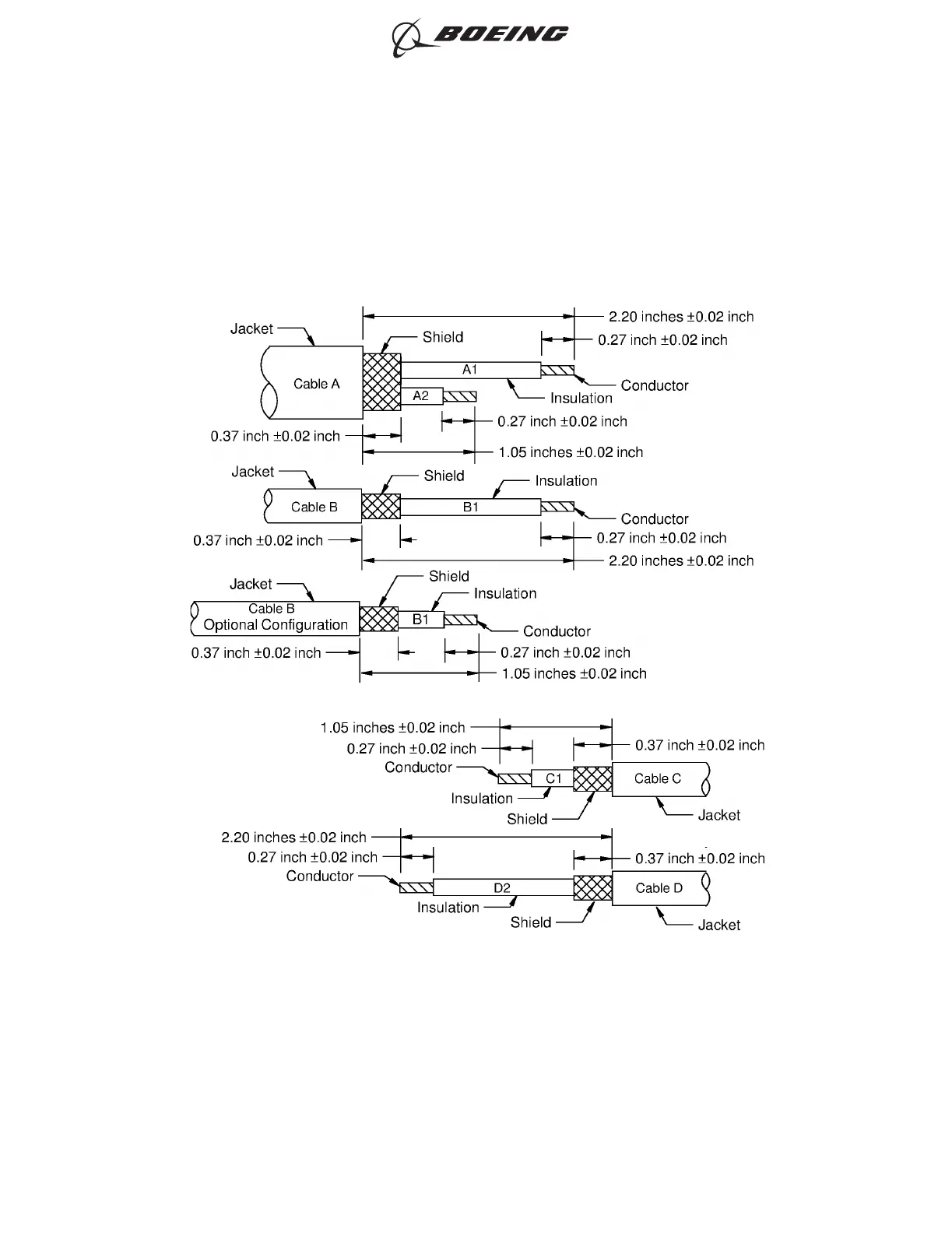

ONE CLASS 2 CABLE AND ONE CLASS 1 CABLE TO TWO CLASS 1 CABLES
Figure 12
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 32
Oct 15/2020D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
