J. Kit Group P1N1, P2N1, P3N1 or P4N1 - One Class 1 Cable to Two Class 1 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..

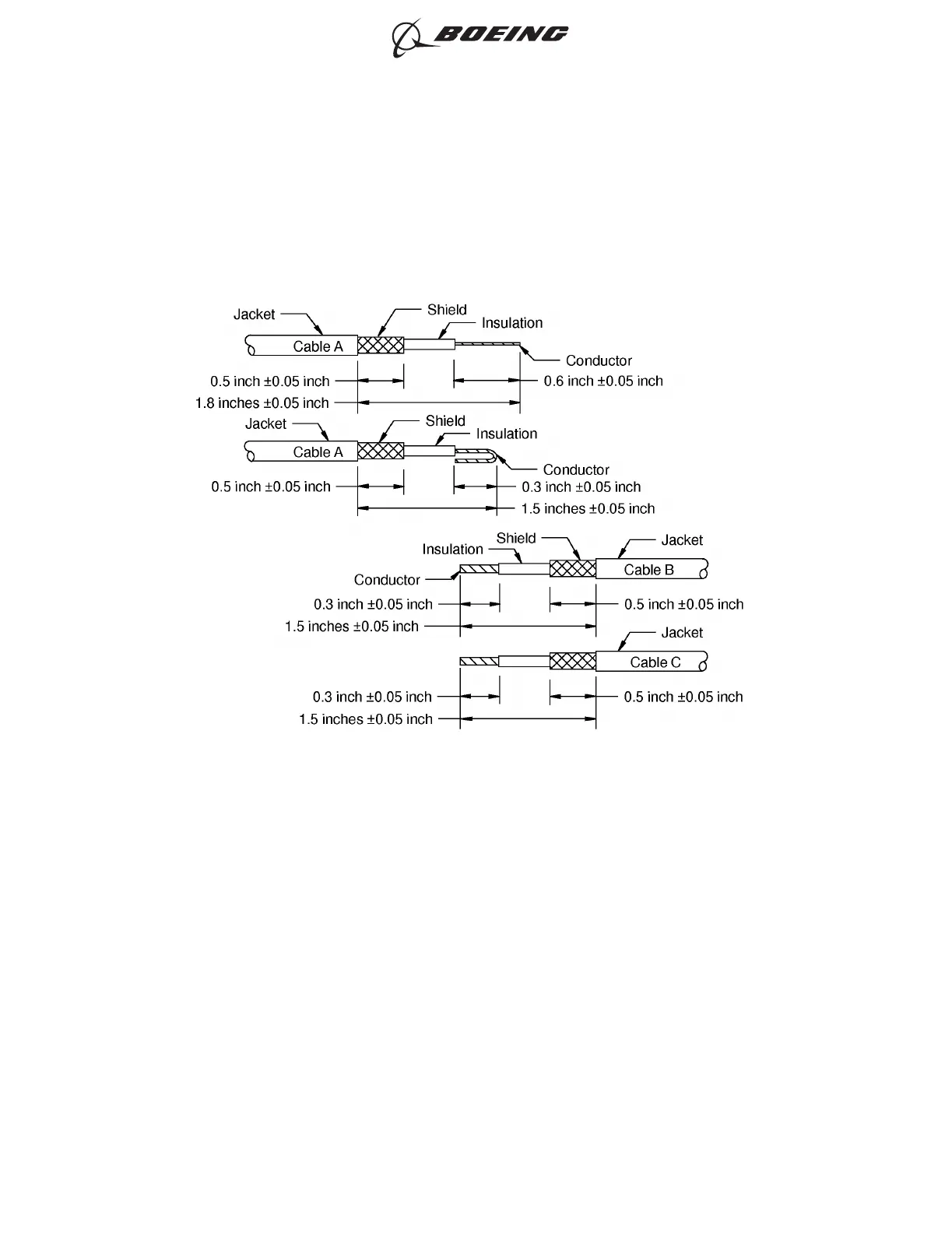

Refer to Figure 39.
ONE CLASS 1 CABLE TO TWO CLASS 1 CABLES
Figure 39
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 152
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
