Boeing 707 - Two Class 3 Shielded Cables to Three Class 3 Shielded Cables

Q. Sealed Splice Configurations for Shielded Wire and Cable - Solder Shield Splice Kit - Two Class
3 Shielded Cables to Three Class 3 Shielded Cables
Table 135
SPLICE KITS FOR TWO CLASS 3 SHIELDED CABLES TO THREE CLASS 3 SHIELDED CABLES
Jacket Maximum
O.D.
Shield Minimum
O.D.
Conductor CAU Range Solder Shield Splice Kit
Minimum Maximum Part Number Supplier
0.18 0.10 3 15 D-150-0179 Tyco/Raychem
0.22 0.14 8 27 D-150-0180 Tyco/Raychem
0.34 0.19 19 67 D-150-0181 Tyco/Raychem
2445823 S00061545585_V1

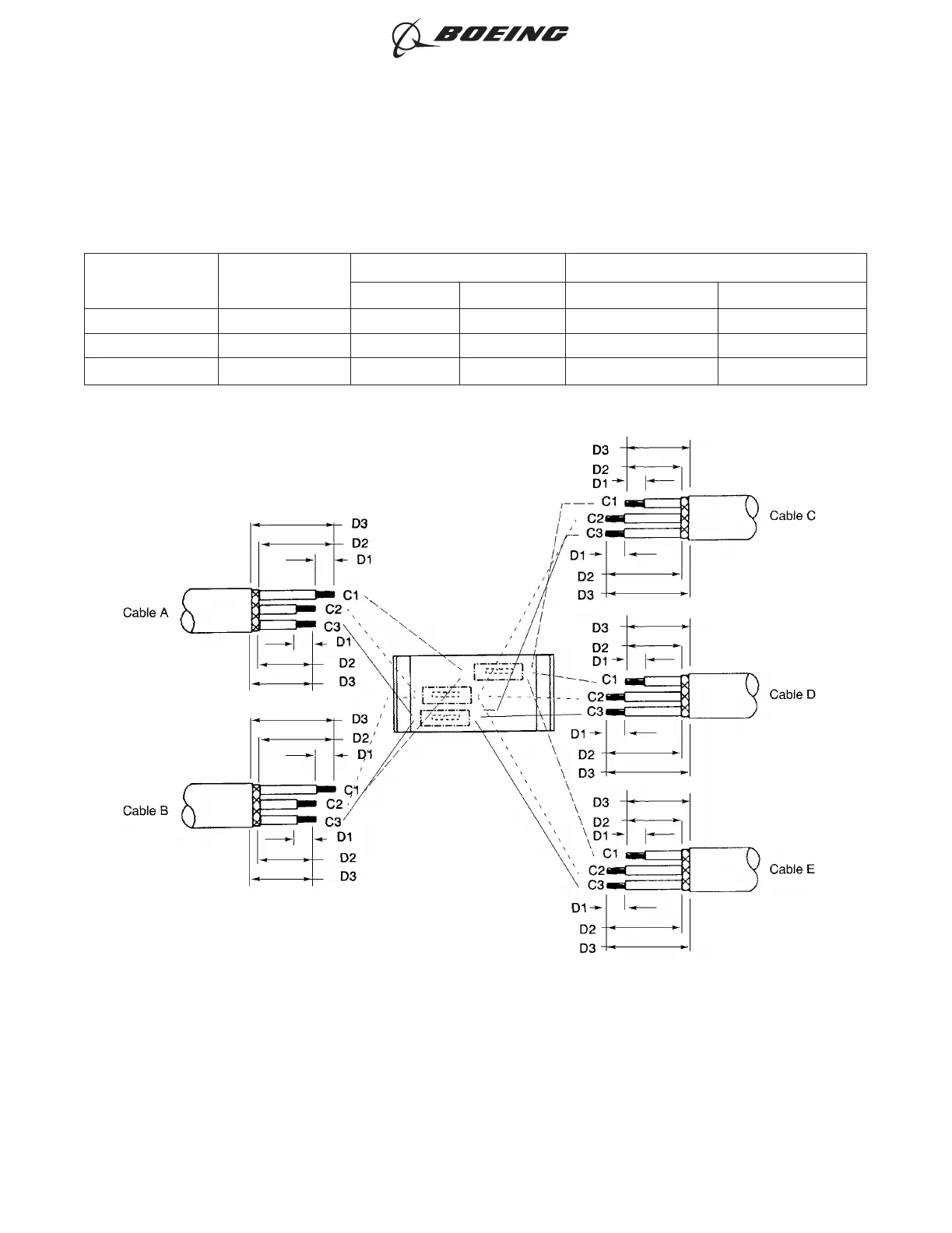

TWO CLASS 3 SHIELDED CABLES TO THREE CLASS 3 SHIELDED CABLES
Figure 291
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 326
Jun 15/2021D6-54446
