Boeing 707 - Kit Groups T1( )2, T2( )2, T3( )2 or T4( )2 - One Class 2 Cable to Two Class 1 Cables

(7) Put a seal sleeve on Wire B2.
H. Kit Groups T1( )2, T2( )2, T3( )2 or T4( )2 - One Class 2 Cable to Two Class 1 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B.
Refer to Figure 14.
Table 16
CONNECTIONS
Wire Connection Wire Connected to
A1 Splice B1
A2 Splice C1
(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an
equivalent tool.
NOTE: The shield material has fused ends that hold the ends of the strands of the shield
together.
(2) If the splice kit has seal inserts and different size solder sleeves:
(a) Put these components on Cable A in this sequence:
• The outer sleeve
• A seal insert, if a build-up sleeve is not specified for the cable
• The small solder sleeve
• The shield material
JACKET
SHIELD
CONDUCTOR
INSULATION
A1
1.05 ±0.02 INCHES
0.37 ±0.02 INCH
CABLE A
2.20 ±0.02 INCHES
0.27 ±0.02 INCH
A2
0.27 ±0.02 INCH
CABLE B
JACKET
CONDUCTOR
INSULATION
SHIELD
B1
1.05 ±0.02 INCHES
0.27 ±0.02 INCH
0.37 ±0.02 INCH
C1
CABLE C
CONDUCTOR
INSULATION
SHIELD JACKET
2.20 ±0.02 INCHES
0.27 ±0.02 INCH
0.37 ±0.02 INCH
2449833 S00061545784_V2

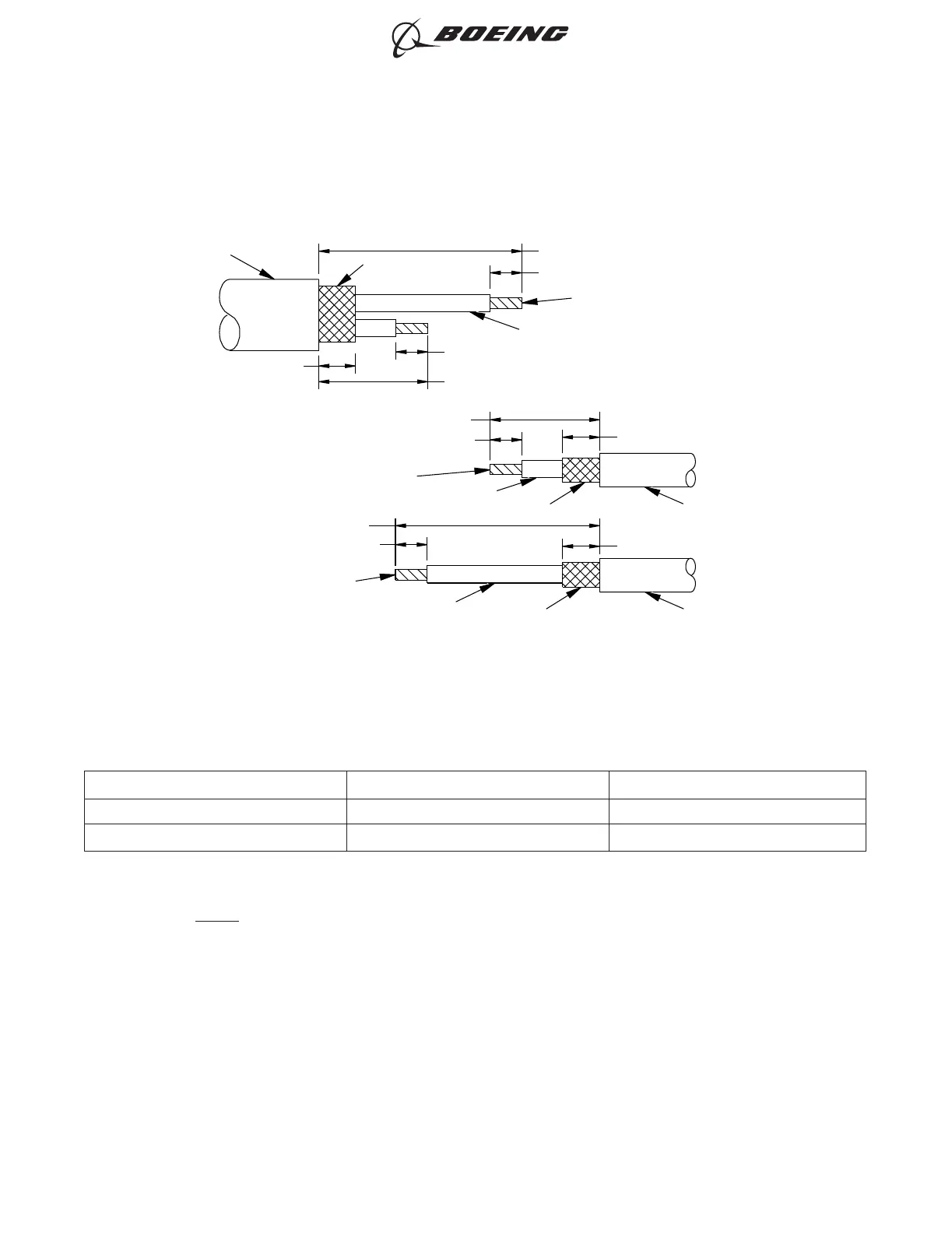

ONE CLASS 2 CABLE TO TWO CLASS 1 CABLES
Figure 14
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 37
