3. CABLE PREPARATION - STANDARD CONFIGURATIONS

A. Kit Groups T1( )1, T2( )1, T3( )1 or T4( )1 - One Class 1 Cable to One Class 1 Cable

For the conditions that are applicable for this procedure, refer to Paragraph 2.B..

The Diameter of Cable A must be equal to or less than the Diameter of Cable B.

Refer to Figure 7.

Table 9

CONNECTIONS

Wire Connection Wire Connected to

A1 Splice B1

(1) Remove approximately 0.05 inch from each end of the shield material with a pair of scissors or an

equivalent tool.

NOTE: The shield material has fused ends that hold the ends of the strands of the shield

together.

(2) Put these splice assembly components on Cable A in this sequence:

• The outer sleeve

• A solder sleeve

• The shield material

Make sure that the small end of the small solder sleeve is put on the cable first.

(3) Put the other solder sleeve on Cable B.

2449826 S00061545777_V1

ONE CLASS 1 CABLE TO ONE CLASS 1 CABLE

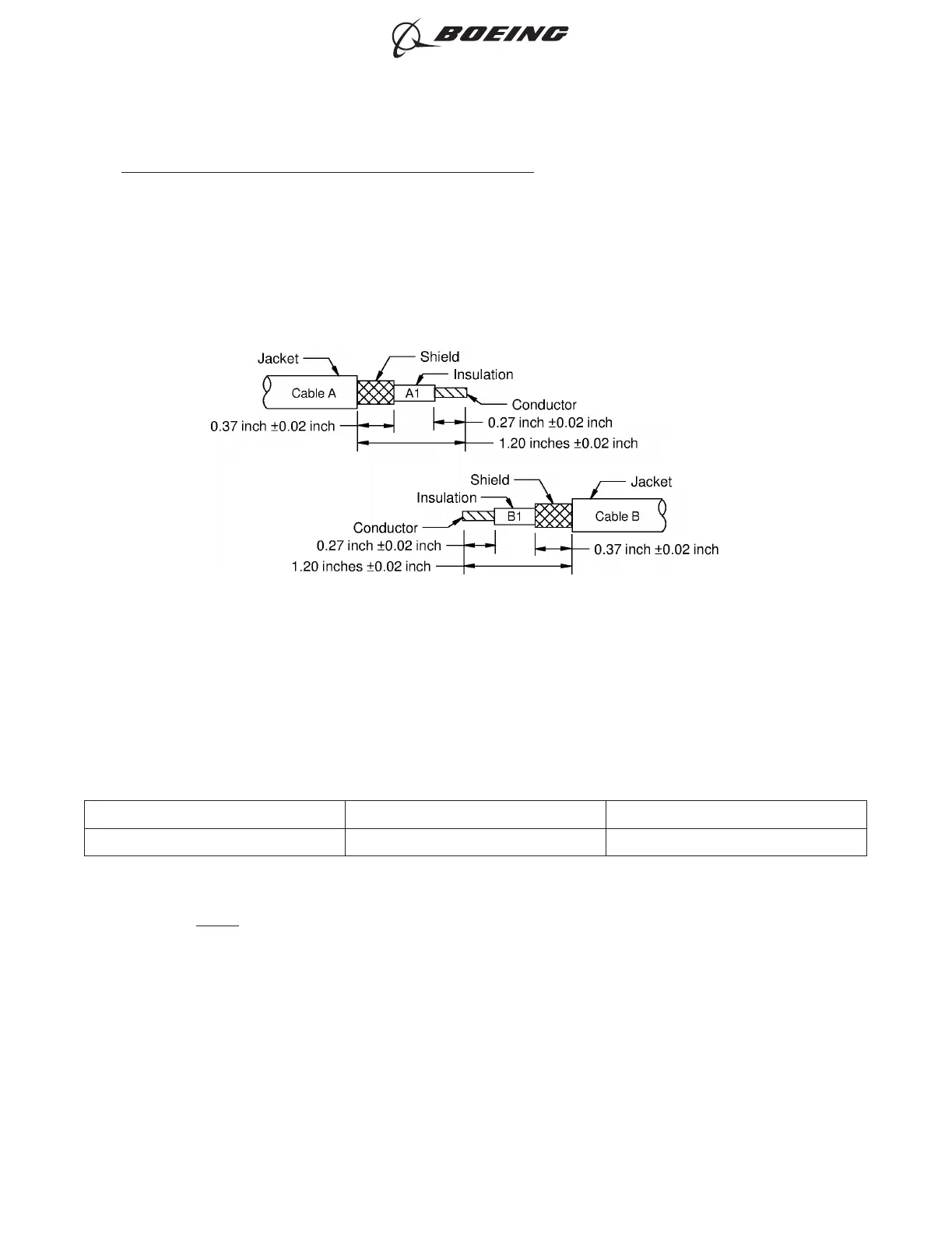

Figure 7

ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES

707, 727-787

STANDARD WIRING PRACTICES MANUAL

20-30-21

Page 26

Jun 15/2021D6-54446
